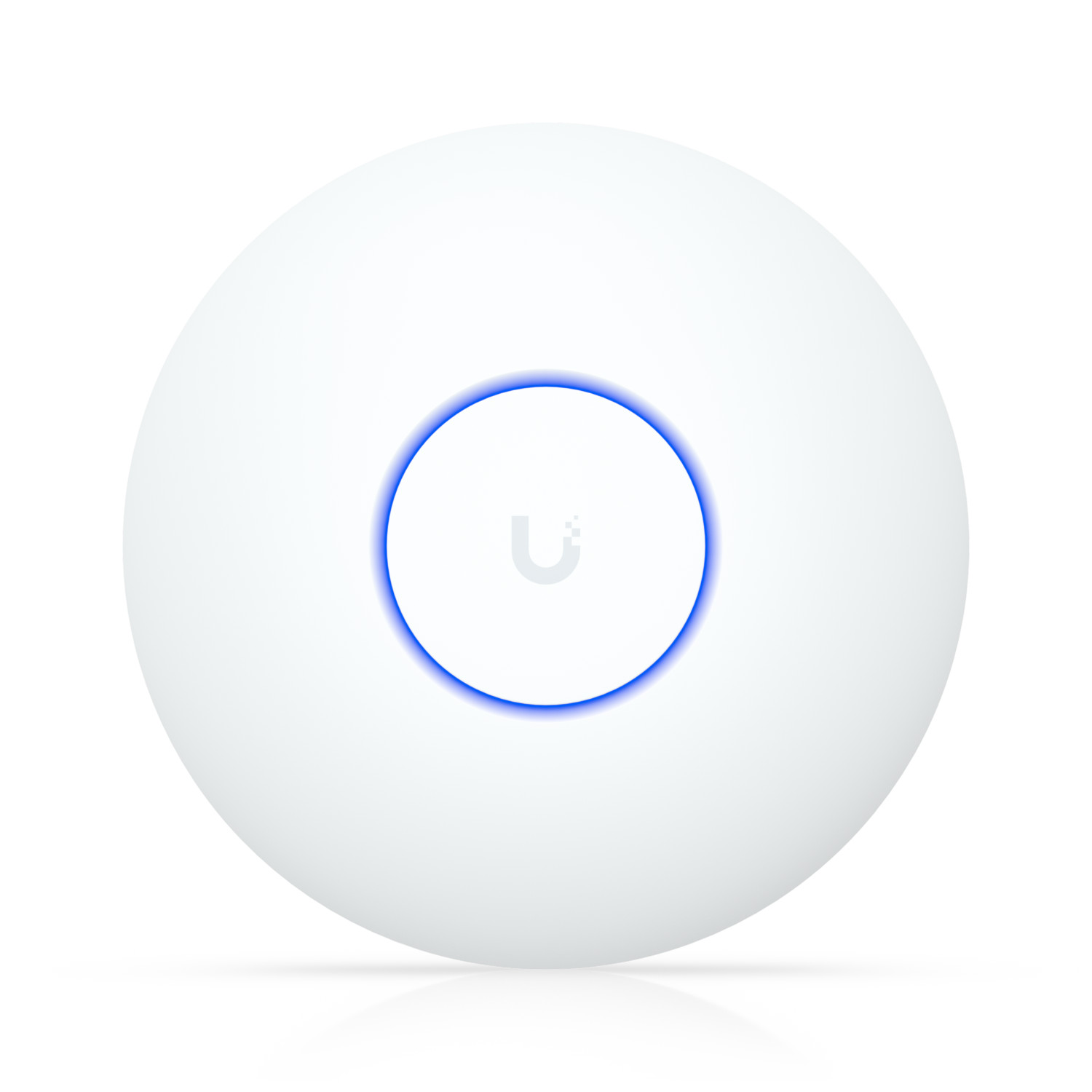

Access Point U7 Lite Model: U7-LITE Product Description
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Key Features
- WiFi 7
- 4 spatial streams
- 115 m² (1,250 ft²) coverage
- 200+ connected devices
- Powered using PoE
- 2.5 GbE uplink
Technical Specifications Max. Client Count200+Networking Interface(1) 2.5 GbE RJ45 portPower MethodPoEMax. Power Consumption13WDimensionsØ171.5 x 33 mm (Ø6.8 x 1.3")Weight313 g (11 oz)CertificationsCE, FCC, IC, SRRC, Anatel: 02143-25-08356802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11k Radio Resource Management (RRM)True802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11r Fast RoamingTrue802.11v BSS Transition ManagementTrueAdvanced Radio ManagementTrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-30 to 40° C (-22 to 104° F)Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)Client Device IsolationTrueCoverage Area115 m² (1,250 ft²)Custom Branding Landing PageTrueDynamic RADIUS-assigned VLANTrueEnclosure MaterialUV-stabilized polycarbonateExternal Portal Server SupportTrueGuest Network IsolationTrueManagementEthernetMax. BSSIDs8 per RadioMobile AppiOS™ version 10.20.2 and laterAndroid™ version 10.21.7 and laterMount MaterialUV-stabilized polycarbonate, galvanized steel (SGCC)MountingCeiling, Wall(Lite Mount Included)Passpoint (Hotspot 2.0)TruePassword AuthenticationTruePayment-Based AuthenticationTruePrivate Pre-Shared Key (PPSK)TrueRADIUS over TLS (RadSec)TrueSpatial Streams4Supported Voltage Range42.5—57V DC 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
