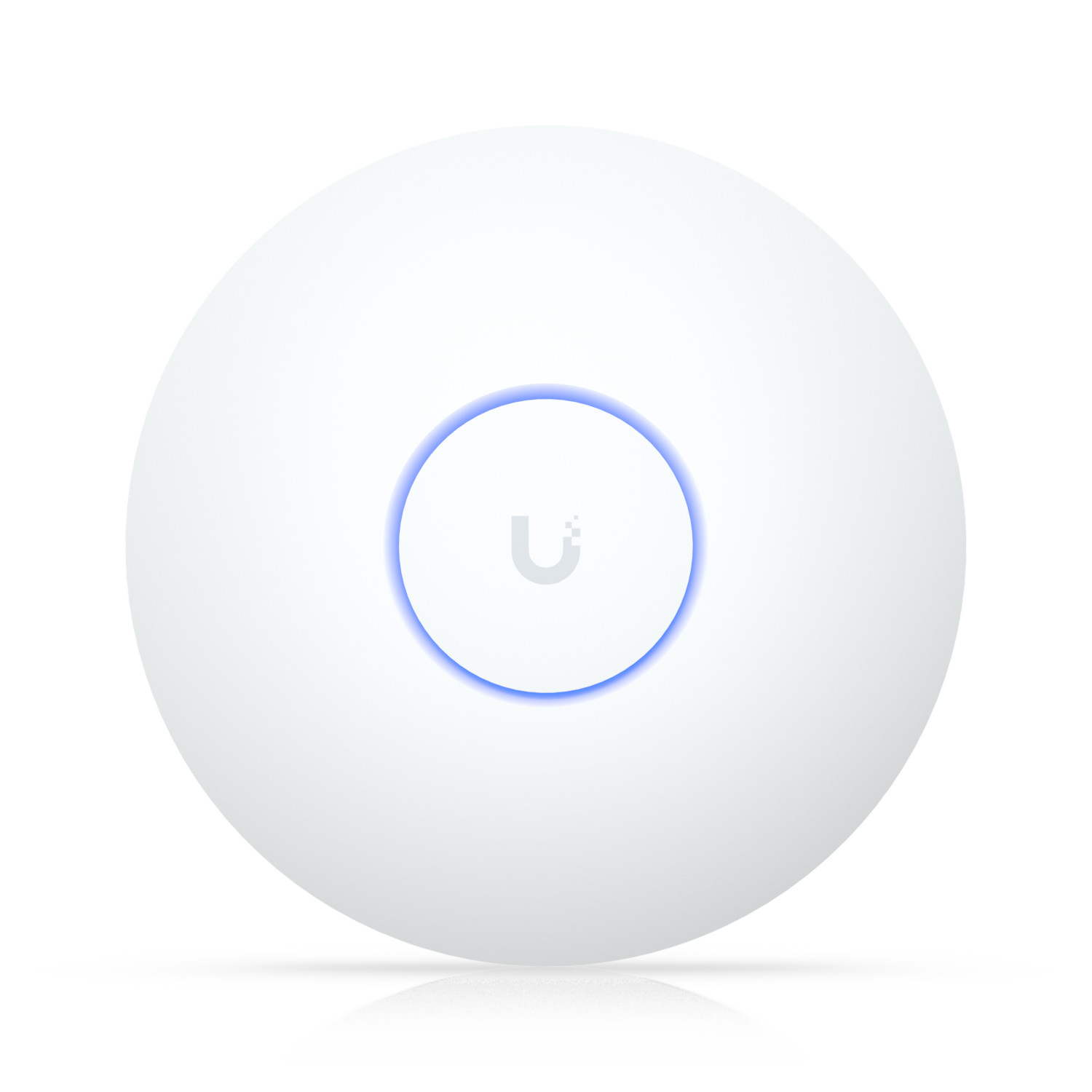

Access Point U7 Long-Range Model: U7-LR Product Description
Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Technical Specifications Max. Client Count300+Networking Interface(1) 2.5 GbE RJ45 portPower MethodPoEMax. Power Consumption14WDimensionsØ175.7 x 43 mm(Ø6.9 x 1.7")Weight448 g (15.8 oz)CertificationsCE, FCC, IC, SRRC, Anatel: 04071-25-08356802.11ac (WiFi 5)6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)802.11ax (WiFi 6)7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)802.11k Radio Resource Management (RRM)True802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)802.11r Fast RoamingTrue802.11v BSS Transition ManagementTrueAdvanced Radio ManagementTrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-30 to 50° C (-22 to 122° F)Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)Client Device IsolationTrueCoverage Area160 m² (1,750 ft²)Custom Branding Landing PageTrueDynamic RADIUS-assigned VLANTrueEnclosure MaterialPolycarbonate, aluminum alloyExternal Portal Server SupportTrueGuest Network IsolationTrueManagementEthernetMobile AppiOS™ version 10.20.2 and laterAndroid™ version 10.21.7 and laterMount MaterialPolycarbonate, galvanized steel (SGCC)MountingCeiling, Wall(Plastic Mounting Plate included)Passpoint (Hotspot 2.0)TruePassword AuthenticationTruePayment-Based AuthenticationTruePrivate Pre-Shared Key (PPSK)TrueRADIUS over TLS (RadSec)TrueSpatial Streams5Supported Voltage Range42.5—57V DCSystemWhite/Blue 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
