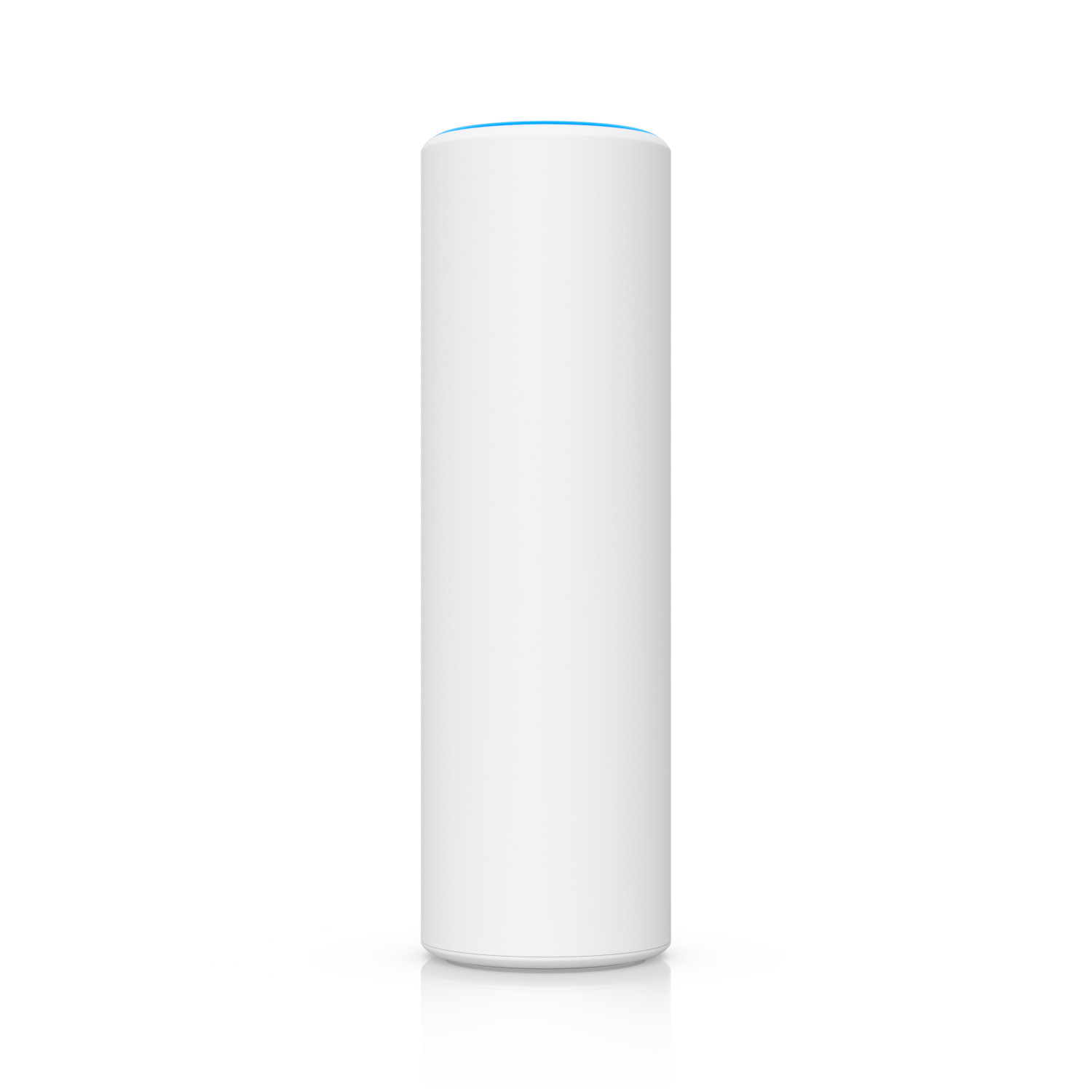

Access Point U7 Mesh Model: U7-MESH Product Description

Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.

Technical Specifications Max. Client Count200+WiFi StandardWiFi 7Coverage Area140 m² (1,500 ft²)Spatial Streams4Networking Interface(1) 2.5 GbE RJ45 portUplink2.5 GbEPower MethodPoEMax. Power Consumption13WDimensions⌀48.5 x 159.5 mm (⌀1.9 x 6.3")Weight313 g (11 oz)MountingWall, Pole, Table stand(Mounts included)NDAA CompliantYesCertificationsCE, FCC, ICAmbient Operating Temperature-30 to 60° C (-22 to 140° F)Ambient Operating Humidity5 to 95% noncondensing802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11r Fast RoamingYesBand SteeringYesChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)Enclosure MaterialUV-stabilized polycarbonateManagementEthernetMax. BSSIDs8 per RadioMobile AppUniFi iOS™: Version 10.32.1 and laterAndroid™: Version 10.35.1 and laterMount MaterialUV-stabilized Voltage Range42.5–57V DCSystemW/BUniFi NetworkVersion 10.1.85 and laterWeatherproofingIPX6 (Installed with the outdoor mount)WiFi7WiFi 7Wireless MeshingYes 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
