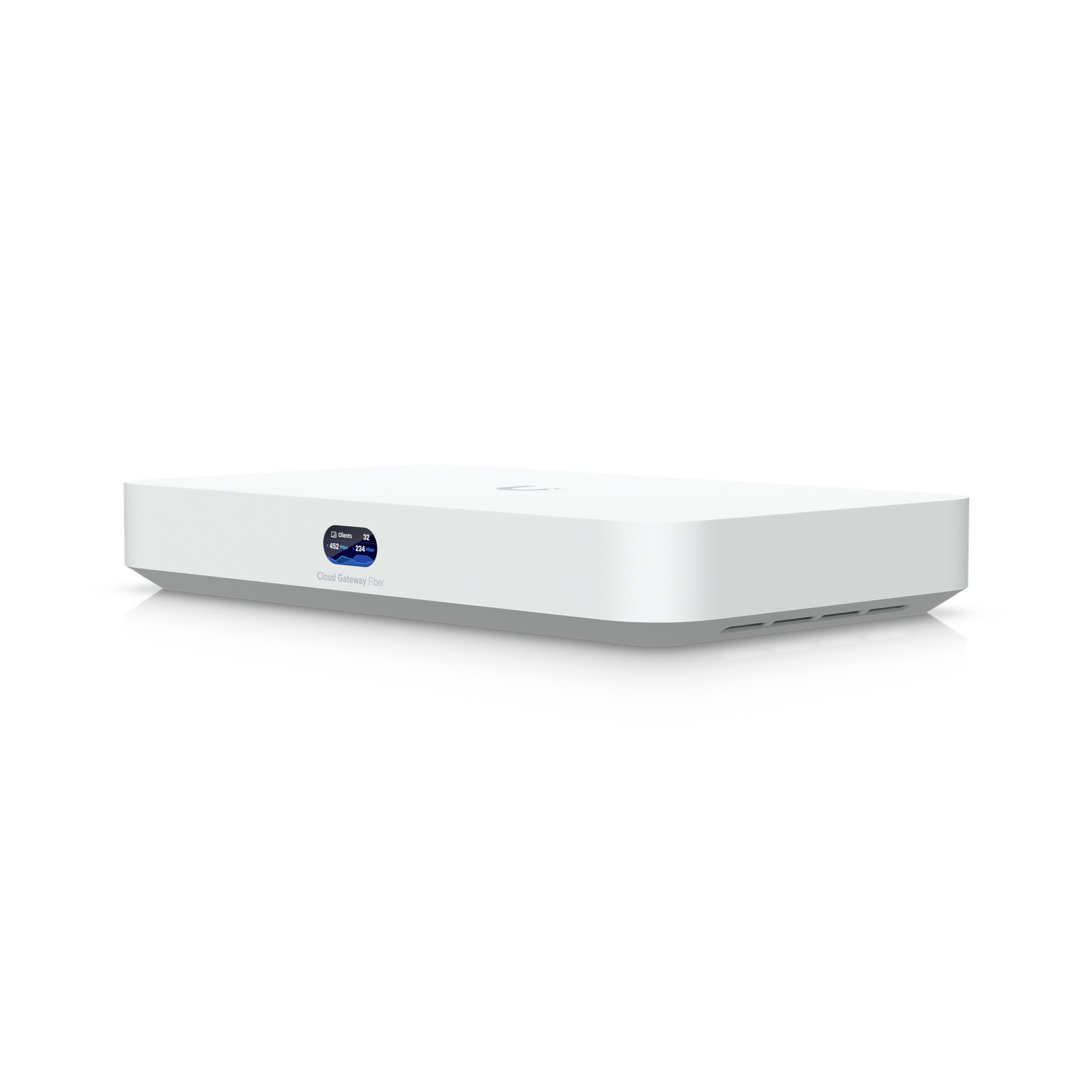

Cloud Gateway Fiber Model: UCG-FIBER Product Description
Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
Key Features
- Includes full UniFi application suite for device management
- Manages 50+ UniFi devices and 500+ clients
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
- NVMe SSD storage slot*
Technical Specifications IDS/IPS5 GbpsIDS/IPS Throughput5 GbpsMax. Client Count500ProcessorQuad-core ARM® Cortex®-A73 at 2.2 GHzSystem Memory3 GBPower Supply54V DC/1.1A (Adapter included)Power MethodDC jack (54V DC/1.1A)Max. Power Consumption29.4W (Excluding PoE output)Dimensions212.8 x 127.6 x 30 mm(8.3 x 5 x 0.5 ")WeightWithout SSD: 675 g (1.5 lb)With SSD: 734 g (1.6 lb)CertificationsCE, FCC, IC, SRRC, Anatel: 04395-25-0835610 GbE RJ451(10G/2.5G/1G)10G SFP+2(10G/1G)2.5 GbE RJ454(2.5G/1G/100M/10M)Additional Internet Failover with UniFi LTE BackupTrueAdvanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)TrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature0 to 40° C (32 to 104° F)Application-Aware Layer 7 FirewallTrueButton(1) Factory-resetDPI & Traffic IdentificationTrueDefault WAN Ports(1) 10G SFP+(1) 10 GbE RJ45ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVEnclosure MaterialPolycarbonateForm FactorCompact desktopHeat Dissipation100 BTU/hr (Excluding PoE Output)IDS/IPS Signatures55,000+ with CyberSecureIntegrated RADIUS ServerTrueInternet Quality and Outage ReportingTrueIntrusion Prevention (IPS/IDS)TrueLCM Display0.96" status displayMAC Address Table Size4,000Managed Access Hubs50Managed Cameras(15) HD(8) 2K(5) 4KManaged UniFi WAN Port Count6Multi-WAN Load BalancingTrueMulticast DNS (mDNS)TrueNVR StorageSelectable NVMe SSD up to 2 TBPoE Budget30W 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
