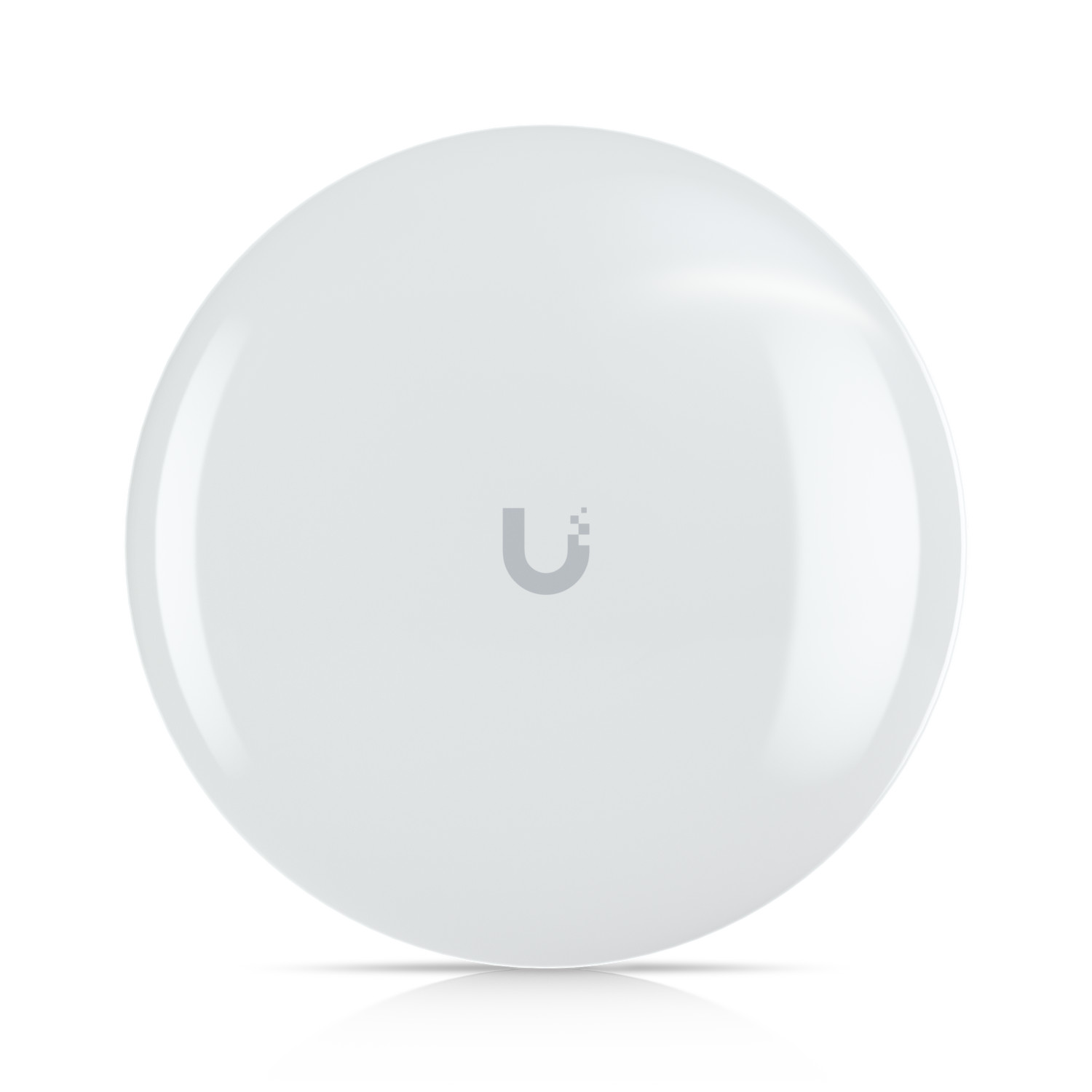

Device Bridge Pro Model: UDB-PRO Product Description
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Key Features
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*
- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit
Technical Specifications Networking Interface(2) GbE RJ45 portsPower Supply48V, 0.32A PoE adapter (Included)Power MethodPoEPoE+ (Required for PoE output)Max. Power Consumption9WDimensionsØ189.5 x 64.3 mm(Ø7.4 x 2.5")WeightDevice: 431 g (0.95 lb)With mount: 515 g (1.1 lb)CertificationsCE, FCC, IC5 GHz25 dBm802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)Ambient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-40 to 60° C (-40 to 140° F)AntennasInternalButton(1) Factory-resetChannel Bandwidth20/40/80 (MHz)Coverage Area5 km (3.1 mi)Enclosure MaterialUV-resistant polycarbonateManagement(1) PoE in (PoE output not used)(1) Passive PoE outputMax. Conducted TX Power25 dBm (Combined)Mount MaterialUV-stabilized polycarbonate, stainless steelMountingPole (Included)Mounting LocationsWall, poleOperating FrequencyUS/CA:U-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHzWorldwide:5150 - 5875 MHzPole Mount Diameter0.8–2.1" (20–53.1 mm)Spatial Streams2Supported Voltage Range42.5—57V DCSystemPower, (2) Ethernet status - main port/PoE out port, (4) signal strengthWeatherproofingIPX6WiFi StandardWiFi 5Wind Loading69 N at 200 km/h (15.5 lbf at 125 mph)Wireless SecurityWPA2 AES 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
