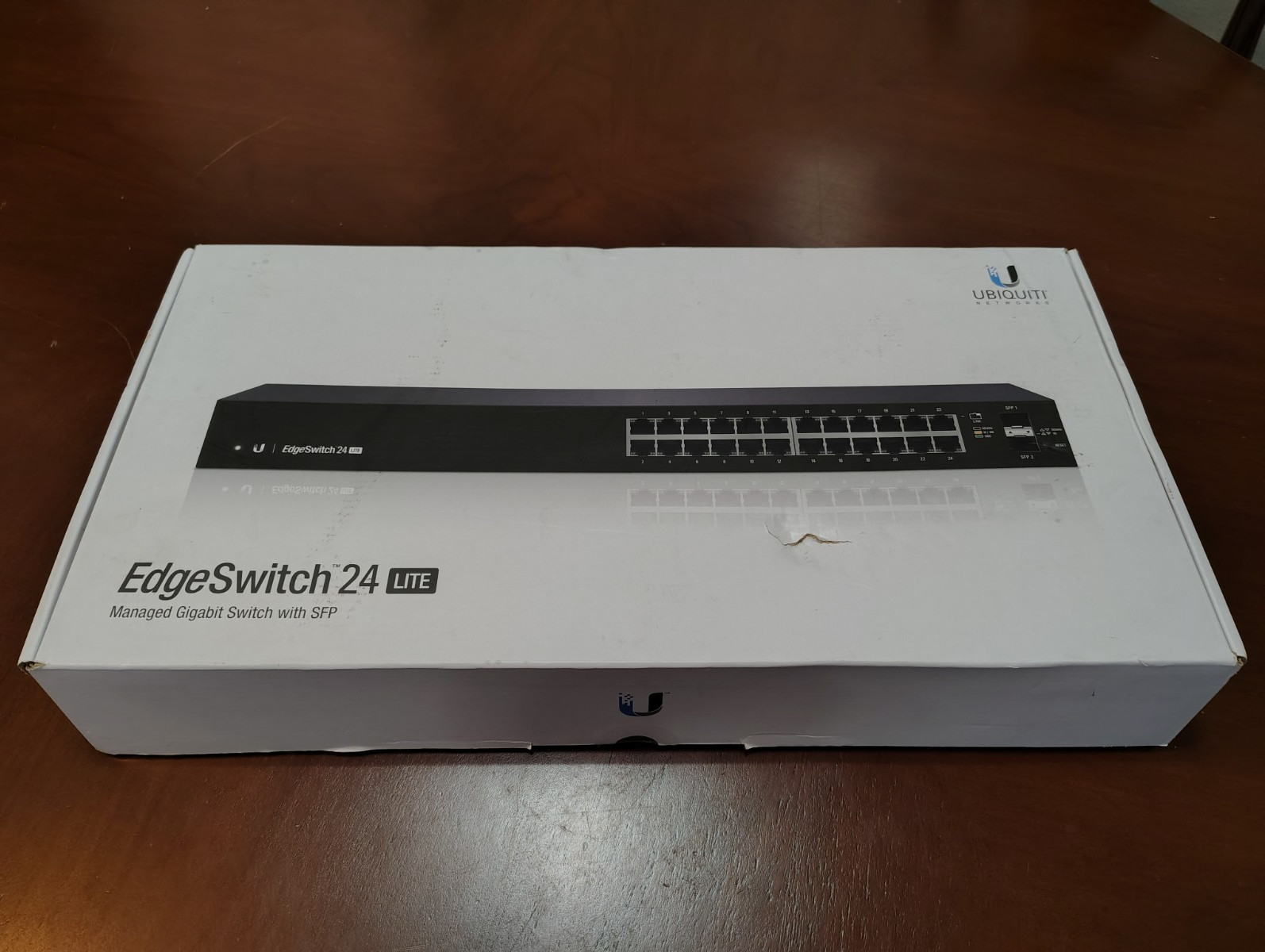

EdgeSwitch 24 Lite
Model: ES-24-Lite
• (24) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Maximum Power Consumption: 25W
• Rack- or Wall-Mountable
• DC Input Option (Redundant or Stand-Alone)Dimensions:
443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight:
Rack-Mount Brackets Included -2.6 kg (5.7 lb)
Rack-Mount Brackets Excluded -2.51 kg (5.53 lb)Total Non-Blocking Throughput - 26 Gbps
Switching Capacity - 52 Gbps
Forwarding Rate - 38.69 Mpps
Max. AC Power Consumption - 25W
Power Method:
AC - 100-240VAC/50-60 Hz, Universal Input
DC - 25W, 25 to 16V, with 2.5 mm DC Power Inline ConnectorPower Supply - AC/DC, Internal, 25W DC
LEDs Per Port:
Serial Console Port - N/A
RJ45 Data Ports - Speed/Link/Activity
SFP Data Ports - Speed/Link/ActivityNetworking Interfaces - (24) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports
Management Interface - (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications - CE, FCC, IC
Rackmount - Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
