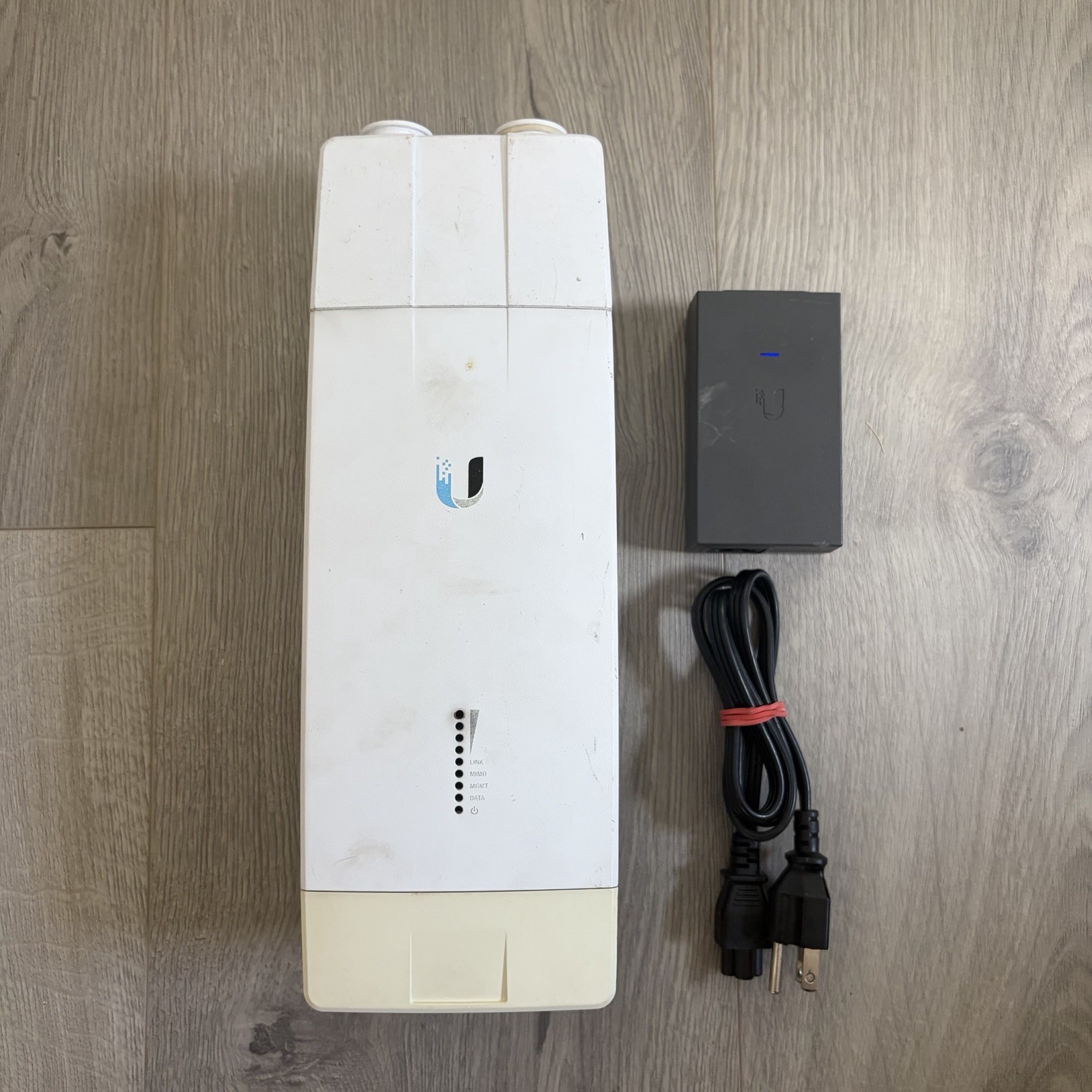

Condition Notes:These radios are in used condition and show typical signs of use, such as slight fading to the exterior casing and other blemishes and imperfections that do not impact the functionality. All units have been engineer tested and reset to factory settings to ensure easy adoption into existing deployments. This sale only comes with what you see pictured and nothing else! No duplexers, dishes, or mounting accessories are included in this sale! Only the radio and the POE injector/power supply come with this sale!
MechanicalDimensions327 x 112 x 86 mm (12.9 x 4.4 x 3.4")Weight2.3 kg (5 lb)MountingAF-11G35 mount compatibleHardwareNetworking interface(1) GbE RJ45 port
(1) 10/100 MbE RJ45 portPower methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Terminal block direct-wirePower supply50V DC, 1.2A gigabit PoE adapter (Included)Supported voltage range38-56V DCMax. power consumption36WRF connectors(4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
(2) N-Type Waterproof, One per DuplexerAmbient operating temperature-40 to 55° C (-40 to 131° F)CertificationsCE, FCC, ICNDAA throughput1.2+ GbpsMax. range300+ kmEncryption128-bit AESRFOperating frequency*10.7-11.7 GHz
*Depends on regional regulations.Max. conducted TX power*30 dBm
*Depends on regional regulations.Frequency accuracy± 1 ppmChannel bandwidth*3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable
Programmable Uplink and Downlink duty cycles
