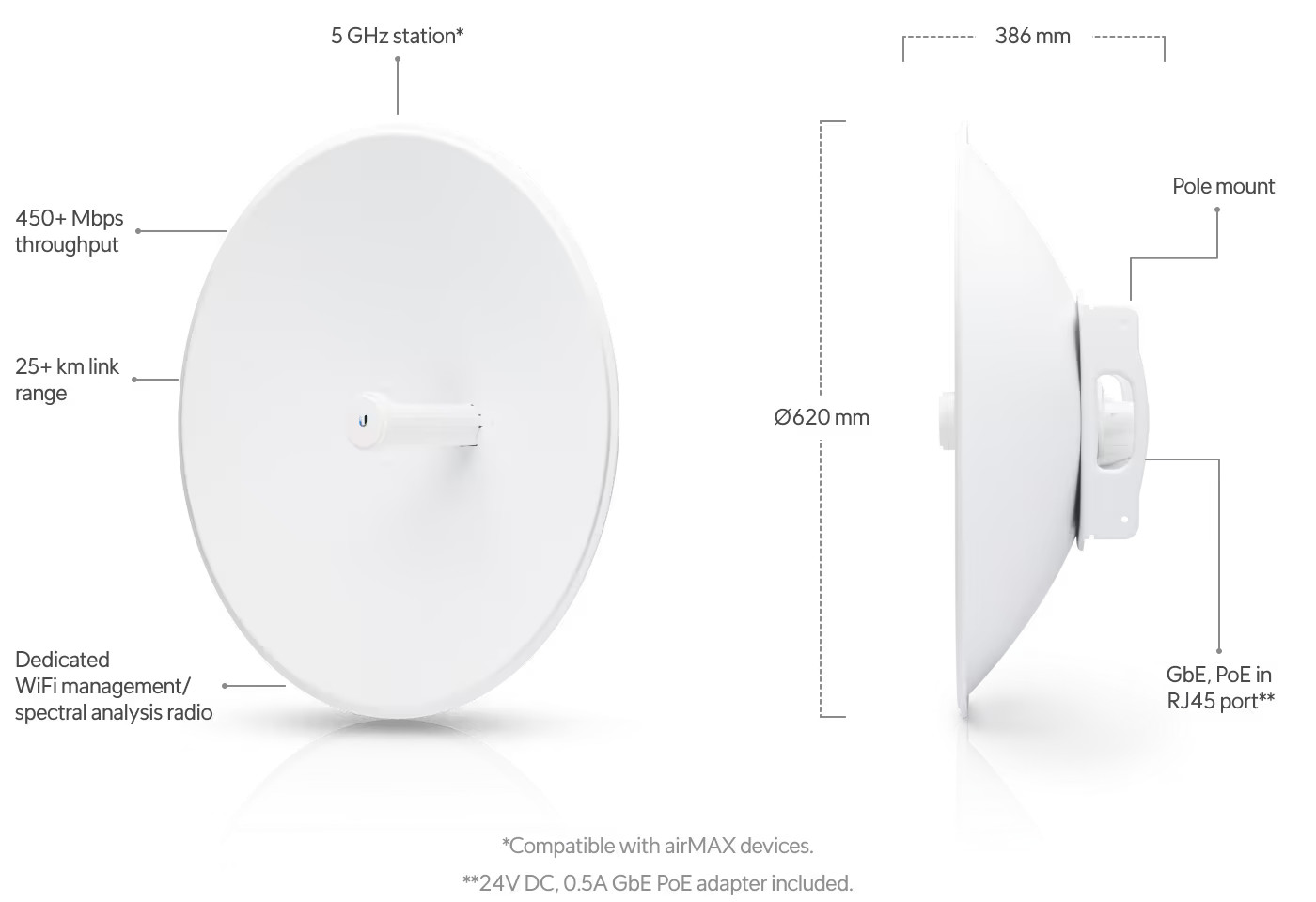

Technical Specifications Mechanical Dimensions 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") Weight 6.4 kg (14.1 lbs) Enclosure material Outdoor UV-Stabilized Plastic Mounting Pole mount kit (Included) Wind loading Without radome: 1510 N at 200 km/h (340 lbf at 125 mph)
With radome: 1830 N at 200 km/h (411 lbf at 125 mph) Wind survivability 200 km/h (125 mph) Hardware Networking interface (1) GbE RJ45 port Power method Passive PoE (Pairs 4, 5+; 7, 8 Return) Power supply 24V, 0.5A Gigabit PoE Max. power consumption 8.5W Supported voltage range 20-26V DC ESD/EMP protection Air/contact: ± 24 kV LEDs (1) Power, (1) LAN, (4) WLAN Signal strength LEDs Software-adjustable to correspond to custom RSSI levels RoHS compliance Yes Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5 Vibration test IEC 68-2-6 Temperature shock test IEC 68-2-14 UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4 Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5 Operating temperature -40 to 70° C (-40 to 158° F) Operating humidity 5 to 95% noncondensing Certifications FCC, IC, CE System Gain 29 dBi Max. VSWR 1.6:1 Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz Polarization Dual linear Operating Frequency (Mhz) Worldwide 5150 - 5875 MHz – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz
Radome is not included.***Additional shipping fees might be required if choosing multiple items.***
