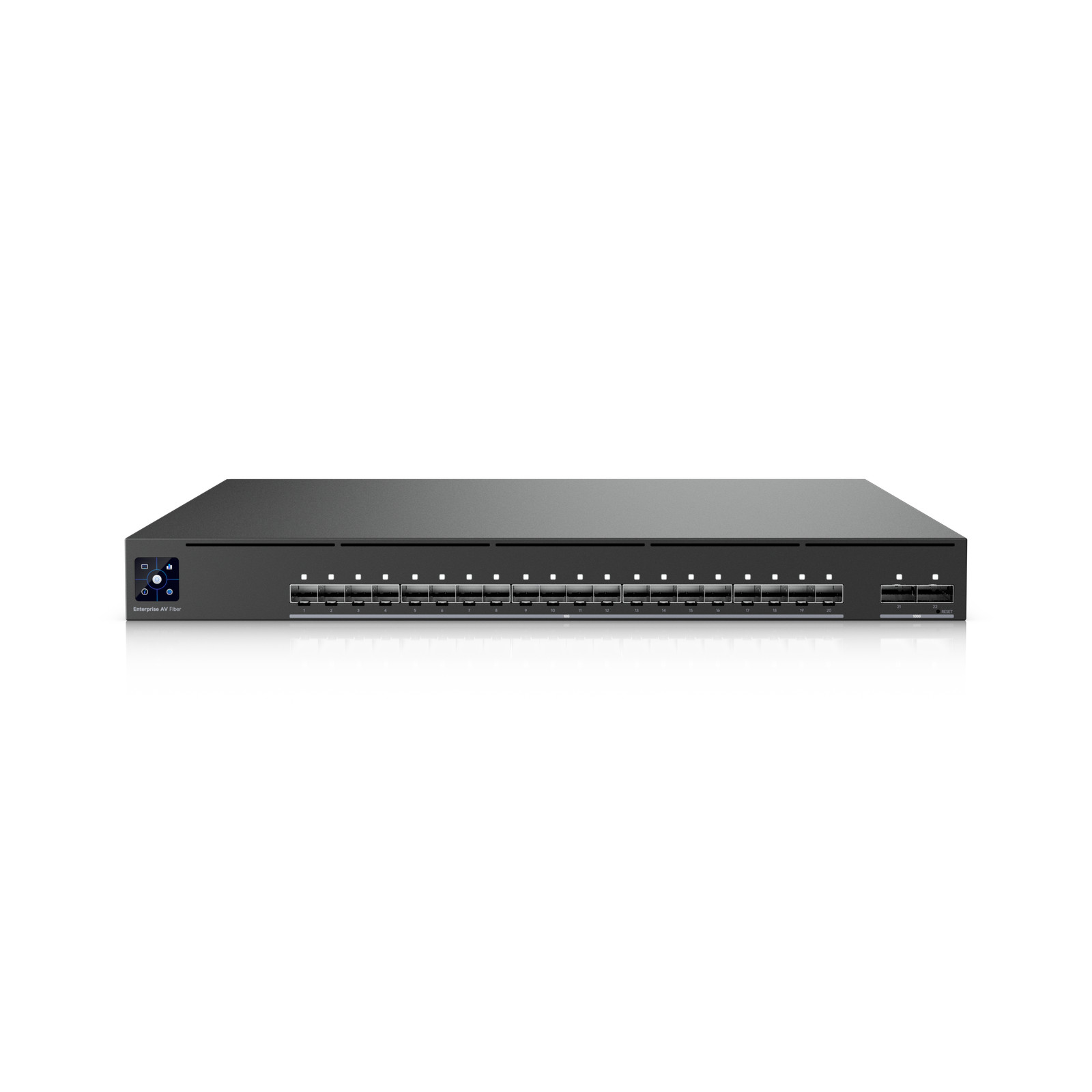

Switch Enterprise Audio/Video Fiber Model: EAV-FIBER Product Description

Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media syncing.

Technical Specifications Switching Capacity800 GbpsTotal Non-Blocking Throughput400 GbpsForwarding Rate595 Mpps1 GbE RJ451(1G/100M/10M)10G SFP+20(10G/1G)Console1Layer 3YesPower Supply(2) Hot-swappable AC/DC 150W power modulesPower Method(2) Universal input, 100–240V AC, 50/60 HzMax. Power Consumption150WSupported VLANs1,000MAC Address Table Size32,000Form FactorRack Mount (1U, Full-Depth)Dimensions442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7")WeightWithout mounting brackets: 8.95 kg (19.7 lb)With mounting brackets: 9.05 kg (20 lb)NDAA CompliantYesCertificationsCE, FCC, ICAmbient Operating Temperature-5 to 40° C (23 to 104° F)Ambient Operating Humidity10 to 90% noncondensing100G QSFP282(100G/40G)802.1X ControlYesESD ProtectionAir: ± 12KV, contact: ± 8KVEnclosure MaterialSGCC steelEtherlighting™YesFan Method(4) Hot-swappable fan modulesFlow ControlYesHeat Dissipation512 BTU/hrIGMP SnoopingYesIPv4256Jumbo FramesYesLACP Port AggregationYesLCM Display1.3" touchscreenLoop ConsoleMount MaterialSGCC steelPTPv2YesPacket Buffer Size8 MBPort MirroringYesPower Input Method(2) AC input, Hot-swappable power modulesQoS (DSCP)YesRedundancy(2) Hot-Swappable PSUs(4) Hot-Swappable FansSMA1STP & RSTPYesStorm ControlYesSupported Rack Depth482.6 mm (19") four-post racksPosts depths ranging from 650 to 1,000 mm (25.6–39.4”)Supported Voltage Range100–240V AC 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
