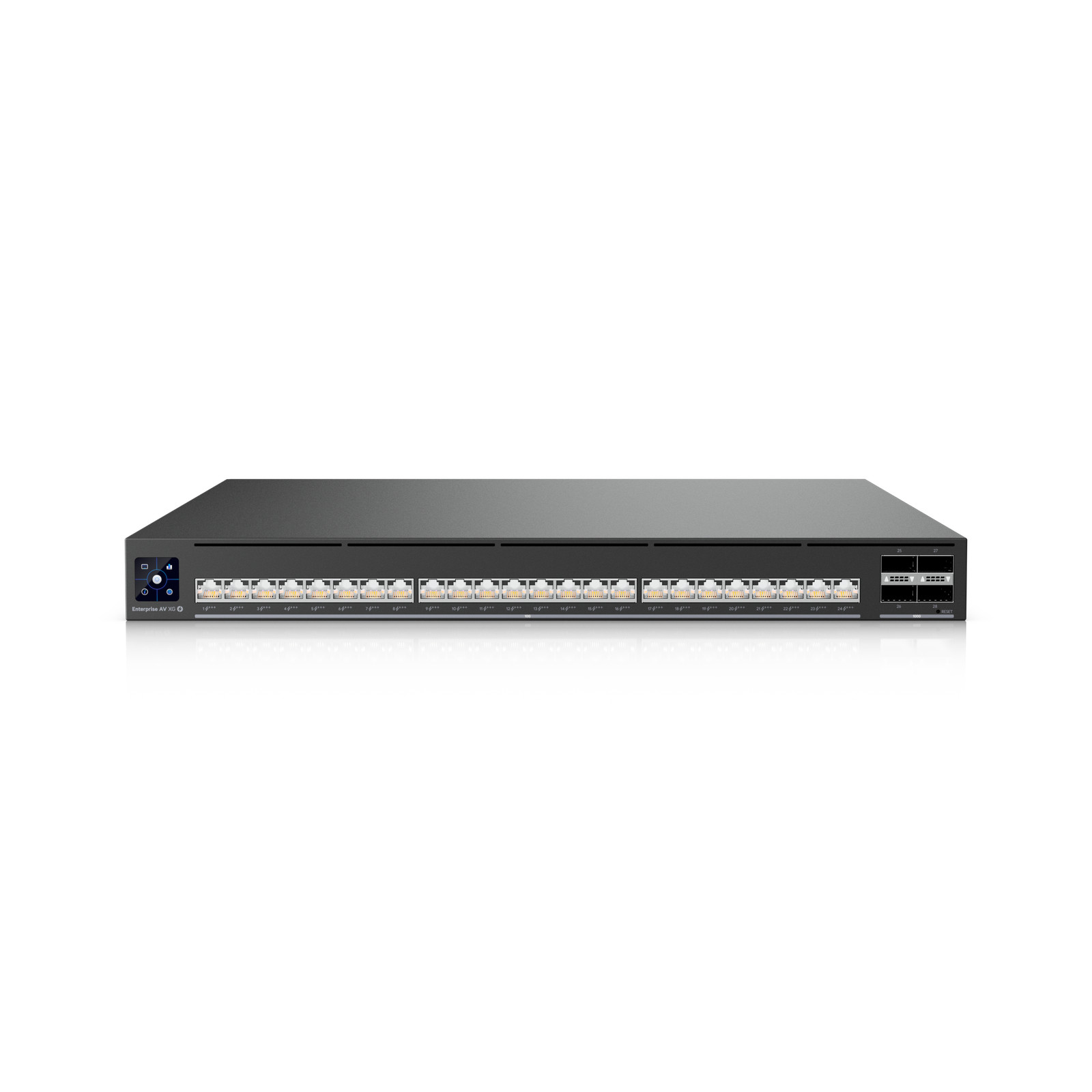

Switch Enterprise Audio/Video XG 24 PoE Model: EAV-XG-24-POE Product Description
Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media syncing.
Technical Specifications Switching Capacity1,280 GbpsTotal Non-Blocking Throughput640 GbpsForwarding Rate810 Mpps1 GbE RJ451(1G/100M/10M)10 GbE RJ4524 (All PoE Availability200-240V AC Shared Mode: 2,150W with (2) 1,200W modules100-120V AC Shared Mode: 1,850W with (2) 1,200W modules200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules100-120V AC Redundant Mode: 850W with (2) 1,200W modulesMax. PoE OutputUp to PoE+++Layer 3YesPower Supply(2) Hot-swappable AC/DC 1,200W power modulesPower Method(2) Universal input, 100–240V AC, 50/60 HzMax. Power Consumption150W (Excluding PoE Output)2,400W (Including PoE Output)Supported VLANs1,000MAC Address Table Size32,000Form FactorRack Mount (1U, Full-Depth)Dimensions442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7")WeightWithout mounting brackets: 9.85 kg (21.7 lb)With mounting brackets: 9.95 kg (21.9 lb)NDAA CompliantYesCertificationsCE, FCC, ICAmbient Operating Temperature-5 to 40° C (23 to 104° F)Ambient Operating Humidity10 to 90% noncondensing100G QSFP284(100G/40G)802.1X ControlYesESD ProtectionAir: ± 2KV, contact: ± 8KVEnclosure MaterialSGCC steelEtherlighting™YesFan Method(4) Hot-swappable fan modulesFlow ControlYesHeat Dissipation512 BTU/hr (Excluding PoE Output)IGMP SnoopingYesIPv4256Jumbo FramesYesLACP Port AggregationYesLCM Display1.3" touchscreenLoop ConsoleMount MaterialSGCC steelPTPv2YesPacket Buffer Size8 MBPoE15.4WPoE+30WPoE++60WPoE+++90WPort MirroringYesPower Input Method(2) AC input, Hot-swappable power modulesQoS (DSCP)YesRedundancy(2) Hot-Swappable PSUs(4) Hot-Swappable FansSMA1STP & RSTPYesStorm ControlYesSupported Rack Depth482.6 mm (19") four-post racksPosts depths ranging from 650 to 1,000 mm (25.6–39.4”)Supported Voltage Range100–240V AC 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
