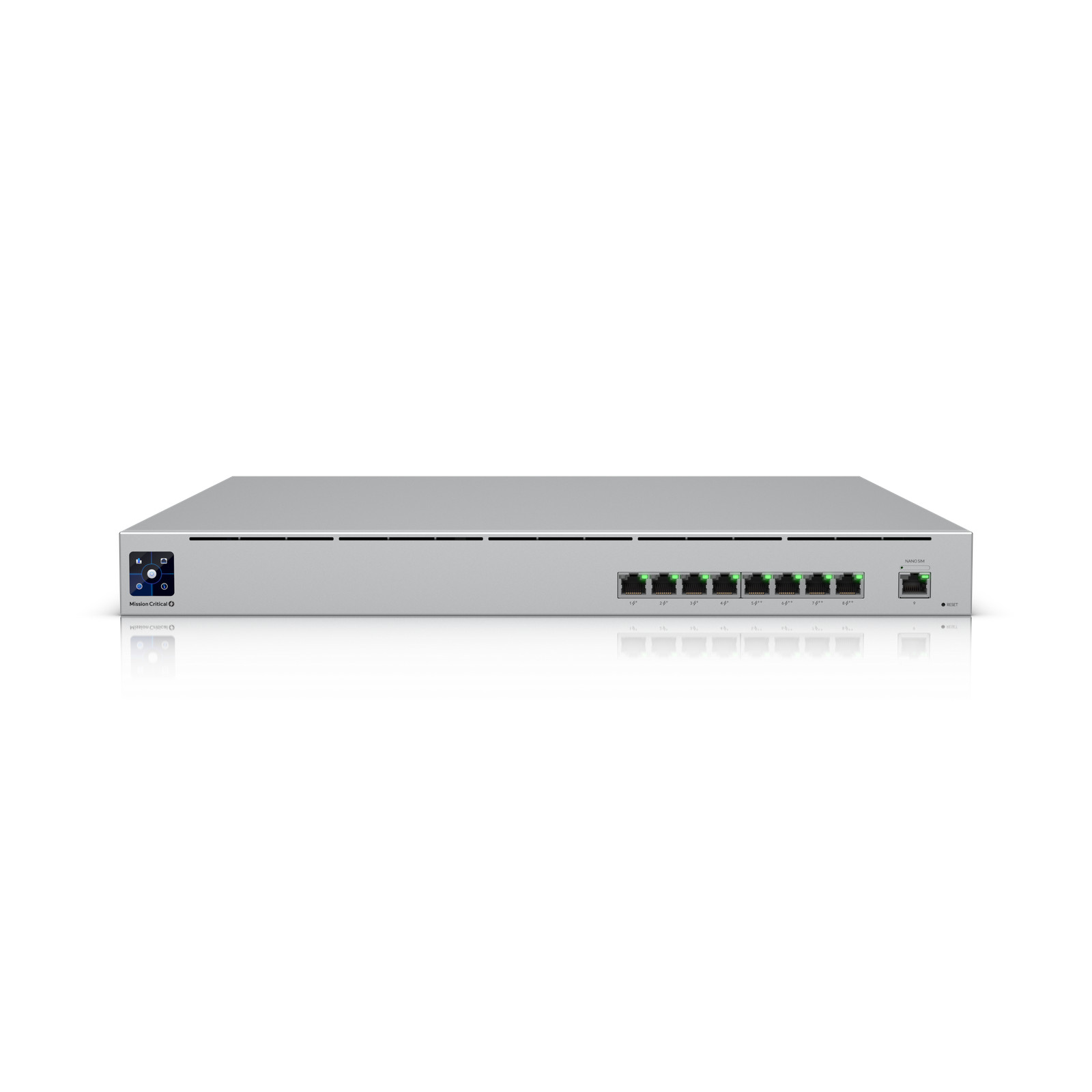

UPS PoE Switch Mission Critical Model: USW-MISSION-CRITICAL Product Description
A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
Key Features
- (4) GbE PoE+, (4) GbE PoE++ ports
- (1) GbE port
- (2) 110V AC outputs; 120W total PoE available
- Battery backup power system
- Internal battery 368Wh
Technical Specifications Power SupplyAC/DC, internal, 240WPower MethodUniversal input, 100—240V AC, 50/60 HzExternal battery input, 48V DCMax. Power Consumption50W (Excluding PoE Output)240W (Including PoE Output and AC Output)Dimensions442 x 480 x 44 mm(17.4 x 18.9 x 1.7")WeightWithout mount: 9 kg (19.9 lb)With mount: 9.2 kg (20.3 lb)CertificationsCE, FCC, IC, Anatel: 06679-25-083561 GbE RJ459 (4 PoE+; 4 PoE++)(1G/100M/10M)Advanced IGMP Configuration (Querier, Fast Leave, Router Port)TrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-5 to 40° C (23 to 104° F)DHCP Snooping & GuardingTrueESD ProtectionAir/contact: ± 24kVEnclosure MaterialSGCC steelForm FactorRack mount (1U)Forwarding Rate13 MppsHeat Dissipation170.6 BTU/hr (Excluding PoE Output)IP-Based ACLs & Network IsolationTrueIPv4128LACP Port AggregationTrueLCM Display1.3" touchscreenMAC128MAC Address BlockingTrueMAC Address Table Size8,000MAC-Based ACLs & Device IsolationTrueMAC-Based Port RestrictionTrueManagementEthernetARMax. PoE OutputUp to PoE++Mount MaterialSGCC steelMulticast & Broadcast Rate LimitingTruePacket Buffer Size0.5 MBPoE+32WPoE++64WPower Input MethodAC inputDC input (Backup)RedundancyBattery Power BackupSupported Rack Depth482.6 mm (19") four-post racksPosts depths ranging from 700 to 1,000 mm (27.6–39.4”)Supported VLANs1,000 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
