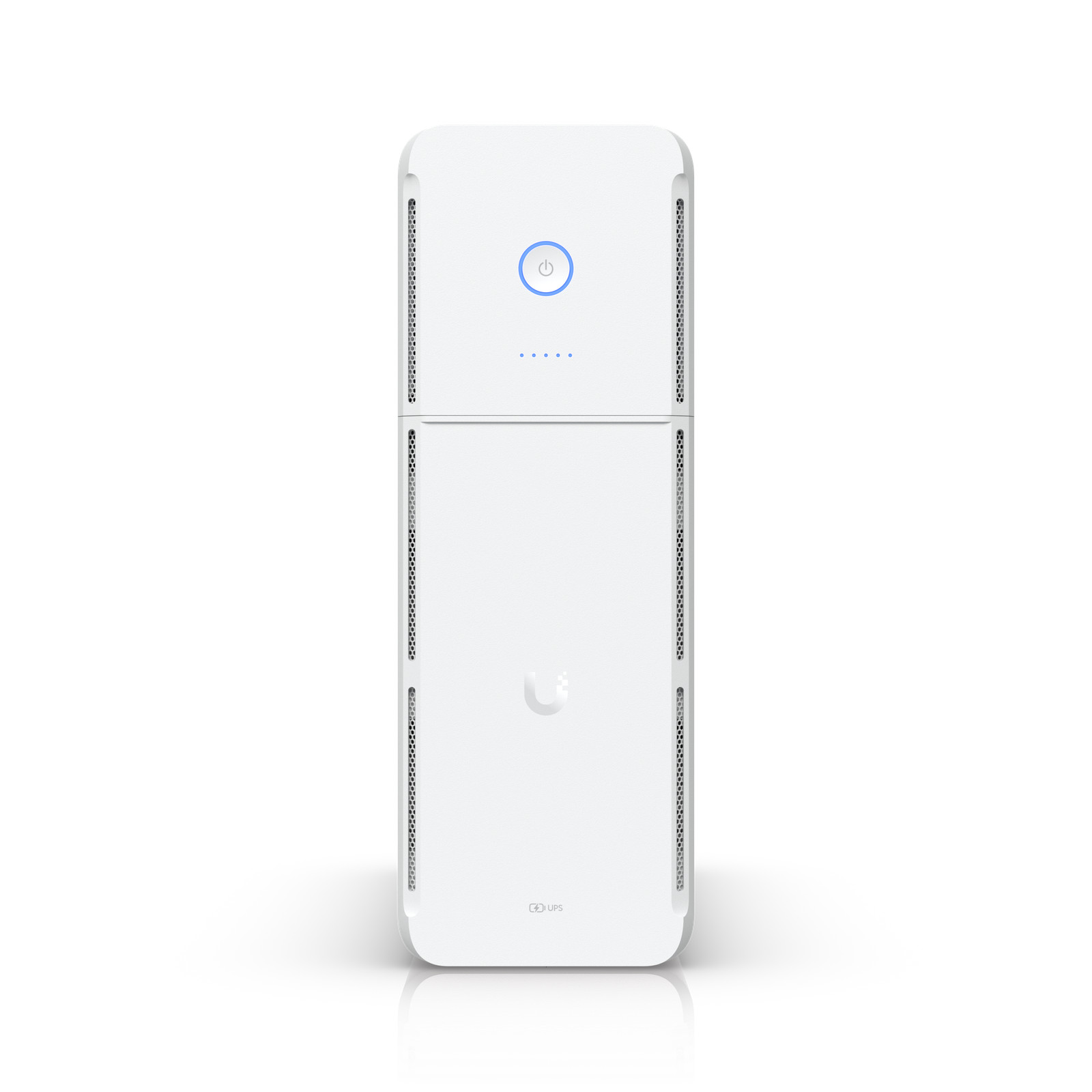

UPS Tower Model: UPS-Tower-US Product Description
UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, NUT compatibility for third-party devices.
Technical Specifications Networking Interface(1) 100/10 MbE port for network connection(2) GbE ports for surge in/outPower Method(1) TN system, 120V AC, 12A Max., 50/60 HzPower(1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord(5) Battery backup/surge protection: NEMA 5‑15R(5) Surge protection: NEMA 5‑15RForm FactorDesktopDimensions288 x 99 x 280.5 mm(11.3 x 3.9 x 11")Weight8.17 kg (18 lb)NDAA CompliantYesCertificationsFCC, IC, UL 1778, CSA C22.2 No. 107.3Ambient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity0 to 95% noncondensingAC Voltage Regulation±10% (Battery mode)Ambient Storage Temperature-20 to 50° C (-4 to 122° F)Battery Charging Time6-8 hours recovery to 90% capacityBattery IndicatorAll off: 0%(1) Steady blue: battery 1–19%(2) Steady blue: battery 20–39%(3) Steady blue: battery 40–59%(4) Steady blue: battery 60–79%(5) Steady blue: battery 80–100%Battery Type(1) Lead Acid 12V, 9AhButtons(1) Power(1) Factory resetCapacity1,000VA/600WEnclosure MaterialPolycarbonate and acrylonitrile butadiene styrene blendFrequency RangeAC mode: 50/60 Hz ±5 Hz (Auto sensing)Battery mode: 60 Hz ±1 HzInput Voltage Range89–145V ACManagementEthernetNominal Input Voltage120V ACOperating Altitude3,000 m (1.9 mi)Operating EnvironmentPollution Degree 2Output Short-Circuit CurrentIpeak 334.8A Irms 68.2AOutput Voltage120V ACOverload at Battery Mode110% shutdown in 5 sec120% shutdown immediatelyOverload at On-Line Mode110% 5 min go to fault120% go to fault immediatelyRuntimeFull load: 2 minHalf load: 7 minShort Circuit Protection at On-Line ModeBreaker, 250V AC, 15AStatusOff: device not turned onFlashing white: initializing / factory defaultSteady white: waiting for adoptionSteady blue: device adoption and workingFlashing blue: battery modeAlternating white/blue: firmware upgradingRapid flashing blue: locateSteady red: warningFlashing red: low batteryTransfer Time6 ms typical; 10 ms max. (Battery mode)TypeLine interactiveWave FormSimulated sine wave (Battery mode)WeatherproofingIP20 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
