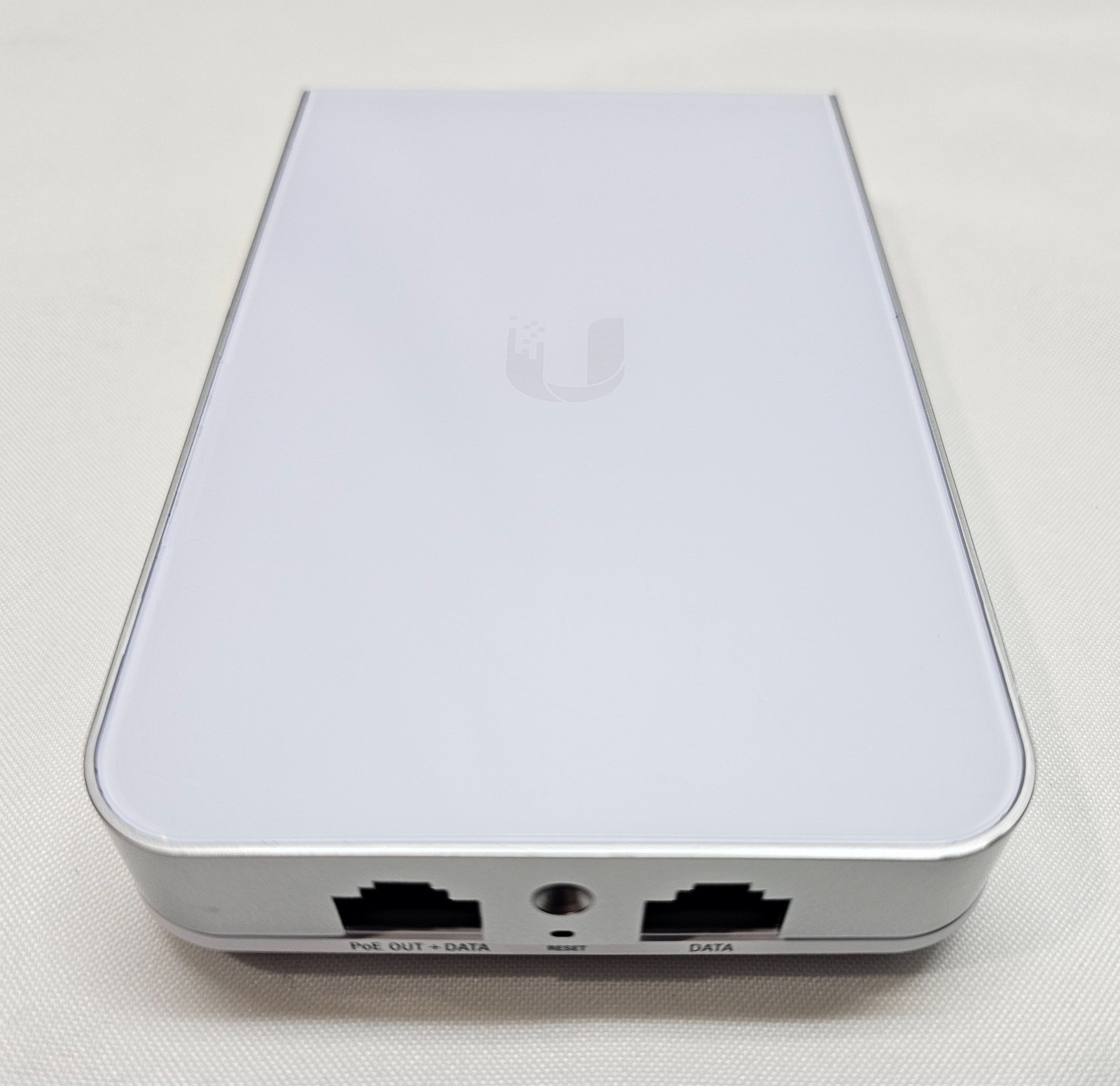

Condition Notes:These units are in good overall condition and show normal signs of indoor use. Certain units will contain blemishes or scrapes to the exterior casing or slight paint overspray from being mounted indoors over an in wall utility box. Unit condition will vary but these units are in used condition and will show normal signs of use from their previous environment that do not impact the usability of the wireless functions of these access points. They have been tested and reset to factory default settings to ensure easy adoption into existing deployments. You only get what you see in the pictures and nothing else! No additional screws or mounting accessories are included in this sale! Only the access point itself!
Dimensions139.7 x 86.7 x 25.8 mm(5.5 x 3.4 x 1")WiFi StandardWiFi 5Spatial Streams4Coverage Area25 m² (270 ft²)Max. Client Count250+UplinkGbEMountingWall(Mount Included)Power MethodPoEPoE+ (Required for PoE passthrough)MIMO5 GHz2 x 2 (DL MU-MIMO)2.4 GHz2 x 2 (DL MU-MIMO)Max. Data Rate5 GHz867 Mbps (BW80)2.4 GHz300 Mbps (BW40)Antenna Gain5 GHz2 dBi2.4 GHz1 dBiMax. TX Power5 GHz20 dBm2.4 GHz20 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11ac (WiFi 5)6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS23, HT 20/40)Wireless Meshing✓Band Steering✓802.11v BSS Transition Management✓802.11r Fast Roaming✓802.11k Radio Resource Management (RRM)✓Advanced Radio Management✓Passpoint (Hotspot 2.0)✓Captive Hotspot PortalCustom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓Guest Network Isolation✓Private Pre-Shared Key (PPSK)✓WiFi Speed Limiting✓Client Device Isolation✓WiFi Schedules✓RADIUS over TLS (RadSec)✓Dynamic RADIUS-assigned VLAN✓Max. Power Consumption7W (Excluding PoE output)Supported Voltage Range44–57V DCNetworking Interface(3) GbE RJ45 portsWeight200 g (7.1 oz)ManagementEthernetEnclosure BandwidthHT 20/40, VHT 20/40/80 (MHz)NDAA Compliant✓CertificationsCE, FCC, IC, Anatel: 04399-18-08356Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzWorldwide:2400 - 2483.5 MHz5150 - 5850 MHzAmbient Operating Temperature-10 to 50° C (14 to 122° F)Ambient Operating Humidity5 to 95% noncondensingApplication RequirementsUniFi NetworkVersion 6.0.45 and later
