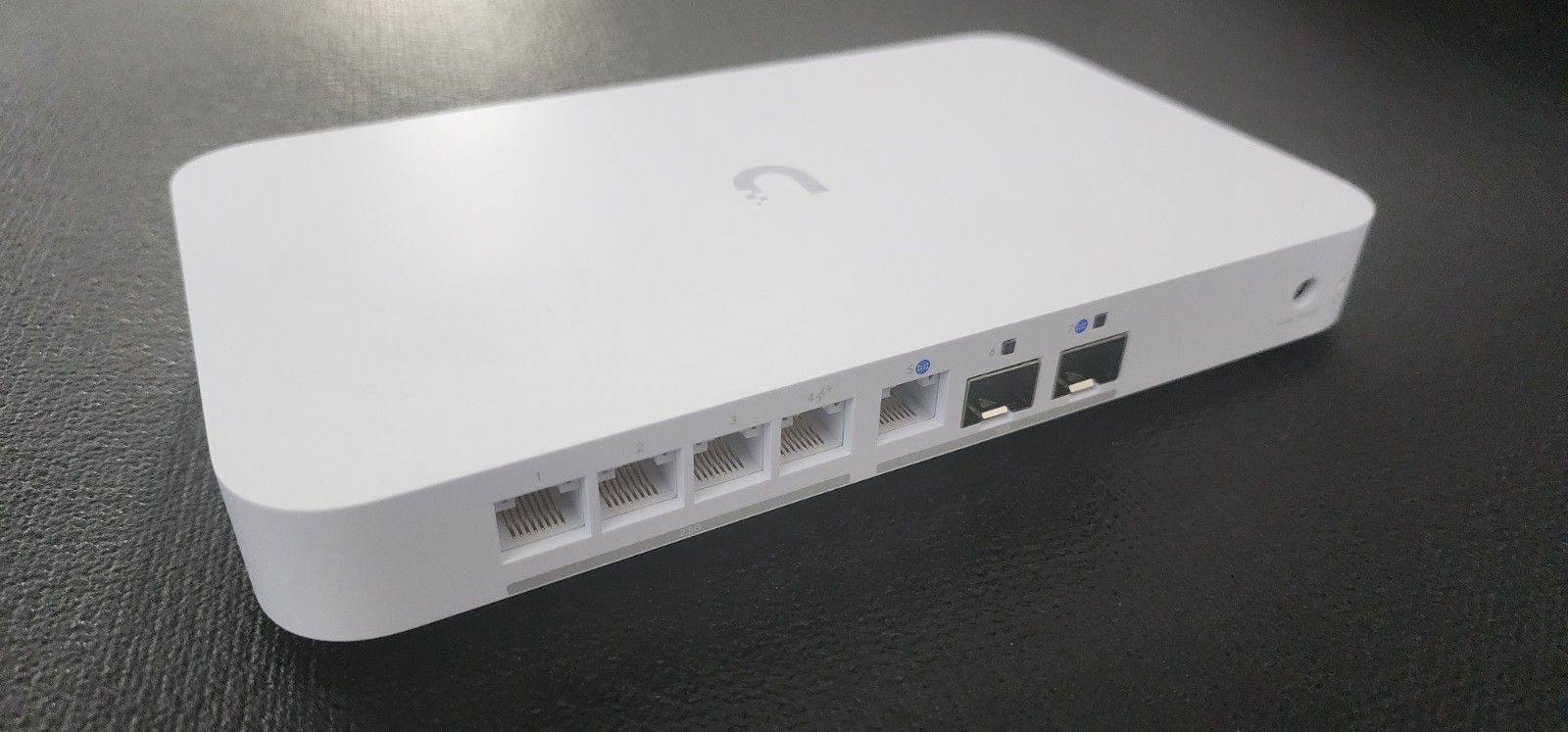

Ubiquiti UniFi Gateway Fiber UXG-Fiber
**Please Note:UXG Fiber model, don't confuse this with the cloud version.Make sure you are aware this is NOT the cloud version. This must be used with a cloud key, your own self hosting server or UniFi's hosting or third party hosting solution.**
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ portDimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")Max. WAN Port Count6Default WAN Ports(1) 10G SFP+(1) 10 GbE RJ45Port Layout2.5 GbE RJ454(2.5G/1G/100M/10M)10 GbE RJ451(10G/2.5G/1G)10G SFP+2(10G/1G)IDS/IPS Throughput5 GbpsForm FactorCompact desktopSecurityStateful Firewall✓Application-Aware Layer 7 Firewall✓DPI & Traffic Identification✓Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)✓Content Filtering✓Intrusion Prevention (IPS/IDS)✓Ad Blocking✓IDS/IPS Signatures55,000+ With CyberSecureVPN & SD-WANLicense-Free SD-WAN✓Site-to-Site VPNSite Magic✓IPsec✓OpenVPN✓VPN ServerTeleport Zero-Configuration VPN✓WireGuard✓OpenVPN✓L2TP✓VPN Load Balancing✓Dynamic RoutingOSPF✓Advanced QoS✓Multicast DNS (mDNS)✓Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)✓Integrated RADIUS Server✓RADIUS over TLS (RadSec)✓Additional Internet Failover with UniFi LTE Backup✓Internet Quality and Outage Reporting✓MAC Address Table Size4,000Virtual Network Override✓All Traffic Flows✓HardwarePoE Budget30WMax. PoE Wattage per Port by PSEPoE+30WVoltage Range PoE Mode50—57VMax. Power Consumption25W (Excluding PoE output)Power MethodDC jack (54V DC/1.1A)Power Supply54V DC/1.1A(Adapter included)Supported Voltage Range100—240V ACHeat Dissipation85 BTU/hr (Excluding PoE output)ProcessorQuad-core ARM® Cortex®-A73 at 2.2 GHzSystem Memory2 GBWeight605 g (1.3 lb)Enclosure Factory-resetESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVAmbient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity5 to 95% noncondensingNDAA Compliant✓CertificationsCE, FCC, IC, Anatel: 04395-25-08356
