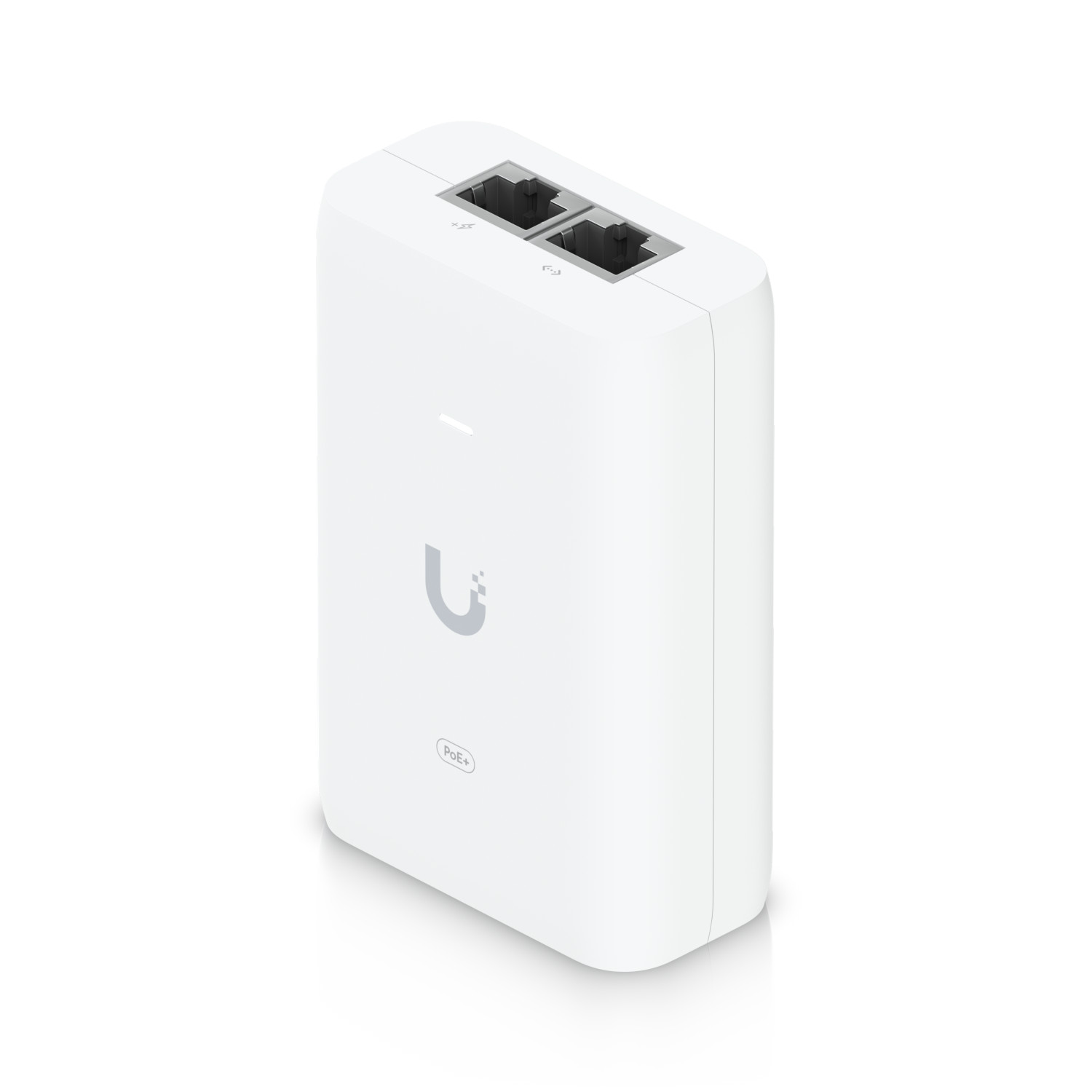

UniFi PoE+ Adapter (30W) Model: U-POE-PLUS Product Description
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Key Features
- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
Technical Specifications Dimensions93 x 62 x 35 mm (3.7 x 2.4 x 1.4")Weight156 g (5.5 oz)NDAA CompliantYesCertificationsCE, FCC, IC, UL, CCCAmbient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity10 to 95% noncondensing2-pair PoweringPins 4, 5 (+) and 7, 8 (-)AC ConnectorIEC-320 C6Ambient Storage Temperature-30 to 70°C (-22 to 158° F)Clamping Protection11V Data, 60V powerData In / PoERJ45 Shielded SocketEfficiency87%Input Current0.75A Max.Inrush Current<100A peak at 26°CLine Regulation≤ 3%Load Regulation≤ 5%Max. Surge Discharge1500A (8/20 μs) powerOutput Ripple1% Max.Output Voltage48V DC @ 0.65APeak Pulse Current36A (10/1000 μs) dataPower CableIncludedRated Voltage100–240V AC at 50/60HzResponse Time<1 nsShunt Capacitance<5 pF dataSurge ProtectionDifference and common modeSwitching Frequency70 kHz Max. 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
