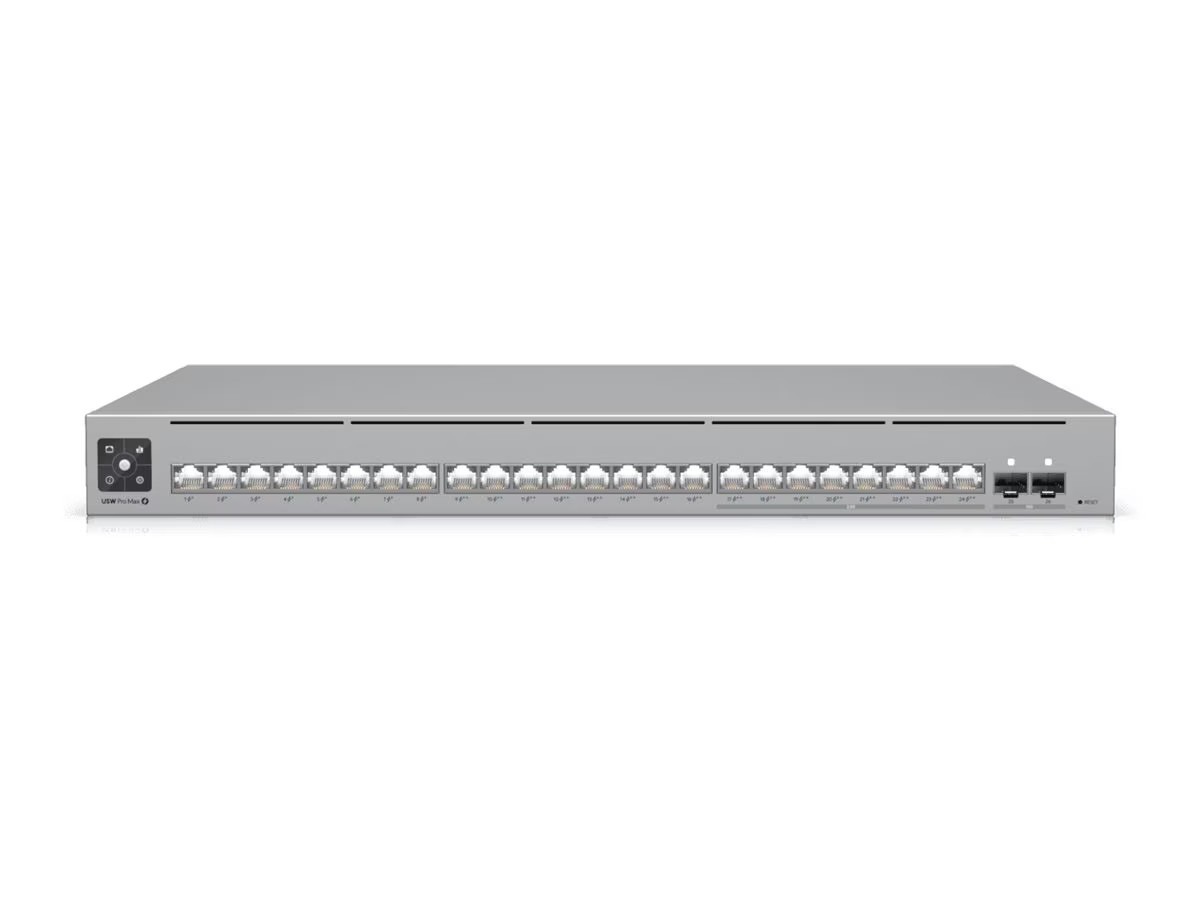

Ubiquiti UniFi Pro Max 24 PoE USW-Pro-Max-24-PoE 24-Port 2.5GbE 400W L3 Switch
UPC: 810084692608
MPN: USW-Pro-Max-24-PoE
Brand: Ubiquiti
Type: Ethernet Switch
Model: UniFi Pro Max 24 PoE
Number of LAN Ports: 24
Ethernet Technology: 2.5 Gigabit Ethernet (2.5GbE)
Network Management Type: Fully Managed
Form Factor: Rack Mountable
Maximum LAN Data Rate: 10 Gbps
Product Line: UniFi
Network Connectivity: Wired-Ethernet (RJ-45)
Network Type: Ethernet
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- USW-Pro-Max-24-PoE
- USW-Pro-Max-24-PoE-US
- USW-Pro-Max-24-PoE-EU
- USW-Pro-Max-24-PoE-UK
- USW-Pro-Max-24-PoE-JP
- USW-Pro-Max-24-PoE-AU
- 810084692608
- 810084692714
- 810084692622
- USW-Pro-Max-24
- USW-Pro-Max-48-PoE
- USW-Pro-Max-16-PoE
- USW-Pro-24-PoE
- USW-Enterprise-24-PoE
- USW-24-PoE
Port Configuration & PoE Capabilities
This high-performance switch features a versatile 26-port configuration designed for demanding enterprise environments. It includes eight 2.5 Gbps RJ45 ports with PoE++ (802.3bt) delivering up to 60W per port, eight 1 Gbps RJ45 ports with PoE++ (802.3bt), and eight 1 Gbps RJ45 ports with PoE+ (802.3at) delivering up to 30W per port. For high-speed fiber uplinks, it provides dual 10 Gbps SFP+ ports. The system boasts a robust 400W total PoE power budget, making it ideal for driving high-density access points, IP cameras, and VoIP infrastructure.
Management, OS & Layer Features
The USW-Pro-Max-24-PoE is a fully managed Layer 3 switch operating seamlessly within the Ubiquiti UniFi ecosystem. It supports advanced Layer 3 routing capabilities, including DHCP server/relay, inter-VLAN routing, and static routing. Management is streamlined via the UniFi Network application and is enhanced by innovative Etherlighting technology for visual port status identification. Additionally, it features a 1.3 inch LCM color touchscreen with AR switch management capabilities for intuitive local monitoring.
Hardware Configuration & Included Accessories
Designed for standard server racks, this switch features a 1U rack-mountable form factor measuring 17.4 x 12.8 x 1.7 inches. It is powered by a universal AC 100-240V input and includes a SmartPower DC USP-RPS backup input port for power redundancy in mission-critical deployments. The unit delivers a massive 112 Gbps total switching capacity, a non-blocking throughput of 56 Gbps, and a forwarding rate of 83.33 Mpps, ensuring bottleneck-free performance across all connected devices.
