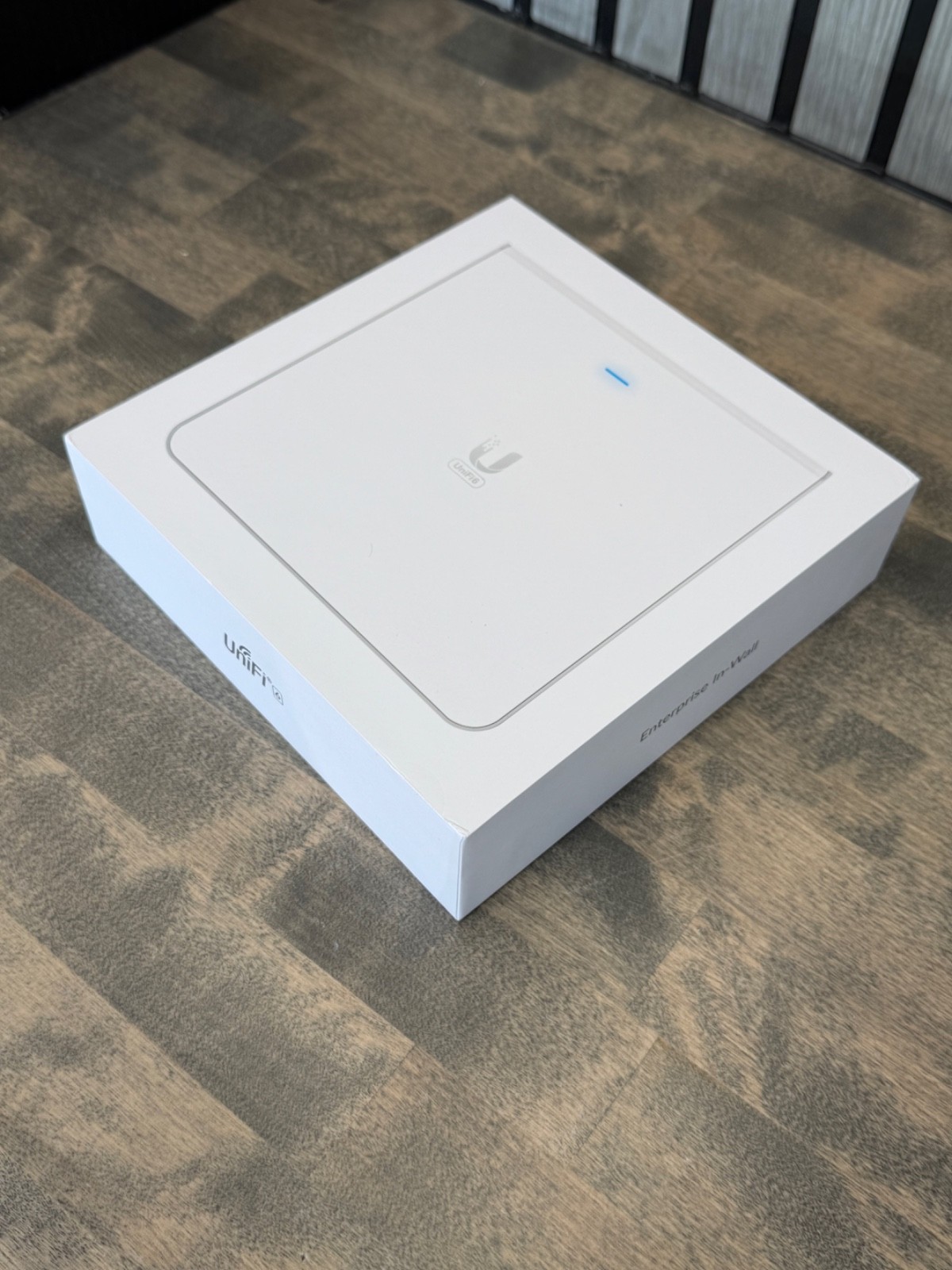

Item is working great and all parts are included, including original retail packaging.Item Specifics
Wall-mounted WiFi 6E AP with 10 spatial streams, 6 GHz support, and a built-in 4-port switch. Designed for high-density office networks.
OverviewDimensions159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")WiFi StandardWiFi 6ESpatial Streams10Coverage Area115 m² (1,250 ft²)Max. Client Count600+Uplink2.5 GbEMountingWall(Mount Included)Power MethodPoE+PoE++ (Required for PoE output)PerformanceMIMO6 GHz4 x 4 (DL/UL MU-MIMO)5 GHz4 x 4 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO)Max. Data Rate6 GHz4.8 Gbps (BW160)5 GHz4.8 Gbps (BW160)2.4 GHz573.5 Mbps (BW40)Antenna Gain6 GHz5.8 dBi5 GHz5.8 dBi2.4 GHz4 dBiMax. TX Power6 GHz26 dBm5 GHz26 dBm2.4 GHz22 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11ax (WiFi 6/6E)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)FeaturesWireless Meshing✓Band Steering✓802.11v BSS Transition Management✓802.11r Fast Roaming✓802.11k Radio Resource Management (RRM)✓Advanced Radio Management✓Passpoint (Hotspot 2.0)✓Captive Hotspot PortalCustom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓Guest Network Isolation✓Private Pre-Shared Key (PPSK)✓WiFi Speed Limiting✓Client Device Isolation✓WiFi Schedules✓RADIUS over TLS (RadSec)✓Dynamic RADIUS-assigned VLAN✓HardwareMax. Power Consumption21W (Excluding PoE output)Supported Voltage Range44–57V DCNetworking Interface(1) Data in: 1/2.5 GbE RJ45 port(4) Data out: GbE RJ45 portsWeight884 g (1.9 lb)ManagementEthernetBluetoothBuilt-In Switch(4) GbE ports with (1) PoE outputEnclosure MaterialPolycarbonate, aluminumMount BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)NDAA Compliant✓CertificationsCE, FCC, IC, Anatel: 04643-24-08356Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzU-NII-5 to U-NII-8: 6100 - 7125 MHzWorldwide:2400 - 2483.5 MHz5150 - 5850 MHz5925 - 7125 MHzAmbient Operating Temperature-30 to 60° C (-22 to 140° F)Ambient Operating Humidity5 to 95% noncondensingSoftwareApplication RequirementsUniFi NetworkVersion 6.0.45 and later
