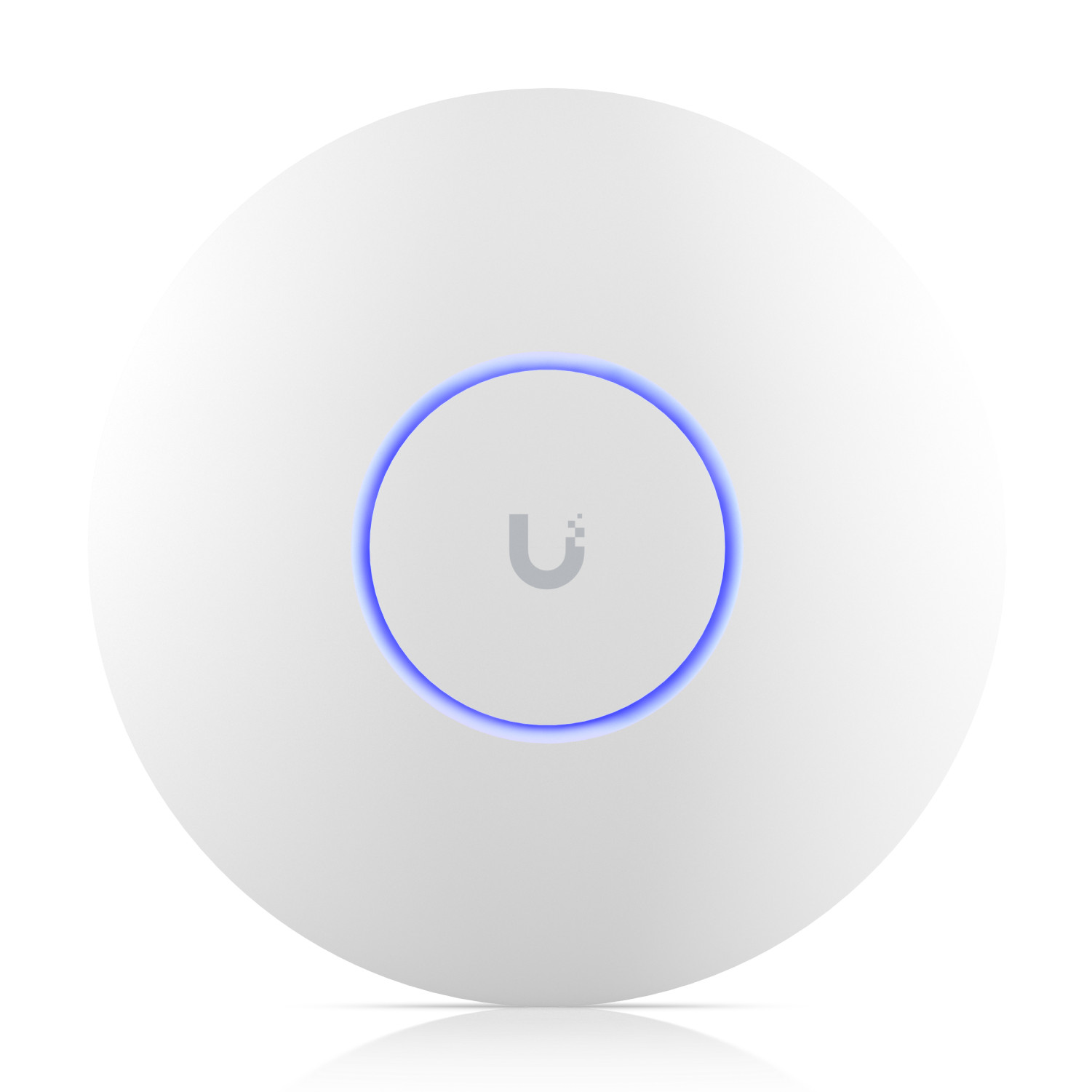

Ubiquiti UniFi U6-Enterprise Wi-Fi 6E Tri-Band Access Point
UPC: 810010077677
MPN: U6-Enterprise
Brand: Ubiquiti
Type: Wireless Access Point
Model: UniFi U6-Enterprise
Maximum Wireless Data Rate: 10.2 Gbps
Maximum LAN Data Rate: 2.5 Gbps
Number of LAN Ports: 1
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- U6-Enterprise
- U6-Enterprise-US
- U6-Enterprise-EU
- U6-Enterprise-UK
- U6-Enterprise-JP
- UniFi 6 Enterprise
- UniFi6 Enterprise
- U6 Enterprise
- 810010077677
- U6-Pro
- U6-LR
- U6-Enterprise-IW
- U7-Pro
- U7-Pro-Max
- U7-Pro-Wall
- UAP-AC-HD
- UAP-XG
Deployment & Controller Requirements
The Ubiquiti UniFi U6-Enterprise is a high-density, ceiling-mounted access point designed for seamless integration into the UniFi ecosystem. It requires a UniFi Network Controller (such as a hardware console like the UDM-Pro, Cloud Key, or a self-hosted software controller) for configuration, management, and monitoring. This unit is engineered for demanding enterprise environments, supporting over 600 concurrent clients with advanced features like per-user rate limiting, 802.1Q VLAN tagging, and guest traffic isolation.
Power & Interface Specifications
To fully utilize its massive wireless throughput capabilities, the U6-Enterprise is equipped with a single 2.5GbE RJ45 port, preventing wired network bottlenecks. It requires 802.3at PoE+ (Power over Ethernet Plus) for operation, with a maximum power consumption of 22W and a supported voltage range of 44-57V DC. Please note that a compatible PoE+ switch or a standalone PoE+ power injector is required for operation.
Wireless Capabilities & RF Performance
Equipped with cutting-edge Wi-Fi 6E (802.11ax) technology, the U6-Enterprise operates across tri-band frequencies, utilizing the 2.4 GHz, 5 GHz, and the uncongested 6 GHz bands. It boasts an impressive 10 spatial streams (2x2 on 2.4 GHz, 4x4 on 5 GHz, and 4x4 on 6 GHz) to deliver a staggering aggregate throughput of 10.2 Gbps. The optimized internal antenna design provides robust coverage up to 1,500 square feet, ensuring low-latency, high-speed connectivity for the most demanding wireless applications.
