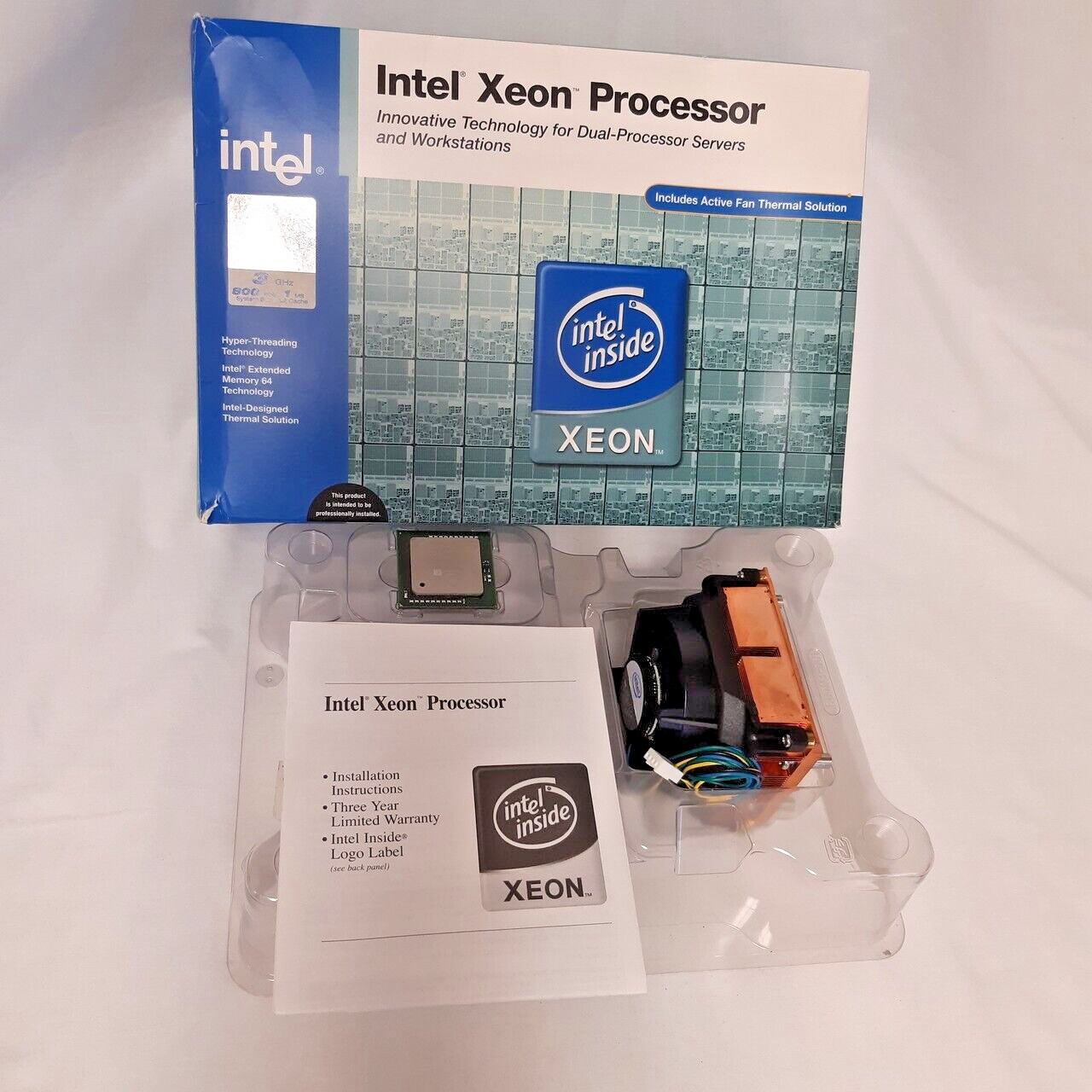

VINTAGE Intel BOXED XEON 3.0GHZ 1M-CACHE800MHZ FSBSKT FC-mPGA4FAN AND COPPER HEATSINK INCLUDED (UNUSED)
A MUST HAVE FOR YOUR CPU COLLECTIONONLY FOR DUAL CPU SERVER / DESKTOP BOARDS(BX80546KG3000EA)OPEN BOX USED AS A DISPLAY INOUR BRICK-AND-MORTAR STORESocket TypeSocket-604Number of Cores1Clock Speed3.0GhzProcessor ManufacturerIntelMPNBX80546KG3000EABus Speed800 MhzProcessor TypeIntel XeonBrandIntelConnectors604 PINCompatible BrandFor Intel
General informationType CPU / MicroprocessorMarket segment ServerFamily Intel XeonCPU part numbers BX80546KG3000EA is a boxed microprocessorFrequency 3 GHz / 3000 MHzBus speed 800 MHzClock multiplier 15Package 604-pin Flip Chip micro-PGA4 (FC-mPGA4)1.67" x 1.67" (4.25 cm x 4.25 cm)Socket Socket 604 / mPGA604Introduction date Jun 28, 2004Price at introduction $316S-spec numbersPart number ES/QS processors Q81R QFFP QL85 QN47 QU09
Architecture / MicroarchitectureInstruction set x86Microarchitecture NetBurstProcessor codename NoconaCore stepping C1 D0 E0 G0? G1CPUIDs F34 F37 F41 F49Manufacturing process 0.09 micronData width 64 bitThe number of CPU cores 1The number of threads 2Floating Point Unit IntegratedLevel 1 cache size 12K micro-operations 8-way set associative execution trace cache16 KB 8-way set associative data cacheLevel 2 cache size On-die 1 MB 8-way set associative cachePhysical memory 64 GBMultiprocessing Up to 2 processorsExtensions & Technologies MMX instructionsSSE / Streaming SIMD ExtensionsSSE2 / Streaming SIMD Extensions 2SSE3 / Streaming SIMD Extensions 3HT / Hyper-Threading technologyEM64T / Extended Memory 64 technology / Intel 64Low power features HALT modeStop Grant modeSleep modeEnhanced Intel SpeedStep technology
Integrated Graphics Processing UnitNone
Electrical / Thermal parametersV core 1.2875V - 1.4VMinimum/Maximum operating temperature 5°C - 72°C5°C - 80°CMaximum power dissipation 127.5 Watt (VRM 10.0)Thermal Design Power 103 Watt
Notes on Intel Xeon 3 GHzBus frequency is 200 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 800 MHzPart BX80546KG3000EA includes active thermal solutionSupports Dual Processors onlyRequires VRM 10.0 Compatibility
OPEN BOXUSED AS A DISPLAY IN OUR BRICK-AND-MORTAR STORE
ORIGINAL BOX (OPEN) INCLUDEDORIGINAL PAPERWORK INCLUDEDACTIVE FAN THERMAL SOLUTION INCLUDED (UNUSED)
RETAIL BOX SHIPPED IN WHOLESALE PKG.
