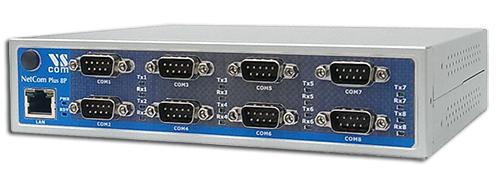

Easily access your RS232/RS422/RS485 serial device from anywhere, over a local LAN/intranet, or over WAN/Internet.Overview:The NetCom+ 813 is an industrial-strength network-based serial device servers for connecting eight RS232 devices (or RS485 communication lines) like CNC, PLC, weighting scale, scanner and others directly to a network running TCP/IP. The driver for Windows operating system installs Virtual Com Ports. The network is Gigabit Ethernet or optionally wireless by WLAN 802.11b/g/n, another option is Power over Ethernet. The NetCom+ Servers use a state-of-the art RISC processor for low power and cost effective design. Power supply is via 12V DC, or optionally via Ethernet cable with POE IEEE 802.3af. The USB 2.0 port supports WLAN, and additional serial ports by expansion modules.NetCom+ can be configured over Driver Panels, WEB Browser, serial Port, Telnet, SNMP and serves as a transparent serial channel without platform and distance limitation. As modern devices the NetCom+ provide encryption for all 8 RS232/422/485 devices located virtually anywhere via Ethernet, WLAN or Internet

Easy selection of RS232, RS422 or RS485 by single DIP switch or individually by software

Port expansion over USB A connector

LAN 1000/100/10 Ethernet auto-detect

Supply via Power over Ethernet 802.3af

NetCom Manager automatically finds NetCom+ devices in the network

Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP

Automatic mode switching between Driver and Raw Mode

Supports TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS, PPP, openVPN

SSL/AES-256 encryption on Ethernet, WLAN and Internet

Optional: Wireless network IEEE 802.11b/g/n

Optional: 3G/4G Modem for mobile networks

Specifications / Interface:Ethernet interface
Auto-detecting 1000BaseT/100BaseTx/10BaseT (GigaLAN)
Connector 8P8C (RJ45)Wireless interface
Optional via internal module or external USB stick
IEEE 802.11b/g/n operation in Access Point or Client ModeProtocols
TCP/IP, UDP, Telnet, PPP, DHCP, ICMP, HTTP, LPD, SNMP V1/2c/3, DNS, openVPNNo. of serial port
8x DSUB 9 male connector (as PC), Expandable by USB-COM Plus modulesSerial interface
RS232/422/485 selected by software or DIP-switchAvailable Modes
RS232 full duplex
RS422 full duplex (120Ω on/off)
RS485 4 wire, full duplex (120Ω on/off)
RS485 2 wire, half duplex (120Ω on/off)
Internal Termination, controlled by operation mode
BIAS resistors not requiredSignals
RS232: TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
RS422: Tx+/-, Rx+/-, GND
RS485 2 wire: Data+/-, GND
RS485 4 wire: Tx+/-, Rx+/-, GNDRS485 Data control
Controlled by ART (Automatic Receive Transmit control)USB port
USB 2.0 High Speed, for WLAN and serial port expansion
Serial Performance:Speed
RS232: 200 bps to 921.6/1000 kbps
RS422/485: 200 bps to 3.7Mbps
Supports non-standard baud ratesParity:
None, Even, Odd, Mark, SpaceData Bits:
5, 6, 7, 8Stop Bits:
1, 2
Operating Modes:Driver Mode
VScom Driver for Windows up to 10, Server up to 2008 R2, both x86 and x64 Editions. The Driver creates a virtual Com port, using VScom NetCom protocol.Other Modes
TCP Raw Server, TCP Raw Client, Null Modem Tunnel, UDP Mode, Print Server and IP Modem
Power & Environment:Connector
3-pin Terminal Block with Protective EarthPower Requirements
9 - 54V DC, 0.5A @ 12V, 6WDimensions
196×147×44 mm³ (W×L×H)Operating Temperature
−20°C - 65°CStorage Temperature
−20°C – 85°CCase
SECC sheet metal (1mm)Weight
0.9kgMounting
19-inch Rack Wall-MountSpecial Features:Installation
For easy installation the configuration utility NetCom Manager automatically finds NetCom+ devices in the networkOperating Mode
Automatic mode switching between Driver and TCP RAW Server mode.PPP Access
Dial-In to a modem attached to a serial port using Point to Point Protocol. TCP/IP is transported over the serial line, allowing access to configuration and the serial ports, even without over Driver Panels, NetCom Manager, WEB Browser, serial console, Telnet, SNMPFirewall:
Special precautions for Firewall environmentsFirmware:
Firmware update over WEB BrowserLEDs
LEDs for Power, Ready, WLAN, serial Tx, Rx, Ethernet Link, Speed
SecurityPassword Access
Every capabilities of configuration use the same password including SNMP V3Secure Communication OpenVPN™SSL tunnel provides security on Ethernet and Internet. The tunnel protects configuration and serial data, especially convenient to use across the Internet. OpenVPN software is available for many systems, including Windows, Linux and Mac OS.Strong encryption by AES up to 256 bit keys.Packing List

• NetCom Plus Serial Device Server
• Mounting brackets for 19-inch rack
• Wall mount plates
• Terminal block for Power Supply
• CD-ROM with Driver and configuration software
