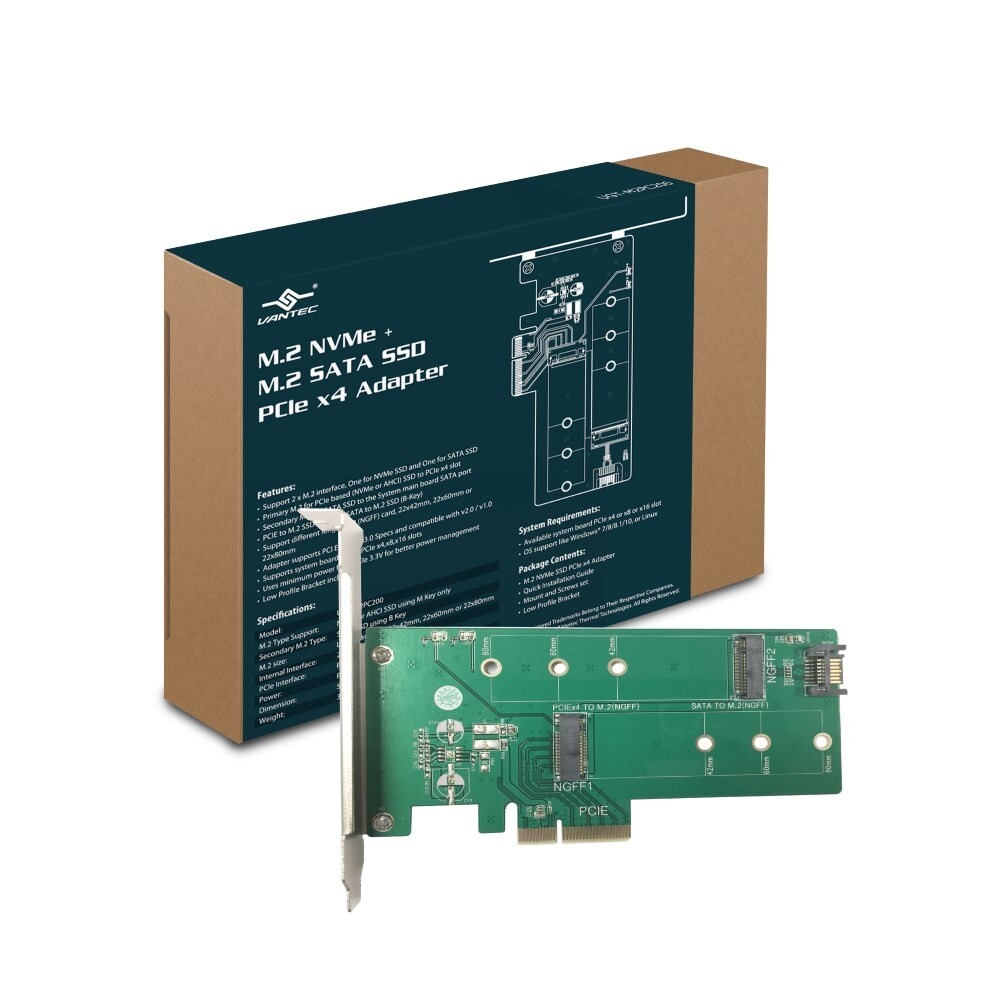

Vantec M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter

The M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter is a unique product with 2 very different M.2 Slot. It can offer the fastest boot or data access thru the NVMe SSD and at the same time provide very fast storage through the M.2 SATA SSD. It provides the link between PCIe 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer and another M.2 interface for your M.2 SATA SSD. This adapter allows for flexible installation of an M.2 (NGFF) of different size like 42, 60, or 80mm in length with varying capacity. This M.2 adapter will give you the best performance possible for your 2 x M.2 interface, One for NVMe SSD and One for SATA SSD
• Primary M.2 for PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
• Secondary M.2 for SATA SSD to the System main board SATA port
• PCIE to M.2 SSD (M-Key), SATA to M.2 SSD (B-Key)
• Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm
• Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
• Supports system boards with PCIe x4,x8,x16 slots
• Uses minimum power from PCIe 3.3V for better power management
• Low Profile Bracket included

Model: UGT-M2PC200Primary M.2 Type: NVMe or AHCI SSD using M Key onlySecondary M.2 Type: SATA SSD using B KeyM.2 size: Length support 22x42mm, 22x60mm or 22x80mmInternal Interface: 2 x M.2 (NGFF)PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes)Power: PCIe Bus powered (3.3V)Dimensions: 5.8 x 4.7 x 0.7 inches / 148 x 120 x 17 mmWeight: 3 oz. / 85 gSystem Requirements:Available system board PCIe x4 or x8 or x16 slotOS support like Windows® 7/8/8.1/10, or LinuxWhat's Included: M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter, Mount and Screws set, Low Profile Bracket, Quick Installation Guide
