Item Specifics
• Brand: IBM
• Type: Logic Card / Circuit Board
• Components: IBM MST Ceramic Modules, Intel 8049, Texas Instruments Logic
• Era: Early 1980s
• Year of Manufacture: 1981
• Country/Region of Manufacture: United States / Multiple
• Vintage: Yes
• Condition: Used, vintage, IBM Logic Card with White Ceramic MST Modules - Intel 8049 Microcontrollers - 1981 Mainframe Era Hardware

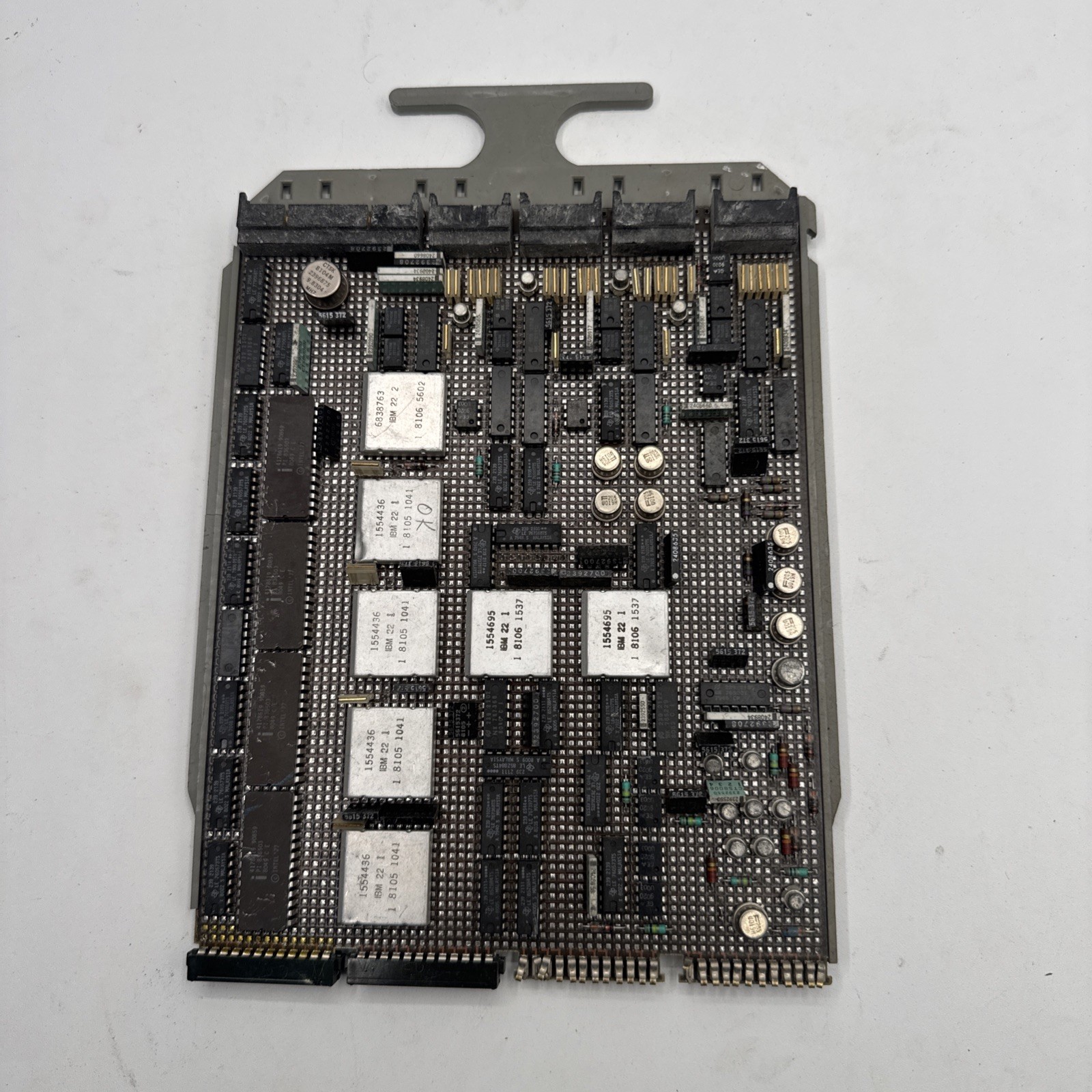

This is a substantial piece of IBM computing history: a logic card from the early 1980s mainframe and minicomputer era, populated with IBM’s signature white ceramic Monolithic System Technology (MST) modules, Intel P8049 microcontrollers, and Texas Instruments support logic. The board sits in its original gray plastic carrier with the iconic T-handle pull tab that IBM used across their plug-in card systems for decades.
This is the kind of artifact that tells the story of how IBM dominated the back-office computing world before the PC era took over.
About IBM MST and the ceramic modules
The white ceramic modules with IBM part numbers visible on this card (6838763, 1554436, 1554695) are IBM Monolithic System Technology modules, manufactured in-house by IBM at their own semiconductor fabrication facilities. MST was the evolution of IBM’s earlier SLT (Solid Logic Technology) packaging that had powered the System/360 mainframes in the 1960s. By the late 1970s and into the 1980s, MST modules were the building blocks of IBM minicomputers, mainframe peripherals, controllers, and specialty processors.
Unlike the discrete chip approach that the rest of the industry adopted, IBM continued building their own custom ceramic multi-chip modules well into the 1980s. Each white ceramic package contains multiple integrated circuits, interconnect, and termination resistors fused into a single sealed unit. The result was higher density, better reliability, and a distinctive appearance that no other manufacturer matched.
Date codes on these modules read 8104, 8105, and 8106, placing this card squarely in early 1981 production. One module is marked with a handwritten “OK” in black ink, presumably from an IBM factory or service technician during testing or installation. That kind of detail is what collectors love about authentic IBM hardware.
About the Intel chips
Multiple Intel P8049 microcontrollers are visible on the card, with the unmistakable Intel logo and “©INTEL ’77” copyright marking. The 8049 is the ROM-less member of the famous MCS-48 family, sibling to the 8048 microcontroller that became one of the most-used embedded processors of the 1970s and 1980s. Intel 8049s in this card would have provided dedicated processing for specific peripheral or controller functions within whatever IBM system this card supported.
The Texas Instruments logic chips are from TI’s Malaysia facility with date codes consistent with 1980-1981 production. Standard glue logic and bus interface parts that filled in around the MST modules and Intel microcontrollers.
About this card
The complete card assembly measures approximately 11 inches tall by 8 inches wide. The original IBM gray plastic carrier is intact with no cracks or damage, including the distinctive T-handle pull tab at the top that allowed technicians to extract these cards from IBM card cages. The ceramic modules all appear present and undamaged. The Intel and TI chip markings are clear and readable. The gold edge connector at the bottom shows minor handling wear consistent with installation and removal but no significant damage. The board has not been bench tested for function and is being sold as a vintage display, collector, and historical artifact piece.
Please review the photos closely as part of your purchase decision. This is sold as-is.
Why collectors and designers want IBM cards
Authentic IBM logic cards from the mainframe and minicomputer era have become some of the most sought-after items in the vintage computing decor and collecting world. The visual impact of rows of white ceramic modules against the IBM gray carrier is striking and immediately recognizable. These cards appear in:
• Vintage computing museums and private collections
• Tech industry executive offices as conversation pieces
• Film and television production design (period tech scenes, retro labs, government and corporate settings)
• High-end shadowbox and framed wall art for tech-themed spaces
• Collections of IBM corporate history enthusiasts and former IBMers
The combination of authenticity, visual impact, and the fact that fewer of these survive each year as e-waste recovery accelerates makes them increasingly valuable as time goes on.
What you are getting
One (1) vintage IBM logic card with intact gray carrier, white ceramic MST modules, Intel P8049 microcontrollers, Texas Instruments support logic, and original gold edge connector. Card is being sold complete and unaltered.
Shipping
The card will be packaged in anti-static material with rigid protection, double-boxed, and shipped via USPS Priority Mail with tracking. International buyers welcome, please message before purchase for shipping quote.
Questions welcome. Thanks for looking.
