New video adapter cable for NeXTStation Mono N1100 to Flatpanel VGA

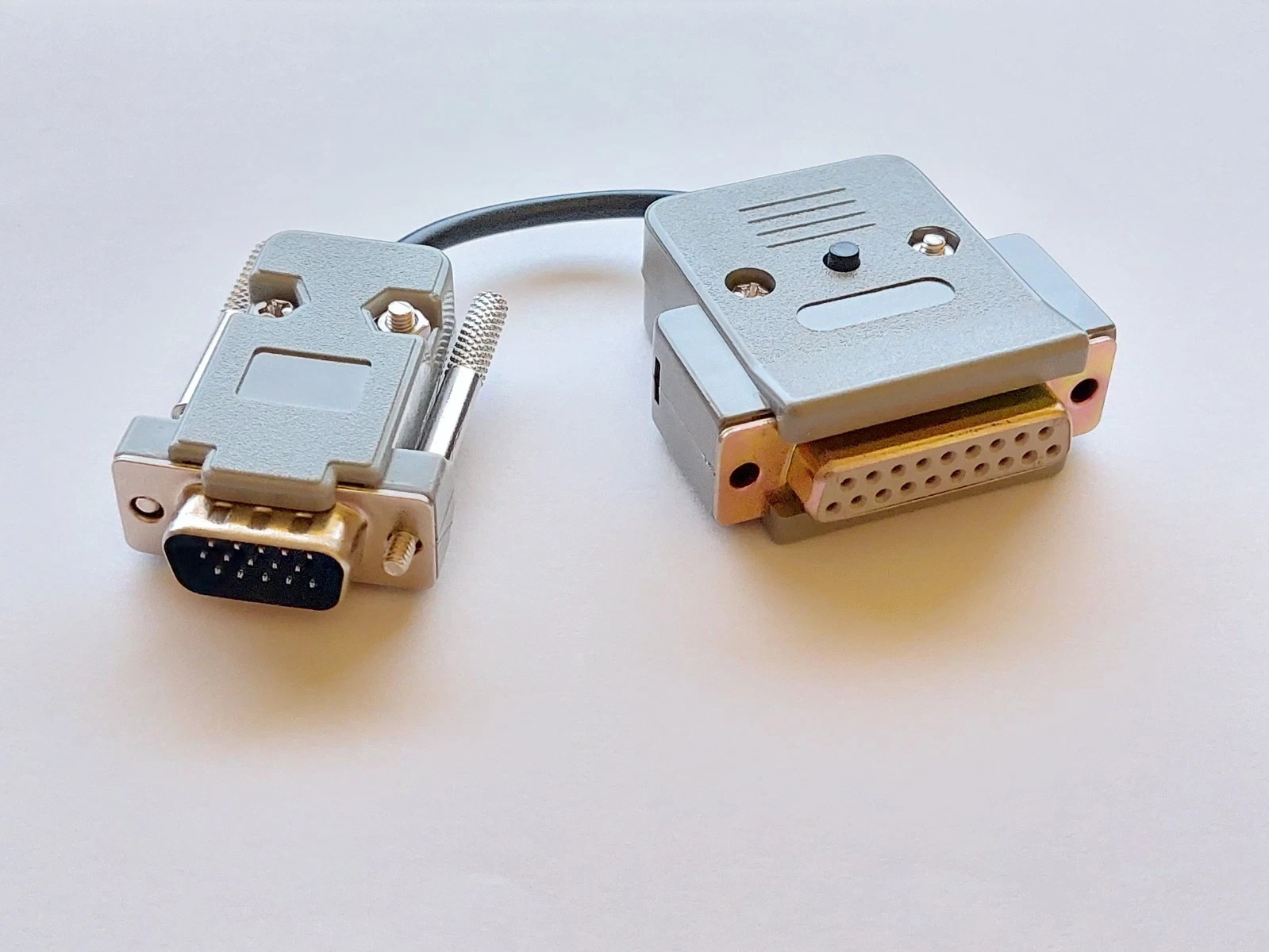

New D-sub DB19F to D-Sub DB15HD (VGA) for use with NeXTStation Mono N1100 with your original DB19M to DB19M video cable.There is a push button on the DB19F cover that you need to use to "wake up" and enable the NeXT Mono PSU, since it expects its original monitor rather than your VGA-compatible one :-)
How do you use it? It's simple: connect everything, and once everything is powered on, press and hold the small button for a couple of seconds (then release). This will activate the NeXT's PSU, and the computer will turn on.

Flat panel Monitor must support 1280 by 1024 resolution and Synch on Green like most Dell non wide 19 and 20" Flat panel monitors.

PLEASE NOTE:

VGA DB15HD male connector --> This connector on compatible CRT or Flat panel that must support 1280 x 1024 resolution and Sync on GREEN

DB19 female connector --> This connector on original video cable DB19 female

DB15HD connector --> This connector on VGA monitor

P.S: I can do it also with D-Sub DB15HD female connector!Just ask me :-)ATTENTION!NeXT computer...NeXT cable...VGA monitor..are not inclueded!Only to show you :-)
