Item Specifics

• Brand: Zilog
• Type: Silicon Wafer / Semiconductor Sample
• Size: 6 Inch (150mm)
• Era: Late 1990s / Early 2000s
• Country/Region of Manufacture: United States
• Condition: Used (Excellent vintage condition, protected in case)

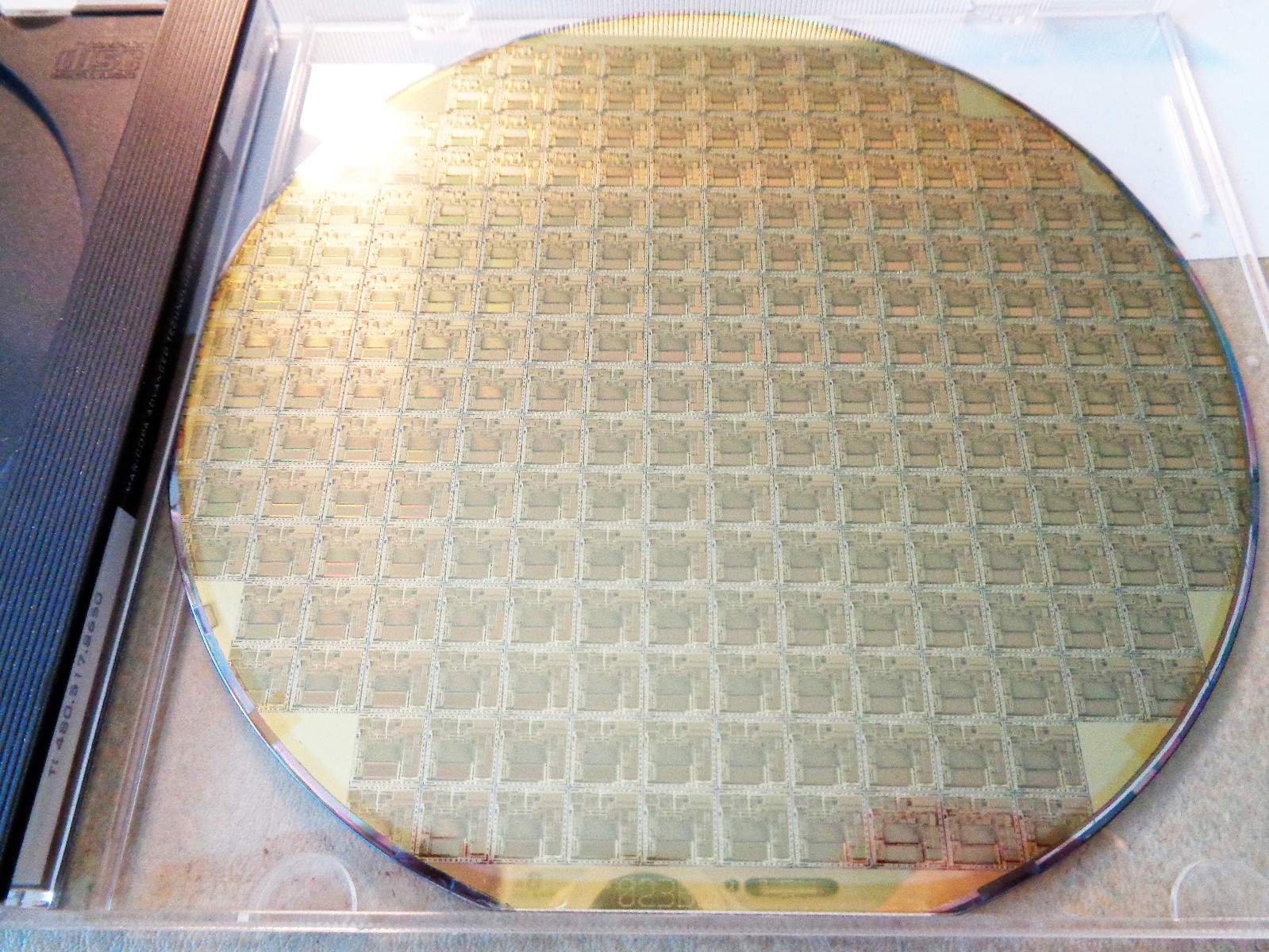

Item DescriptionUp for sale is a highly unique and genuinely rare piece of computing history: an authentic 6-inch (150mm) raw silicon semiconductor wafer manufactured by legendary Silicon Valley pioneer Zilog, presented in its original MATEC (Maricopa Advanced Technology Education Center) protective plastic case.This wafer was never commercially sold to the public. It was produced by Zilog as an exclusive, serialized courtesy gift for their official education partners to use as a hands-on visual aid for microchip manufacturing students.Key Features & Collector Details:

• Classic "Primary Flat" Edge: Unlike modern, perfectly round wafers that utilize microscopic alignment notches, this vintage 6-inch specimen features the classic straight "clipped" edge (primary orientation flat). This is a highly sought-after aesthetic marker of retro-era chip fabrication.
• Intact Die Grid Pattern: The microscopic circuit layouts (dies) and uncut factory scribe lines are clearly visible to the naked eye. When held under direct light, the microscopic structures act as a diffraction grating, reflecting a brilliant, shimmering rainbow spectrum.
• Official Factory Laser Scribing: The base of the silicon is factory-etched with Zilog's official internal quality-control and manufacturing tracking codes.
  • Top String: 023BHQ 15 (Denotes Mask ID and Wafer #15 from the production run)
  • Bottom String: P3503365SL7.5080 (Denotes Zilog's master inventory tracking lot number and technical process specifications)
• Authentic Industrial Underside: The back of the wafer features the correct, factory-standard unpolished dark matte-grey finish. It clearly displays the three faint, circular robotic end-effector lift marks (pin marks)—definitive forensic proof that this wafer underwent processing inside an automated multi-million-dollar cleanroom fabrication line.
• Original MATEC Case Included: Comes housed inside the original plastic MATEC-branded case. The front of the case retains its original text stating: "This wafer containing semiconductor microchips, was provided as a courtesy to MATEC's education partners by ZILOG". (Please note: Instructional manual/documentation is not included).

Condition Notes:The wafer is in excellent vintage condition with an incredibly clean, mirror-like front face and a clean reverse side. It has been securely kept inside its protective plastic casing. No visible cracks, chips, or surface gouges. Please study the included photos carefully to evaluate the condition and to review the crisp laser-scribed tracking codes at the base.Note: This is a delicate, brittle silicon display piece meant for collectors, educators, or retro-tech enthusiasts. It contains no data, music, or software, and should Never be inserted into a CD/DVD drive.Please contact me if you have any questions. No Returns.Shipping will be $5.00Thanks for viewing my sale. Bill
