Wavlink - Bringing Technology to Life

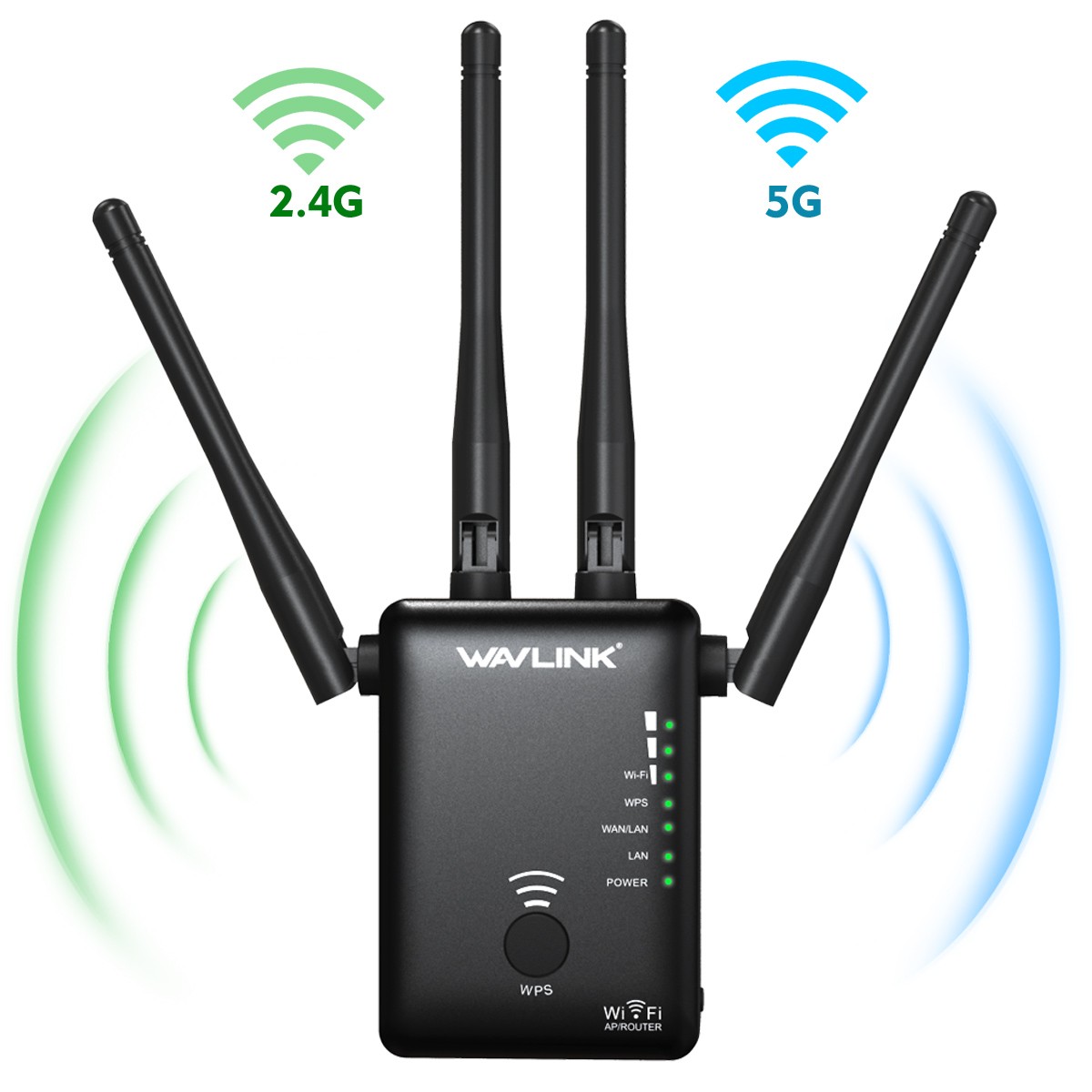

The Wavlink 579X3 expands your existing wireless network and eliminates dead spots with high performance antennas and 802.11ac technology - the next generation Wi-Fi. Dual Band technology lets you simultaneously enjoy lag-free HD video streaming, online gaming, emailing and web browsing with its speed up to N300 + AC867 without interruption. It’s well suited for large homes with multiple devices and heavy online media usage.

Blazing Fast Wi-Fi
Built-in 802.11ac Wi-Fi standard , WN579X3 offers total data transfer speeds achieving up to 1167 Mbps. Everyone can stream HD video, transfer large digital files and move data along at blazing fast speed.

Expand Any Wi-Fi to at Least 1000sq.ft.
With four high gain antennas and high-powered amplifier, the WN579X3 establishes a stable wireless connection, boosts the network's coverage to hard-to-reach areas and provides high-performance, wall-to-wall Wi-Fi connectivity.

Built-in High Power Amplifiers
Independent built-in high power amplifiers greatly improve the ability of signal receiving and dispatching. With up to 5x transmission power, you can enjoy a stronger signal in a boosted coverage, and keep your mobile devices connecting to the router all the time.

High Power, More Stable Wi-Fi
High power amplifiers improve output power to ensure the wireless signal is strong enough to penetrate any walls and other obstacles. So you can Enjoy smooth Wi-Fi at every room.

High-Gain Adjustable Antennas
We’ve thought every details for your best Wi-Fi experience. Four high gain antennas extremely boost the reception sensitivity and sending ability of the range extender to create fast and reliable connection over great distance.

More Reliable Connections with Beamforming
Beamforming Technology improves your coverage by directing bandwidth to your devices as you move around your home. This makes all of your connections more efficient and stable.

Two Gigabit Wired Connections for Ultrafast Data Transfer
This Gigabit Ethernet ports provide data transfer speeds 10x faster than a standard Ethernet port. It allows you to connect Gaming console, Blu-ray player, Smart TV, streaming player and more.

Hassle-free Installation
It’s virtually compatible with any Wi-Fi router. Just press the WPS button and the installation is done. It’s that easy.

Maximum Heat Dissipation
Precision-designed for maximum heat dissipation. With ventilation holes from every side, it enhances stability during working process and extends lifetime.

One Switch for Different Applications
In addition to its function as a repeater, WN579 X3 can also work as a wireless access point (AP) or as a router. Simply use the switch to choose what you want.

Note:
-The passwords of your repeater are as same as your router’s.
-More than 70% signal is recommended for the most reliable connection.
-Poor signal connection may cause slow speeds or dropped connection.
-If do not see desired wireless network, you can move the range extender closer to the router and scan again as it may be out of range.
-The Extender mode of this device can be set up by wireless device such as smart phone or laptop.

FEATURES
Ports: 1 x 1Gbps LAN, 1 x 1Gbps WAN/LAN
Button: 1 x Reset,1 x WPS,1 x Mode Switch,1 x Power ON/OFF
Power Plug: US
Power Supply: Internal DC5V / 2A
Dimensions: 113 x 63 x 32 mm
WIRELESS Wireless Standards: IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Frequency Band: 5GHz and 2.4GHz
Transmit Power: Max 20dBm
Wireless Security: Wireless MAC address Screening; Wireless security function switch; WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK mix mode
Antennas: 2 * 5GHz 5dBi Detachable Omni Directional antenna; 2 * 2.4GHz 5dBi Detachable Omni Directional antenna
Beamforming: Boosts speed, reliability and range of WiFi Connections for 2.4 and 5GHz
MIM: Increase throughout to connect more devices at the same time
Processor: 800Mbps dual-core processor

Package
1 x Quick Guide
1 x WiFi AP/Router
1 x RJ45 Ethernet Cable

AX3000-WIFI 6

WAVLINK AX3000 Dual Band Wi-Fi 6 Repeater/AP/Router, 2024 New WiFi Amplifier with 160MHz Bandwidth, 4x5dBi Antennas, Supports Beamforming, BSS Coloring, OFDMA, Coverage up to 2000sq.ft., 256 Full-Speed AX3000 WiFi6】Come and try the 2024 new-released WN583AX3, the latest lightning-fast WiFi 6 router that outperforms regular WiFi 6 models limited to 1800Mbps. Enjoy blazing speeds with dual-band support: 2.4GHz (573Mbps) and 5GHz (2402Mbps) utilizing a 160MHz bandwidth. Whether streaming 8K videos or playing action-packed games, experience silk-smooth connectivity.

【⭐Multi-Working Modes】Supports Repeater/AP/Router/Mesh mode, the WN583AX3 flexibly adapts to diverse network needs in different environments. The Repeater mode amplifies your Wi-Fi coverage for enhanced connectivity easily. By efficiently transforming wired network into wireless accessibility, the AP mode is recommended for users in need of an expanded network footprint.

【⭐Easy Set Up & WPS Function】Comes with a simple but powerful web interface, the WiFi6 extender offers convenient setup and management from your phone or computer. Easily connect to additional devices or upstream routers with just a press of the WPS button, enhancing your network experience with ease. Press for 2s to connect the downstream devices and press for 8s to connect the upstream router.

【⭐Everything Mesh & Powerful Antennas】Use WAVLINK AX3000 WiFi6 router to build your customized mesh WiFi system, upgrading your big house into a paradise of uninterrupted connectivity. Also supports networking with other WAVLINK everything mesh routers. And the 4x5dBi high-gain antennas enhance the signal strength, further ensuring the signal coverage and the network stability.

【⭐User-Friendly Design】The wall-mounted design saves more space and reduces the hassle of storing messy charging cables. With strategic heat dissipation holes integrated into its aesthetic appeal, this WiFi 6 router maximizes performance for daily use. Additionally, a smart LED light around the WPS button showcases various router states through color changes, streamlining user convenience.

BSS Coloring
With BSS Coloring technology, the WiFi extender effectively minimizes interference from neighboring networks, ensuring a stable connection even in crowded network environments.

WiFi 6 OFDMA
OFDMA technology helps improve WiFi efficiency by allowing multiple devices to communicate with the router simultaneously, enhancing overall network performance for smoother connectivity.

4x5dBi Adjustable Antennas
The 4x5dBi high-gain antennas are designed to rotate both horizontally and vertically, which helps to adapt to different placement positions for the best signal enhancement.

Gigabit WAN/LAN Port
The 1000Mbps Ethernet port is ideal for connecting desktop computers, gaming consoles, smart TVs, streaming devices, and upper routers or modems, ensuring stable wired connections with enhanced speeds and network stability.

Intelligent FEM Chips
With the incorporation of 4 FEM chips, this WiFi 6 extender exhibits remarkable power and efficiency enhancements, allowing it to manage demanding transmission tasks like online gaming streams and 4K live feeds while maintaining stability.

Easily Accessible Web Interface
Configure your AX3000 WiFi6 repeater via web interfaces on the phone or computer, which offers user-friendly management options and convenient monitoring capabilities, enhancing control and customization of network settings for optimized performance.

Advanced Security with WPA3
Benefiting from the latest WPA3 encryption, the WN583AX3 ensures strong security for important data or private information transmitted over WiFi. Enjoy a super-fast WiFi connection without worrying about information leakage.

LED Indicator Description
Solid Purple: The device is being activated.
Fast Blinking Red: The device is not connected to the higher-level router.
Slow Blinking Red: The device doesn't have access to the Internet.
Fast Blinking Blue: Pairing with the WPS of a higher-level router.
Slow Blinking Blue: The phone is pairing with WPS./Press the pair button for Mesh pairing.
Solid Blue: The Internet is connected and stable./AP Mode.

WPS/Mesh Pair button:
AP Mode: Press and hold WPS for 2 seconds to connect to downstream devices.
Repeater Mode: Press and hold the WPS button for 2 seconds to connect to the downstream devices and for 8 seconds to connect to the upstream router.
Mesh Extender/Mesh Router Mode: Press and hold the Mesh Pair button for 2 seconds to pair.

Reset Button:
Press and hold the button for 6 seconds to reset to product's factory settings.

Specification
- Model: WL-WN583AX3
- Ports: 1 x WAN/LAN(10/100/1000Mbps)
- Buttons: 1 x Power On/Off; 1 x Reset; 1 x WPS
- Status LED: 1 x WPS(Purple/Red/Blue); 1 x WAN/LAN(Blue)
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Antenna: 4 x 5dBi Omni Directional Antennas(Length: 15.4cm/6.1in)
- Wireless Security: WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX
- Unit Size(without antennas): 16.0x7.5x4.2cm/6.3x3.0x1.7in ( L x W x H )
- Ethernet Cable Length: 100cm/39.4in
- Weight: 298g/10.5oz
- Everything Mesh supported Models: WN533AX6/LUX DX15, WN531AX3/LUX DX7, WN586X3/MIGHTY EXI, WN587X3/MIGHTY EX2, WN583AX3/AERIAL D6X, WN573HX3/AERIAL HD9(Does not support networking with other brands of mesh devices.)

In the Box
- 1 x Wi-Fi 6 Repeater/AP/Router
- 1 x RJ-45 Ethernet Cable
- 1 x Quick Start Guide
