WAVLINK 2-Bay Hard Drive Enclosure / Docking Station WAVLINK2‑Bay Storage Solutions

• If you have any questions, please contact us. We will do our best to answer them. We wish you a pleasant shopping experience. Your package will take one day to process and be shipped from the country warehouse where you purchased it.

WAVLINK 2‑Bay Storage – RAID Enclosure vs. Clone Dock

Quick Comparison — Core Specs

FeatureProduct A: Dual bay RAID DockProduct B: 2‑Bay Offline Clone DockForm FactorClosed enclosure – screw‑in trays, needs assemblyOpen docking station – tool‑free, plug‑and‑pullPrimary UseData safety / speed – RAID 1 mirroring, RAID 0 stripingData copying / migration – one‑button offline cloning, no PC neededTransfer SpeedUSB 3.2 Gen 2 (10 Gbps) – extremely fastUSB 3.0 (5 Gbps) – fastMax CapacitySupports 2 × 22 TB (44 TB total)Supports 2 × 16 TB (32 TB total)CoolingActive cooling – aluminium body + dual built‑in fans, auto‑start at 48°CPassive cooling – no fan, relies on metal contacts + rubber feet

Quick Comparison — Features & Convenience

FeatureProduct A: Dual bay RAID DockProduct B: Dual bay Clone DockExtra PortAdditional USB‑C port – supports daisy‑chaining up to 3 unitsOnly data port, no expansionPower ControlComputer‑linked on/off – sleeps when host shuts downManual power switch (must be turned on/off separately)Hot‑SwapYesYesRAID ModesNormal / LARGE / 1 (mirror) / 0 (strip)Not applicable (offline clone only)Offline CloneNot availableOne‑button clone without computer

Scenario‑Based Recommendations

🎬 Choose Product A (RAID Enclosure) if you are:

• A video editor, designer, or heavy gamer – you need high read/write speeds for 4K footage or large games; USB 3.2 (10 Gbps) fully unlocks SSD performance.
• Serious about data security – enable RAID 1 (mirroring) – the two drives mirror each other, so if one fails, your data remains safe.
• Running the device 24/7 – the aluminium body + smart fan ensures drives stay cool during long workloads, and auto‑sleep with the PC saves energy.
• Looking for a tidy desktop – the closed enclosure keeps dust out and drives securely mounted inside.

🛠️ Choose Product B (Clone Dock) if you are:

• An IT administrator or tech enthusiast – you frequently replace system drives or want to clone an entire old drive to a new one without using a computer – just press and hold the “Clone” button for 3 seconds.
• Often swapping different drives – the tool‑free design lets you swap drives in seconds – much more convenient than unscrewing trays.
• Connecting to a phone/tablet – it comes with a USB‑A to USB‑C adapter and supports OTG, so you can directly read drive content on Android devices.
• On a tighter budget – docking stations are generally more affordable than enclosures with RAID chips and full‑aluminium bodies.

💡 Both products feature: Hot‑swappable drive bays, wide OS compatibility (Windows, Mac, Linux, Android, etc.), and robust construction. Backed by WAVLINK's worry‑free warranty and life‑long technical support.

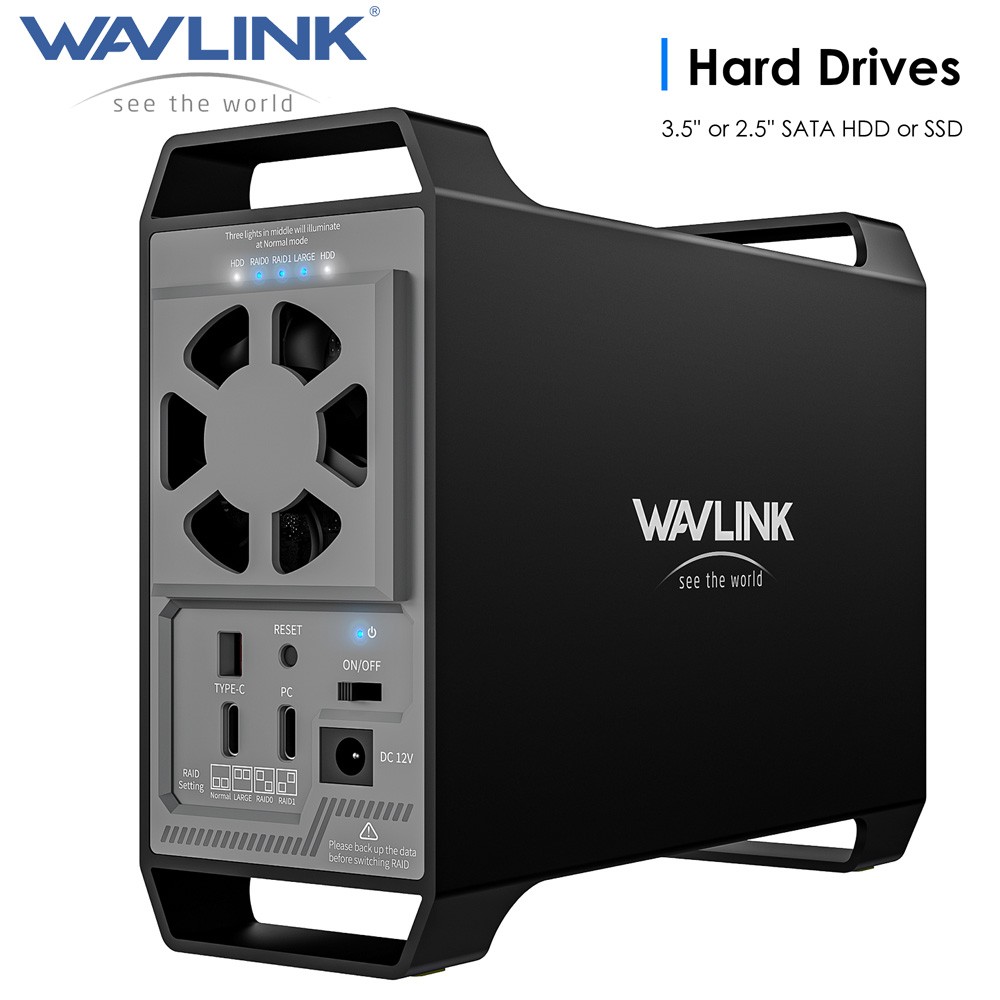

2‑Bay RAID Dock– 4 RAID Modes (Normal / LARGE / 1 / 0)

WAVLINK 2‑Bay Hard Drive Enclosure for 3.5" and 2.5'' SATA HDD/SSD Featuring 10Gbps USB‑C 3.2, 44TB Capacity, Built‑in Cooling Fans, 4 RAID Modes, Aluminum Alloy Shell

• ● Ultimate Storage Versatility: Featuring two SATA 6Gbit/s bays, the enclosure supports both 3.5'' and 2.5'' hard drives and SSDs. Effortlessly expand your storage capacity up to 2x22TB, ensuring you have ample space for all your critical data, multimedia projects, and extensive game libraries. Note: For 2.5'' hard drives, additional 2.5'' to 3.5'' mounting brackets are required (Not included).
• ● Blazing Fast Data Transfer: Experience unparalleled data transfer speeds with the USB 3.2 Type‑C port, capable of reaching up to 10Gbps. Seamlessly handle massive files and high‑volume data transfers with exceptional efficiency and speed, perfect for both professional and personal use.
• ● Enhanced Connectivity & 4 RAID Modes: Beyond storage, this docking station features an additional USB 3.2 Type‑C port for connecting peripherals or daisy‑chaining devices, creating a seamless and efficient workspace. The enclosure offers 4 RAID modes to meet your various needs, whether you want to back up data, transfer files swiftly, read and write on two HDDs simultaneously, or expand storage capacity.
• ● Premium Build Quality and Cooling: Constructed from high‑quality aluminum, the docking station offers superior heat dissipation and robust structural integrity. Dual built‑in fans automatically activate at 48°C, ensuring your drives remain cool and perform optimally, even during intensive tasks.
• ● Hot‑Swappable & Computer‑Linked Control: Swapping hard disks without shutting down the host saves significant time, lowers the risk of system and data disruption, and enhances flexibility. Also supports computer‑linked control, offering a simple management solution to increase data security and operational efficiency.

WAVLINK USB3.2 to 2‑Bay SATA HDD/SSD Tray Docking Station or Enclosure

The WAVLINK 2‑bay SATA hard drive/SSD enclosure is the ultimate solution for professionals who demand high‑speed data transfer, large storage capacity, and reliable performance. Ideal for gamers, content creators, and corporate professionals, this docking station combines advanced technology with user‑friendly features.

Ideal For

• Gamers: Expand your game library and access your games faster with the high‑speed USB 3.2 interface.
• Content Creators: Store and manage large multimedia files effortlessly with ample storage capacity and reliable data transfer speeds.
• Corporate Professionals: Efficiently manage and back up critical business data with hot‑swappable convenience and robust connectivity options.

Speed and Performance

Harness the power of USB 3.2 Type‑C with up to 10Gbps transfer speeds, reducing wait times for large file transfers and backups.

Versatility and Expansion

Four SATA 6Gbit/s bays support up to 2 drives of 22TB each, providing unparalleled flexibility for expanding your storage requirements.

4 RAID Modes

This 2‑bay RAID storage enclosure allows you to switch drives effortlessly using the mode switch, enabling smooth storage expansion and performance adjustments for your specific needs.

Intelligent Cooling System

High‑quality aluminum construction provides excellent heat dissipation. The cooling system runs automatically over 48°C.

Easier Device Management

Enabling hot‑swappable drives enables flexible hard disk swapping without requiring host shutdowns, streamlining your workflow and enhancing productivity. Moreover, supporting computer‑linked control, synchronized with the computer to switch on and off.

Auto‑Sleep Mode

Automatically entering sleep mode after 15 minutes of no operation, effectively conserving energy and extending product lifespan.

HDD Installation Steps

1. Step 1: Remove the brackets.
2. Step 2: Place HDD 1 & 2 into the brackets and secure them.
3. Step 3: Reinstall the brackets.
4. Step 4: Tighten the screws on the bottom.

Compatibility Notes

• Systems: Windows, Mac OS, Chrome OS, Linux, Android, iOS, Harmony OS, iPad OS;
• Host: Computers/phones/tablets with a USB‑C/USB‑A port;
• HDD/SSD: 3.5'' and 2.5'' SATA HDD/SSD. For 2.5'' hard drives, additional 2.5'' to 3.5'' mounting brackets are required (Not included).

Specification

• Model: WL‑RapidFire H2R
• Unit Size: 18.4x6.6x14cm / 7.2x2.6x5.5in (WxDxH)
• USB‑C to C / USB‑C to A Cable Length: 80cm / 31.5in
• Power Adapter Cable Length: 120cm / 47.2in
• Unit Weight: 581g / 20.5oz
• Housing Material: Aluminum Alloy
• Power LED: Blue; HDD LED: White; RAID LED: Blue

In the Box

• 1 x Dual Bay USB‑C 3.5" SATA HDD Enclosure
• 1 x Power Adapter
• 2 x Screwdriver
• 1 x USB‑C to USB‑C Cable
• 1 x USB‑C to USB‑A Cable
• 1 x Quick Start Guide
• Several Screws

Warm Tips

• Be sure to make a backup of your data before you set/reset the RAID mode, otherwise your data will be lost.
• The performance will be limited if the host USB‑C port standard is lower than USB3.2 Gen2x2.
• For 2.5'' hard drives, additional 2.5'' to 3.5'' mounting brackets are required (Not included).
• Connect up to 3 products via Daisy Chain.
• Supports auto‑sleep function, automatically sleeps after 15 minutes of no operation.
• When installing the hard disk, use screws for better stability.
• If the SSD is brand‑new and unformatted, please perform partition installation so that the computer can read the data normally. If the SSD is formatted and has stored data, you have no need to perform partition installation because the computer can read the data normally.

2‑Bay Docking Station – with Offline Clone

Wavlink Dual Bay Hard Drive Docking Station, USB 3.0 to SATA I/II/III Tool‑Free External Hard Drive Lay‑Flat Dock for 2.5/3.5inch HDD/SSD with Hard Drive Duplicator/Offline Clone Function, Support UASP and 2x16TB with 12V/3A Power Adapter

• ● Offline Clone Function: Wavlink hard drive docking station supports offline clone function, it can be used to clone an existing hard drive without connecting to a computer, easy to duplicate data from one to another hard drive by pressing the CLONE button for about 3 seconds. Please note the target disk must be larger than the source disk.
• ● Dual Bay Connections: This dock offers an easy access with two 2.5/3.5 inches HDD SSD SATA I/II/III drives, which is a perfect solution for backup & processing IT data, batch processing data, data recovery, formatting and file transferring. The dust‑proof design of the cover gives you a unique experience.
• ● Extensive Capacity: This dock enables access to 2 drives simultaneously (Up to 2×16TB). LED indicator light shows power and activity status. Support plug and play & hot swap. On/Off power switch for hard drives protection. Compatible with Windows, Mac OS, Linux and Android. Note: Your phone should support OTG function then you can easily read the hard disk data.
• ● UASP Accelerated: Super speed USB 3.0 data file transfers (up to 5 Gbps/420MB/s) from your computer to back‑up files and centralize storage for convenient access. Up to 70% faster at read speed and 40% faster at write speed over traditional USB 3.0, downward compatible with USB 2.0/1.1.
• ● We Care For You: This adapter features a light weight, perfect for the occasion of home office, watching movies, entertainment etc. What you will get: 1 x USB 3.0 Dual Bay Docking Station, 1 x USB‑B to USB‑A Cable, 1x Power Adapter 12V/3A, 1 x USB‑A to USB‑C Adapter, 1 x Quick Start Guide. 1‑Year worry‑free warranty (extra 6 months for registered members) and life‑long friendly customer service and technical support.

Wavlink USB to SATA Dual‑Bay External Hard Drive Docking Station

• SATA Drives Only: This docking station is not compatible with IDE drives. It is compatible with all 2.5 inch and 3.5 inch SATA HDD and SSD.
• Equipped Type‑C Port: The type‑c converter is compatible with your USB C devices, like thunderbolt 3 laptop, computer with USB‑C port & USB C Android phone.
• Considerate Design: Four anti‑skid footpads on the bottom of the product provide maximum protection for your device from sudden sliding off and insure the stability.
• Smart Auto‑sleep Mode: The auto sleep mode greatly reduces the invalid energy consumption, prolongs the service life of the hard disk and protects the hard drive data for you.
• Stable Power Supply: Equipped with 12V/3A power adapter to meet the power consumption requirements of large‑capacity hard drives. Please connect the power adapter when using.

Features

• Support maximum capacity up to 2x16TB.
• Support UASP accelerated transfer protocol.
• Automatic replication of HDD or SSD (clones from Source Disk A to Target Disk B) at a click of the button.
• Use the dedicated DC power adapter certified by PSE.
• Plug and play. No software, drivers or complicated installation required.

Instructions on How to Connect the Dock to the Computer

1. Please unplug the DC power adapter to make sure that the power is off before starting.
2. Insert HDDs/SSDs into the slots vertically and slowly until they stick. (One HDD/SSD is also supported)
3. Connect the power adapter and turn the "ON‑OFF" switch on.
4. Connect the USB cable to the computer then you can use it as your computer's external hard drive.

How to Operate Offline Clone Function

1. Please unplug the DC power adapter to make sure that the power is off before starting.
2. Insert Source Disk into hard drive bay A, then insert Target Disk into hard drive bay B.
3. Make sure the USB cable is disconnected from computer.
4. Connect the power adapter and turn the "ON‑OFF" switch on.
5. Hold the CLONE button for about 3 seconds, when all leds turn on, the clone progress will start.
6. Four lights (25%, 50%, 75%, 100% ) will turn solid blue when the cloning process is completed.
7. Finally turn the "ON‑OFF" switch off, disconnect the power adapter and eject your drives.

Tips for Offline Clone

• The capacity of target disk must be larger than the source disk.
• Please confirm that your source drive and target drive can both work properly.
• Please connect the 12V power adapter to ensure a stable power supply for transmission.
• To avoid data transfer errors, overheating and damage to the device, please make sure that there are no faulty driver cells.
• To avoid data loss, do not remove or insert drives when one drive is working in the docking station. Please power off the dock before removing.
• Please confirm the target drive have no data. If you have existing data on the target drive, the cloning process will eliminate your target drive's data. Because the target drive will be cloned to be the same as the source drive, partition, format and data are the same too.

• Two Powerful Solutions – Choose RAID enclosure for data safety/speed, or clone dock for easy offline copying and drive swapping.
• High‑Speed Transfer – USB 3.2 Gen 2 (10 Gbps) on RAID model, USB 3.0 (5 Gbps) on clone dock – both with UASP acceleration.
• Massive Capacity – Support up to 44TB (RAID) or 32TB (clone) total storage.
• Hot‑Swap & Plug‑and‑Play – Both support easy drive swapping without powering down.
• Versatile Compatibility – Works with Windows, Mac, Linux, Android, and more.
• Smart Cooling & Auto‑Sleep – Active cooling (RAID model) or passive cooling (clone dock) with energy‑saving sleep modes.
