AC1200/LAN 100MBps/up to 200M

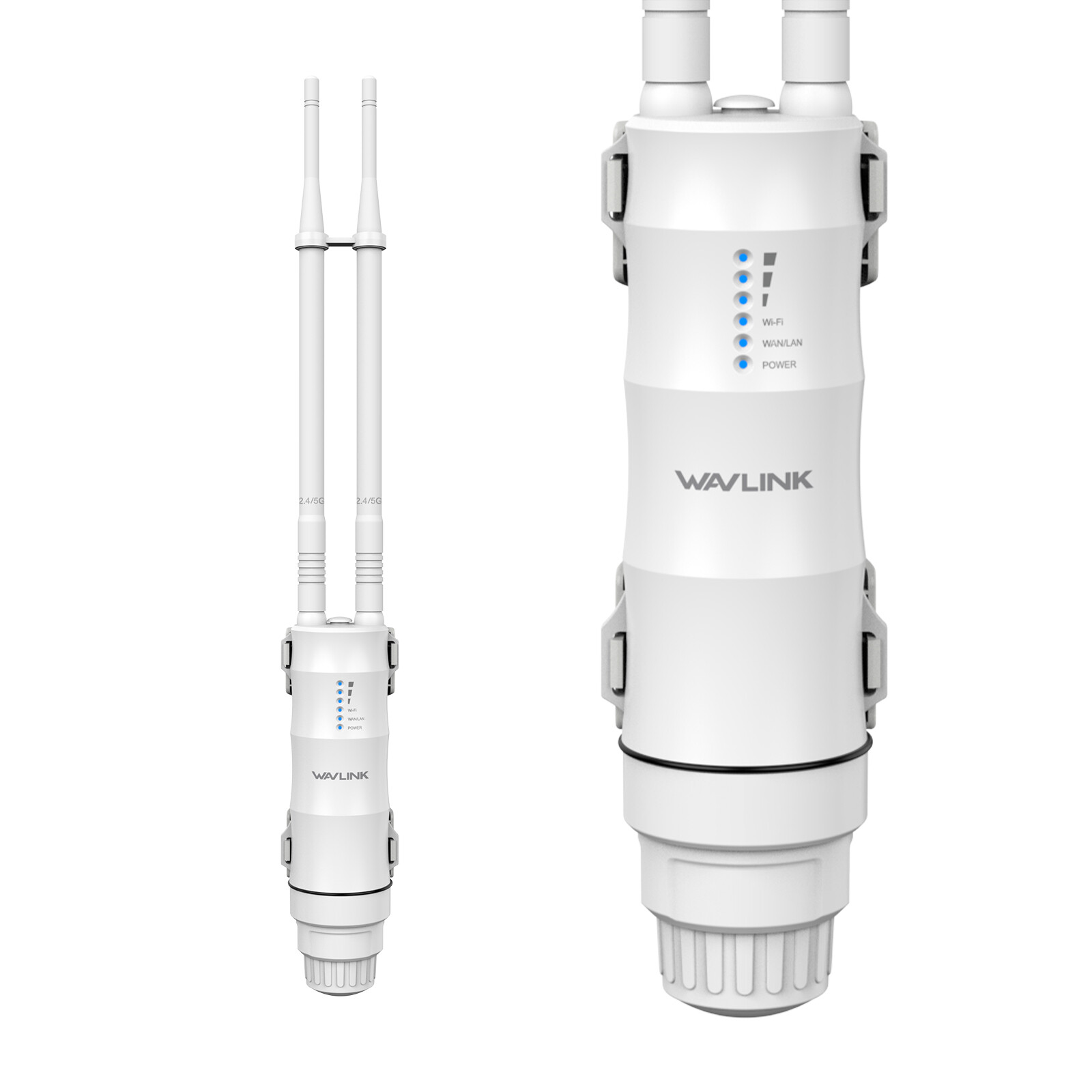

WAVLINK AC1200 Dual Band Outdoor Access Point - Expand Your Wi-Fi Coverage to the Vast Outdoors!
The WAVLINK High-Power Wi-Fi AP/Repeater/Extender is mainly used for providing reliable Wi-Fi service in large areas such as factories,
communities, streets, etc. The AP/Repeater/Extender can take an existing 2.4GHz or 5GHz wireless signal, repeat it, and extend it to
a longer range where it is too far away for the router or access point to reach. And it supports transmission speeds of up to 300Mbps
over 2.4G band and 867Mbps over 5G band. It has two external antennas, providing even better wireless performance, transmission rates,
and stability. Automatically avoids channel conflicts using its channel selection feature.
Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments. For example,
it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.
Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool, school,
park, playground, or outdoor parking lot.
Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably even
when exposed to harsh outdoor conditions or temporary rain.
7dBi Omni Directional Antenna
The AC1200 outdoor access point features two hign-gain 7dBi omni directional antennas, designed to enhance the WiFi signal equally
in all directions, ensuring broader coverage compared to standard directional antennas.
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 200m(Change with the Actual Environment)
Features
- Complies with IEEE 802.11 a/b/g/n/ac standards.
- Simultaneous Dual Band [email protected]+867Mbps@5GHz.
- Easy installation, flexible placement.
- Supports 802.3AT/AF POE and Passive PoE to supply power.
- Supports Router, AP, Repeater modes.
- Support FIT AP with WAVLINK AC manager.
- Supports 128 bit WPA/WPA2(TKIP AES )
- Features 2 x RP-SMA connectors for external antennas.
- Robust weatherproof enclosure design.
- 15KV ESD and 4KV Lightning Protection.
- Features 6 x status LED indicators.
In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
AC1200/Dual Gigabit Port/up to 300M Unlock Lightning-Fast Wi-Fi with AC1200 Dual-Band Technology: Experience the latest generation of Wi-Fi,
fully compliant with IEEE 802.11 ac/a/b/g/n standards. Enjoy dual-band speeds of up to 5GHz (867Mbps) and 2.4GHz (300Mbps),
perfect for streaming HD content, online gaming, and other bandwidth-intensive activities.With the powerful MT7621A chip,
you can connect 64-96 devices simultaneously, making it ideal for large homes, or outdoor events.Flexible Operation Modes & Power Over Ethernet for Ultimate Convenience& Dual Gigabit Ethernet Ports:
Our device supports Router, Access Point (AP), and Repeater modes, giving you the flexibility to customize your network setup.Plus, with integrated Power over Ethernet (PoE), you can install it in areas without power outlets by combining your power and
network data connection into a single RJ-45 cable. Additionally, ourDual Gigabit(1000Mbps) LAN/WAN Ethernet Ports support
10/100/1000Mbps speeds,10x faster thanstandard Ethernet ports, so you can enjoy lightning-fast connectivity. Long-Range Wi-Fi Coverage with 4 x 7dBi Detachable Omni-Directional Antennas: Our high-gain antennas strengthen your
Wi-Fi signal and expand coverage in open areas, while our stability technology automatically avoids channel conflicts.
With High Power Amplifiers (PA 800mW), you'll enjoy stronger penetration and longer range coverage than standard access points,
making it perfect for large areas like factories, streets, or outdoor events.Built to Withstand the Elements with IP65-Rated Weatherproofing : Our device features a rugged, heat-resistant case that
ensures continued operation in harsh outdoor environments, withstanding extreme temperatures (-30°C70°C / -22°F158°F),
humidity, and weather conditions. With 15KV ESD and 4KV lightning protection, you can trust that your connection will remain stable.
We've also coated key parts with waterproof glue to prevent leakage, giving you peace of mind in any weather condition.What You Get : All Wavlink products come with a high-quality after-sale service. Please feel free to contact us anytime
if you have any question, we will do our best to help you. In the Box: AC 1200 Dual Band Outdoor Ap/Range Extender,
2x 2.4 G Omni Antennas, 2x 5G Omni Antennas, 1x RJ 45 Networking Cable, 1x Power Adapter, 1x PoE Converter,
1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide. 12-month worry free warranty
and life-long technical support.Specification:
Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
Antennas: 4x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK,WPA 2/ WPA 3 Mix
LEDs: 7x Status LED Indicators
Power adapter: 100~ 240V/50~60Hz; DC 24V (Passive PoE)In the Box:
1 x Wi-Fi AP/Range Extender/Mesh Extender
4 x Detachable Omni Antennas
1 x RJ45 Networking Cable
1 x Power Adapter
1 x POE Converter
1 x Main body holder
2 x Cable ties
1 x Screw fittings
1 x Quick Guide
ATTENTION:
Ensure that you use a certified CAT5e/CAT6 Ethernet cable with RJ45 connectors.Make sure the length of the Ethernet cable from POE to the device is less than 60 meters（196 ft）.
AX1800 WiFi 6/1G LAN/up to 300M Specifications1.-Model: WN573HX1 (WiFi 6 AX1800 Dual Band Outdoor WiFi Extender) 2.- Ethernet Port (RJ45): 1 x 10/100/1000Mbps WAN/LAN PORT (POE) 3.- Power Adapter: Input:100-240 Va.c. 50/60Hz; DC 54V/0.3A Power over Ethernet(Passive); DC 48V Power over Ethernet(Active) 4.-Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11n/b/g 2.4 GHz 5.-Frequency: Dual Band, 5GHz: 1201 Mbps, 2.4GHz: 574 Mbps 6.- Working Modes: AP, Repeater, Mesh Router, Mesh Extender 7.- Encryption: WPA2-PSK, WPA3-PSK, WPA2-PSK MIX 8.- Roaming Protocol: 802.11k/v 9.- Antenna: 2 x 8dBi 2.4GHz Omni Directional Antennas, 2 x 8dBi Omni Directional 5GHz Antennas 10.-Operation Environment: Operation temperature: 0ºC~40ºC, Operation RH (relative humidity): 10%~90%,noncondensing 11.-Storage Environment: Storage temperature: -10~70℃, Storage RH: 10%~90%,noncondensing 12.-WAN Type: PPPoE, Dynamic IP, static IP13.-Cloud Service: Auto / OTA Firmware Upgrade
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet CableFeaturesEnjoy True WiFi 6 Speed -The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, avoiding wireless
interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1,
you can enjoy HD videos, smooth gaming, etc. even outdoors.Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other
modesto meet your different needs and apply to more outdoor connection scenarios.
Router/AP Mode is ideal for converting wired connections into wireless networks,
while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.Designed for Harsh Outdoor Conditions -Equipped withIP67 waterproof enclosure,
15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder
other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind
and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.Optional PoE Power Supply - Supports 802.3AF/AT active PoE and passive PoE,
transferring data and charging the product with a single Ethernet cable, so you can install
the product outdoors where power outlet is not available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length
should not exceed 100m/328ft.Seamless WiFi Roaming -The4x8dBi omnidirectional antennasand two built-in
high-power amplifiers provide extreme WiFi coverage and penetration.
Also supports Mesh technology, one-click brings more device connections,
greatly expanding the WiFi coverage, and eliminating every network dead zone.AX3000 WiFi 6/1G LAN/8dBi Omni/up to 300M
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
AX3000 WiFi 6/1G LAN/7dBi Omni/up to 300M
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- 3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.
Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 x 7dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.
AX3000 WIFi 6/1G LAN/12dBi Directional/(PtP/PtMP up to 3Km)
Designed for Harsh Outdoor Conditions- IP67-rated waterproof housing that ensures continued
operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture.
Lightning protection and weatheproof design ensure stable connection in harsh outdoor conditions.
Note: The PoE part of the router is not waterproof.
Enjoy True WiFi 6 Speed- The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless
interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3,
you can enjoy HD videos, smooth gaming, etc. even outdoors.
Optional PoE Power Supply- Supports 802.3AF/AT active PoE and passive PoE, transferring data
and charging the product with a single Ethernet cable, so you can install the product outdoors where
power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or
above cable and the length should not exceed 100m/328ft.
Seamless WiFi Roaming- The built-in 4x12dBi directional antennas and high-power amplifiers
provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology,
one-click brings more device connections, greatly expanding the WiFi coverage,
and eliminating every network dead zone.
Multiple Modes, Flexible Use -Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to
meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for
converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless
WiFi with a single network name and password.
3Km Wireless Data Transmission- Specially designed for outdoor uses, ideal for long distance wireless
data transmission over 3km/1.9miles(only for paired PtP or PtMP transmission), tested in the barrier-free field.
Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.
