WAVLINK Thunderbolt 5 Docking Station WAVLINKThunderbolt™ 5 Docking Station If you have any questions, please contact us. We will do our best to answer them. We wish you a pleasant shopping experience. Your package will take one day to process and be shipped from the country warehouse where you purchased it. WAVLINK Intel Certified Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Single or Dual 6K/8K Display, 3x TB 5 Downstream USB-C 80Gbps, 4x USB-A 3.2 10Gbps, for Mac & Windows Thunderbolt 5/4, USB4 & USB-C Laptops Key Features Unleash TB5 Speed

Experience the revolutionary performance of the latest Intel Thunderbolt 5 technology. Benefit from a stable 80Gbps bi-directional bandwidth and the dynamic Bandwidth Boost feature, providing up to an incredible 120Gbps when needed for tasks like high-resolution display output, ensuring smooth and efficient data handling.

Mac Display Capabilities

Seamlessly connect external monitors to your Mac. Supports up to Dual 6K@60Hz external monitors on Macs with M1/M2/M3/M4 Pro/Max, M4 Base, or Intel chips. Macs with M1/M2 Base chips support up to Single 4K@60Hz, while M3 Base models support up to Single 6K@60Hz. (Note: macOS systems do not support connecting three external displays through this dock).

Windows Display Versatility

Elevate your Windows workspace or gaming setup. Connect up to Triple external displays when using a Windows 11 (23H2 or later) PC with a Thunderbolt 5 port. Achieve stunning visuals with resolutions up to Single 8K@144Hz, Dual 2x8K@60Hz, or even Triple 3x 4K@144Hz.

Robust PD Charging

Effortlessly power your demanding laptop through the single Thunderbolt 5 Host connection with MAX 140W Power Delivery output. Keep your other essential devices charged simultaneously via the downstream Thunderbolt 5 USB-C ports, offering up to 30W (on one port) and up to 15W (on two ports).

High-Speed Peripherals

Connect all your devices with speed and ease. This dock features 4x high-speed USB-A 3.2 Gen 2 ports offering data transfer rates up to 10Gbps. Quickly import photos and videos from your camera or drone with the SD 4.0 Card Reader, supporting UHS-II speeds up to 312MB/s. Get a reliable, ultra-fast wired internet connection via the up to 2.5Gbps Ethernet port.

Important Compatibility

Triple external display requires a Windows 11 (or later) PC with a Thunderbolt 5 port. Achieving higher resolutions (6K/8K) and refresh rates (>60Hz) often necessitates Display Stream Compression (DSC) support on both your laptop's GPU and the monitor(s). Actual display configurations and performance vary based on your laptop's specific port type (Thunderbolt 5/4/USB4, USB-C Alt Mode) and operating system.

Systems / Devices Compatibility

• Windows 11 or higher
• Mac OS 14.6 or later (M chip)
• Compatible with Thunderbolt 5/4, USB4, and USB 3.0 computers featuring a USB-C port.

How to Confirm if the Type-C Port of Your Laptop Supports Video Output and Charging?

1. 1 Please check the model of your laptop, it should be on the back of the label.
2. 2 Search “brand + the model number of the device + manual” in Google, for example: “asus ux435 manual”.
3. 3 Check the manual and navigate to the view and check the type-c specification. If it states it supports power delivery which means it supports charging. If it states the type-c port supports display which means it could support video output. If the specification states bandwidth the type-c port supports only, which means the type-c port might not support video output and charging. You could also contact the manufacturer to confirm that.

Multiple Display Resolution (Max. Resolution)

Notice: Please make sure the type-C port of your host supports video output.

Windows 11 or higherConnectionSingle DisplayDual DisplayTriple DisplayVia Thunderbolt 5Up to 8K@144HzUp to 8K@60HzUp to 4K@144HzVia Thunderbolt 4 / USB 4Up to 8K@60HzUp to 6K@60HzNot supportedVia USB-C Alt ModeUp to 4K@60HzNot supportedNot supportedVia Thunderbolt 3Not supportedNot supportedNot supportedmacOS (14.6 or later)Mac ChipSingle DisplayDual DisplayTriple DisplayM4 Base / Pro / MaxUp to 8K@60HzUp to 6K@60HzNot supportedM1 / M2 / M3 Pro and MaxUp to 6K@60HzUp to 6K@60HzNot supportedM1 / M2 BaseUp to 4K@60HzNot supportedNot supportedM3 BaseUp to 6K@60HzNot supportedNot supportedSpecification & PackageSpecification

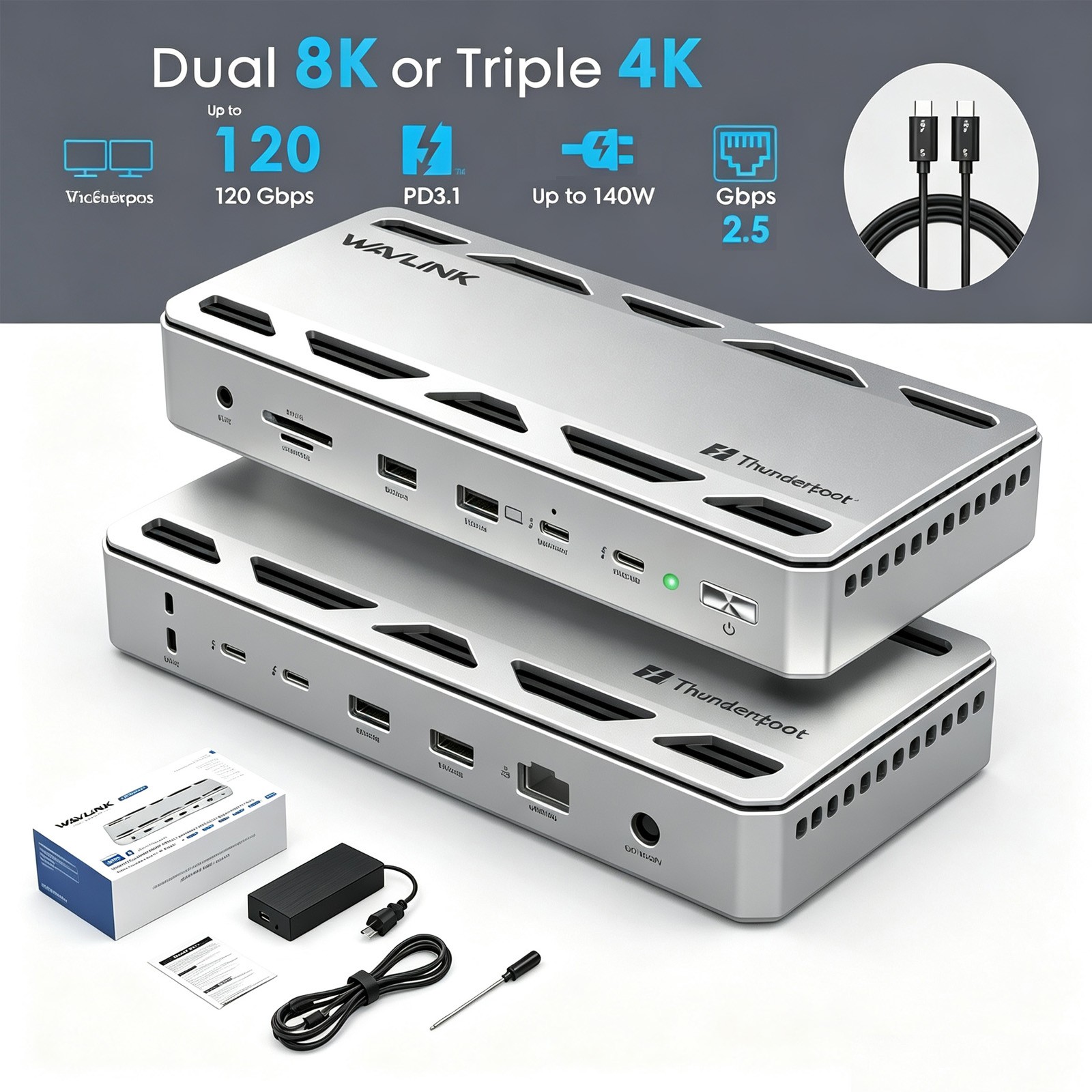

• Model: WL-UTD58
• Ports — Front: 1× Combo Audio Jack; SD/Micro SD Card Reader (UHS-Ⅱ, SD 4.0); 2× USB-A (10Gbps); 1× TBT 5 UFP (Host, Max. 140W Charging, Video); 1× TBT 5 DFP (80Gbps, Video, PD 30W).
• Ports — Rear: 2× TBT 5 DFP (80Gbps, Video, Charging); 2× USB-A (10Gbps); 1× RJ45 Ethernet; 1× DC IN (20V).
• Unit Size: L×W×H: 21.9cm×9.7cm×3.5cm / to C / HDMI Cable Length: 100cm / 39.4in
• Unit Weight: 610g / 21.4oz
• Material: Aluminum alloy

Features

• 1× Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer, 140W instant charging for the USB-C laptop.
• 3× Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth, one of them supports 30W instant charging for the downstream devices.
• 4× USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.
• 1× RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.
• 1× UHS-Ⅱ SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s, and compatible with UHS-Ⅰ devices.
• 1× Combo 3.5mm mic/headphone jack for clear audio in and out.

In the Box

• 1 x Thunderbolt™5 Multifunctional Docking Station
• 1 x 1m USB-C to USB-C Thunderbolt™5 Cable (80/120Gbps)
• 1 x 20V Power Adapter
• 1 x Screwdriver
• 1 x Quick Start Guide

Warm Tips

1. Please ensure your laptop's USB-C port supports video output (DisplayPort Alt Mode) and charging (Power Delivery) to fully utilize all features of this hub.
2. Triple External Displays: Support for three external displays is potentially available only when connected to a laptop featuring a Thunderbolt 5 port and running Windows 11 or later. Actual support depends on the specific laptop's specifications.
3. macOS System Limitation: macOS systems do not support triple external displays through this dock. The number and resolution/refresh rate of supported external displays depend on the specific Mac chip model (M1/M2/M3/M4 Base/Pro/Max). Please refer to the compatibility list for details.
4. High Resolution/High Refresh Rates: Achieving 6K/8K resolutions and refresh rates above 60Hz typically requires both your laptop (GPU) and external monitor(s) to support DSC (Display Stream Compression).
5. Accessories: USB-C to HDMI/DP cables and the security lock are not included and must be purchased separately.

Instructions about the Monitor(s)

• Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
• Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and host GPU. The bit/color depth may vary in order to support higher refresh-rates.
• Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and 6K when the laptop lid is closed (clamshell mode).
• Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over its Thunderbolt ports. As such, resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh-rate is required, please use a USB-C to USB-C or USB-C to DisplayPort or DisplayPort to DisplayPort connection. For more information about a Mac’s external display support please Apple's or CalDigit's support webpages.
• Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on different Windows computers, please refer to the manufacturer’s website.
