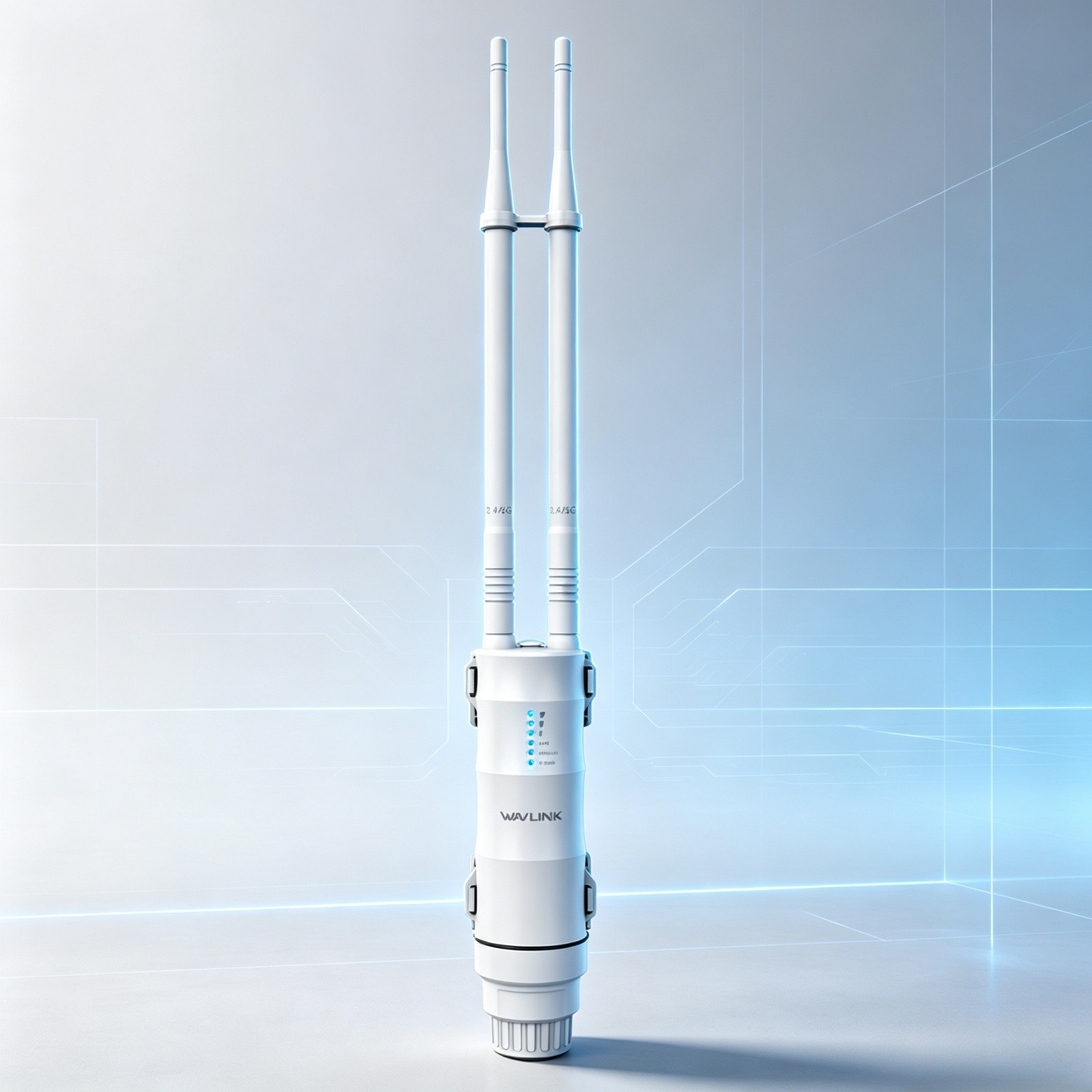

AC1200-2 Antennas
Features
- Complies with IEEE 802.11 a/b/g/n/ac standards.
- Simultaneous Dual Band [email protected]+867Mbps@5GHz.
- Easy installation, flexible placement.
- Supports 802.3AT/AF POE and Passive PoE to supply power.
- Supports Router, AP, Repeater modes.
- Support FIT AP with WAVLINK AC manager.
- Supports 128 bit WPA/WPA2(TKIP AES )
- Features 2 x RP-SMA connectors for external antennas.
- Robust weatherproof enclosure design.
- 15KV ESD and 4KV Lightning Protection.
- Features 6 x status LED WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 200m(Change with the Actual Environment)
In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
AC1200 - 4 Antennas
1200Mbps Dual-Band Speed - Use the WAVLINK WING 12HP to dominate bandwidth-heavy environments with
split-scenario optimization. The 5GHz Band (867Mbps) is dedicated to 4K video surveillance feeds,
while the 2.4GHz Band (300Mbps handles 64-96 low-bandwidth IoT devices (smart irrigation sensors,
RFID tags, POS systems) without congestion.
Blanket Every Acre with Mesh Network - Build a bulletproof WiFi blanket across vast homesteads with
WAVLINK’s Everything Mesh Technology. Seamlessly connect your farmhouse, barns, poultry coops,
and distant irrigation hubs into one network. As you move from the kitchen to the yard, from the stable to the farm,
enjoy uninterrupted connectivity without drops or lags. Note: It only meshes with WAVLINK devices which support
everything mesh technology.
Industrial-Grade Signal Dominance - Powered by a high-power chip and 4x 7dBi antennas (2x 2.4GHz + 2x 5GHz),
this outdoor WiFi booster expands signal to 300m away per unit(Change with the actual environment), effortlessly linking barns,
pastures, and farmhouse basements. Engineered for outdoor scenarios, it juggles 64-96 devices simultaneously—
from GPS cattle collars and smart milking systems to 4K yard cams—without throttling.
Dual Gigabit Ports & PoE Freedom - Equipped with dual 10/100/1000Mbps Ethernet ports, the outdoor AP enables
lightning-fast data transfer rates and provides an extra wired connection possibility for flexible use. 54V Active/Passive PoE
allows you to power the device via Ethernet from 100m away, getting rid of risky outdoor wiring needed.
Note: The PoE converter is not waterproof, please install it indoors.
Weatherproof Enclosure& Enterprise-grade Security - IP65 waterproof & heat-resistant case ensures continued
operation on harsh outdoor environments, withstanding broad ranges of temperature(-20°C~50°C), while
15KV ESD/4KV lightning protection prevents damage in electrical surges. Supporting WPA2/WPA3-MIX
and WPA/WPA2-Enterprise, this outdoor router is perfect for businesses, organizations, and individuals
requiring high-level security.
Fat/Fit AP Mode Flexibility - Under Fat AP Mode, the repeater works as a regular wireless AP, ideal for quick
deployments without complex configurations. Fit AP Mode unlocks centralized control via a WAVLINK AC Controller(sold separately),
allowing large-scale management — imagine updating firmware on multiple routers spanning 5,000-acre cattle ranches or
balancing bandwidth for 10-villa eco-resorts from one dashboard.
Specifications:
- Model: WL-WN572HP3-B/WING 12HP
- Frequency: 2.4GHz & 5GHz, speed up to 1,200Mbps
- Interfaces: 1x 10/100/1,000Mbps WAN, 1 x 10/100/1,000Mbps LAN
- Antennas: 4 x 7dBi omni antennas
- Operation modes: Repeater, AP(FAT/FIT), Mesh Router, Mesh Extender
- IP65 Waterproof: 15KV ESD and 4KV lightning protection
- Security: WPA2-PSK, WPA1-PSK/WPA2-MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise, Open.
- LEDs: 7 x status LED indicators
- Power adapter: 100-240V/50-60HZ; DC 54V(Active PoE and Passive POE)
- Support 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Support Fat AP Mode.
- Support Fit AP Mode with WAVLINK AC controller.
- Distance: Outdoor 300m(Change with the actual environment)
- Unit Size(without antennas): 21.5cm x 6.2cm x 6.2cm/8.5x 2.4x 2.4in (L x W x H )
- Antenna Length: 25cm/9.8in
Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
5. Under Mesh Mode, it only meshes with WAVLINK devices which support everything mesh technology.
In the Box
- 1 x AC1200 Wireless Outdoor Access Point
- 4 x Omni Antennas
- 1 x RJ-45 Networking Cable
- 1 x Power Adapter
- 1 x PoE Converter
- 1 x Main Body Holder
- 2 x Cable Ties
- 1 x Screw Fittings
- 1 x Quick Start Guide
AX1800 WiFi 6
Designed for Harsh Outdoor Conditions - Equipped with IP67 waterproof enclosure, 15kV ESD protection and
6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube
high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage,
making it more suitable for outdoor use.
Enjoy True WiFi 6 Speed - The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 1201Mbps and 2.4GHz 574Mbps, avoiding wireless interference &
congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos,
smooth gaming, etc. even outdoors.
Optional PoE Power Supply - Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging
the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
Seamless WiFi Roaming - The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme
WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections,
greatly expanding the WiFi coverage, and eliminating every network dead zone.
Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your
different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections
into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
AX3000 WiFi 6 - 4 High-Gain Antennas
Designed for Harsh Outdoor Conditions - Equipped with IP67 waterproof enclosure, 15kV ESD protection and
6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube
high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage,
making it more suitable for outdoor use.
Enjoy True WiFi 6 Speed - The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion
and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
Optional PoE Power Supply - Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the
product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
Seamless WiFi Roaming - The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme
WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections,
greatly expanding the WiFi coverage, and eliminating every network dead zone.
Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet
your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired
connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
AX3000 WiFi 6 Directional - Long Range
Designed for Harsh Outdoor Conditions - IP67-rated waterproof housing that ensures continued operation on harsh
outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof
design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
Enjoy True WiFi 6 Speed - The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports
dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and
offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
Optional PoE Power Supply - Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging
the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
Seamless WiFi Roaming - The built-in 4x12dBi directional antennas and high-power amplifiers provide extreme WiFi
coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections,
greatly expanding the WiFi coverage, and eliminating every network dead zone.
Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your
different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections
into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
3Km Wireless Data Transmission - Specially designed for outdoor uses, ideal for long distance wireless data transmission
over 3km/1.9miles(only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas
can significantly improve the transmission and reception performance of wireless signal.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
AX3000 WiFi 6 - 6 Antennas
Designed for Harsh Outdoor Conditions - IP67-rated waterproof housing that ensures continued operation on harsh
outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof
design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
Enjoy True WiFi 6 Speed - The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports
dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and
offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
Seamless WiFi Roaming - The 6x7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage
and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding
the WiFi coverage, and eliminating every network dead zone.
Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different
needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks,
while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
Powered by PoE and Flexible Installation - Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter,
this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.
Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 x 7dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
BE5100 WiFi 7 - 2.5G Port
Dual Band 802.11BE Standard WiFi 7 with 4-Stream: Designed with the latest Wi-Fi 7 technology, achieve full speeds
of 4323 (5 GHz band) and 688 Mbps (2.4 GHz band) with 4 streams, optimized signal distribution throughout your place,
Enjoy seamless 8K streaming, AR/VR gaming, incredibly fast downloads/uploads and high performance on latest
WiFi 7 laptops and devices, like the iPhone 16 Pro or above and Samsung Galaxy S24 UltraLong Range WiFi Coverage up to 300 meters: The upgraded 4x 8dBi omni-directional detachable fiberglass antennas
and two built-in high power amplifiers provide up to 300m (radius) WiFi coverage and up to 256 connection terminalActive & Passive POE Support: Empower your outdoor network setup with optional PoE (Power over Ethernet) support.
Compatible with both 802.3AF/AT active and passive PoE. Note: The PoE converter is not waterproof.
Please use CAT5E or above cable and the length should not exceed 100m/328ftMultiple Working Modes for flexible Connectivity: Supports mesh, AP, router, repeater, AP + repeater and other modes to meet
your different needs and apply for more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections
to wireless networks, while in mesh mode you can enjoy seamless WiFi with a single unified network name and password. Note: Mesh mode is only available for wavlink series productsDesigned for Harsh outdoor conditions: Equipped with IP67 waterproof housing, 15 KV ESD protection and 6 KV lightning protection,
it can work normally in rain/snow/wind/thunder and other bad weather conditions. The fiberglass tube high-gain antennas can not only
resist strong wind and corrosion, but also increase the WiFi coverage, making it more suitable for outdoor use
Spefications:
Frequency: dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.
Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
