Designed for Large Outdoor Spaces & Open-Area Coverage: Ideal for single-family homes, large yards, farms,
estates, garages, RV parking areas, and other open outdoor environments where indoor routers cannot reach.
Designed to extend WiFi across spacious outdoor areas with stable, long-range coverage.Reliable Long-Range Outdoor Connectivity: Equipped with four custom-engineered 8dBi fiberglass antennas,
this outdoor access point provides focused signal distribution and dependable wireless coverage over extended
distances. Engineered for consistent long-range connectivity and stable transmission in demanding outdoor
deployments where consistent transmission matters more than antenna quantity.True IP67 Weatherproof for Extreme Outdoor Conditions: Built with a true IP67-rated enclosure and durable
fiberglass antennas, this outdoor WiFi extender is fully protected against heavy rain, snow, dust, strong winds,
UV exposure, and extreme temperatures—ensuring reliable performance in harsh outdoor environments year after year.WiFi 6 AX1800 Dual-Band Performance — Starlink Compatible: Featuring WiFi 6 (AX1800) dual-band
technology (2.4GHz & 5GHz) with MU-MIMO and Beamforming, it efficiently supports multiple devices
while reducing interference and congestion. Fully compatible with Starlink systems,
making it an ideal solution for remote, rural, and off-grid internet setups.Flexible Setup Modes with PoE & WAVLINK Support: Supports multiple operating modes including Access Point (AP),
Router, Repeater, and WISP modes to fit different network needs. Compatible with both 802.3af/at PoE and
Passive PoE power supply for flexible outdoor installation using a single Ethernet cable. Supports Mesh
networking within the WAVLINK ecosystem and is backed by WAVLINK’s professional customer support for added peace of mind.Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
Enjoy True AX3000 WiFi 6 Speed - The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps,
avoiding wireless interference & congestion and offering lightning-fast Internet speed.
Support work with starlink/ router/ moden/ wifi extender.Long Range WiFi Coverage - The upgraded 4x 8dBi omni-directional detachable fiberglass antennas and
two built-in amplifiers provide up to 200-300m (radius) WiFi coverage and up to 256 connections.
Equipped with gigabit ethernet port that supports 1000/100/10Mbps network.Indoor/Outdoor Use - Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection,
it can work normally in rain/snow/wind/thunder and other bad weather. Environment :
Operating Temperature: -20–50 ℃ (-4–122 ℉), Storage Temperature: -30–70 ℃ (-22–158 ℉),
Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 10–90% RH non-condensing.Optional PoE Power Supply - Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging
the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to
meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for
converting wired connections into wireless networks, while under Mesh Mode you can enjoy
seamless WiFi with a single network name and password. Note: Mesh mode is only available for wavlink series products.Advanced Wireless Tech - Supports the latest Mesh WiFi(Note: Mesh mode is only available for wavlink series products.),
Seamless Roaming, Band Steering, MU-MIMO and Beamforming technologies.Wireless Security - WPA2-PSK, WPA2/WPA3-MIXSpecification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

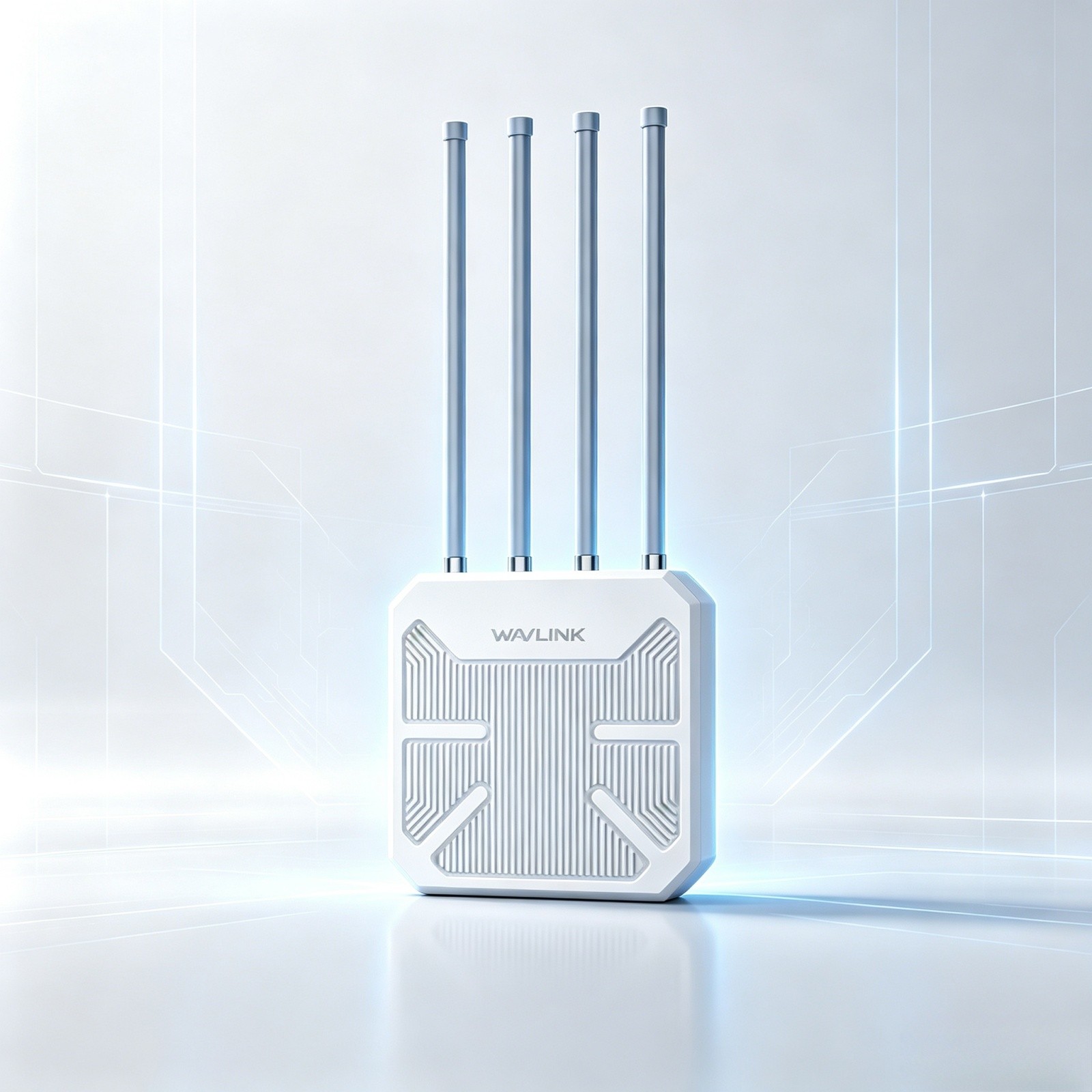

Dual Band 802.11BE Standard WiFi 7 with 4-Stream: Designed with the latest Wi-Fi 7 technology,
achieve full speeds of 4323 (5 GHz band) and 688 Mbps (2.4 GHz band) with 4 streams,
optimized signal distribution throughout your place, Enjoy seamless 8K streaming, AR/VR gaming,
incredibly fast downloads/uploads and high performance on latest WiFi 7 laptops and devices,
like the iPhone 16 Pro or above and Samsung Galaxy S24 UltraLong Range WiFi Coverage up to 300 meters: The upgraded 4x 8dBi omni-directional detachable fiberglass
antennas and two built-in high power amplifiers provide up to 300m (radius) WiFi coverage and up to 256 connection terminalActive & Passive POE Support: Empower your outdoor network setup with optional PoE (Power over Ethernet) support.
Compatible with both 802.3AF/AT active and passive PoE. Note: The PoE converter is not waterproof.
Please use CAT5E or above cable and the length should not exceed 100m/328ftMultiple Working Modes for flexible Connectivity: Supports mesh, AP, router, repeater, AP + repeater and
other modes to meet your different needs and apply for more outdoor connection scenarios. Router/AP mode is
ideal for converting wired connections to wireless networks, while in mesh mode you can enjoy seamless WiFi
with a single unified network name and password. Note: Mesh mode is only available for wavlink series productsDesigned for Harsh outdoor conditions: Equipped with IP67 waterproof housing, 15 KV ESD protection and
6 KV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather conditions.
The fiberglass tube high-gain antennas can not only resist strong wind and corrosion, but also increase the
WiFi coverage, making it more suitable for outdoor use
Specifications
Frequency: dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.
Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
