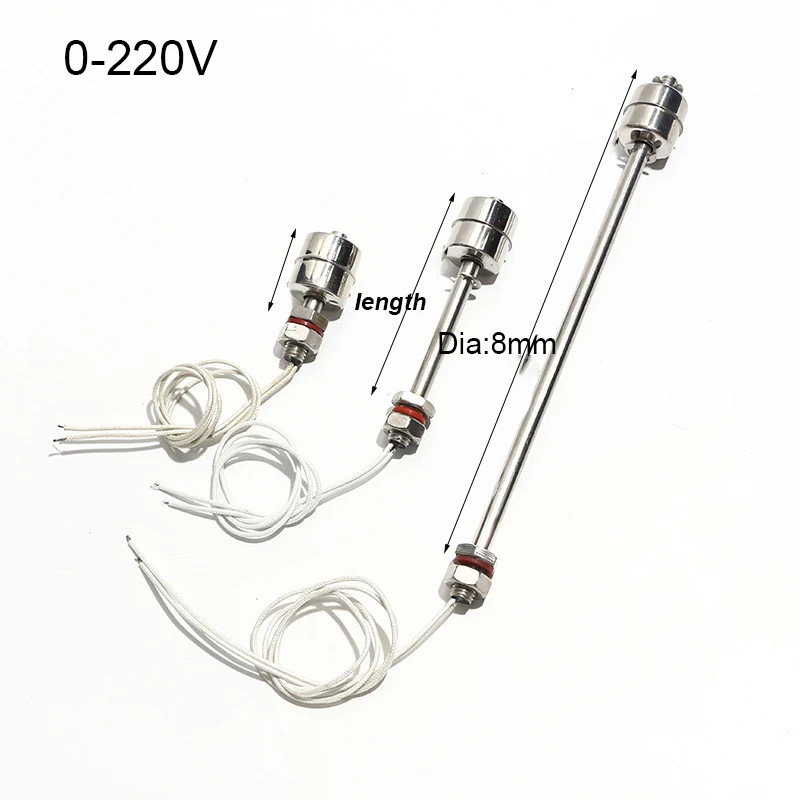

1PC High Temperature Resistant Single Ball 304 Stainless Steel Float Switch Water Level Switch Water Level Controller 0-220V
Note: For bulk orders, please Contact usNote: If you need more than one, please contact usProduct Overview

This High Temperature Resistant Single Ball Float Switch is designed for reliable liquid level detection and water level control in industrial applications. Constructed from durable 304 stainless steel, it provides corrosion and wear resistance while operating across a wide temperature range of -20~120℃. The single-ball mechanism offers accurate and responsive water level detection. Multiple tube lengths are available from 45mm to 600mm, and the length can be customized to suit different tank and reservoir requirements.

Key Features

• High-temperature resistant design: Operating temperature range of -20~120℃.
• Single ball mechanism: Provides accurate and responsive liquid level detection.
• 304 stainless steel construction: Designed for durability, corrosion resistance, and reliable operation in wet or demanding industrial environments.
• Multiple length options: Available from 45mm to 600mm for different installation requirements.
• Customizable length: Tube length can be customized.
• Wide switching voltage range: Supports 0-220V switching voltage.
• Simple working principle: Lightweight design with high reliability.
• Industrial application: Suitable for water level control and liquid level detection systems.

Specifications

• Product Name: Float Switch Water Level Controller
• Product Type: Floating Switch
• Type: Single Ball
• Main Material: 304 Stainless Steel
• Tube Length: 45 / 75 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600mm
• Temperature Range / Operating Temperature: -20~120℃
• Working Pressure: ＜1.0Mpa
• Switching Voltage: 0-220V
• Breakdown Current: 1.2Adc-Min
• Breakdown Voltage: 250Vdc-Min
• Resistance Value: 0.3Ω-Min
• Contact Rating: 20W
• Application: Industrial

Installation / Use

• Select the appropriate tube length according to the installation requirements.
• Confirm that the electrical system operates within the specified 0-220V switching voltage range.
• Ensure the installation environment is within the specified -20~120℃ operating temperature and ＜1.0Mpa working pressure.
• Install securely and ensure the float mechanism can move freely for proper liquid level detection.
• If a customized tube length is required, select the appropriate customized option when ordering.

Package Included

• 1 × Float Switch
