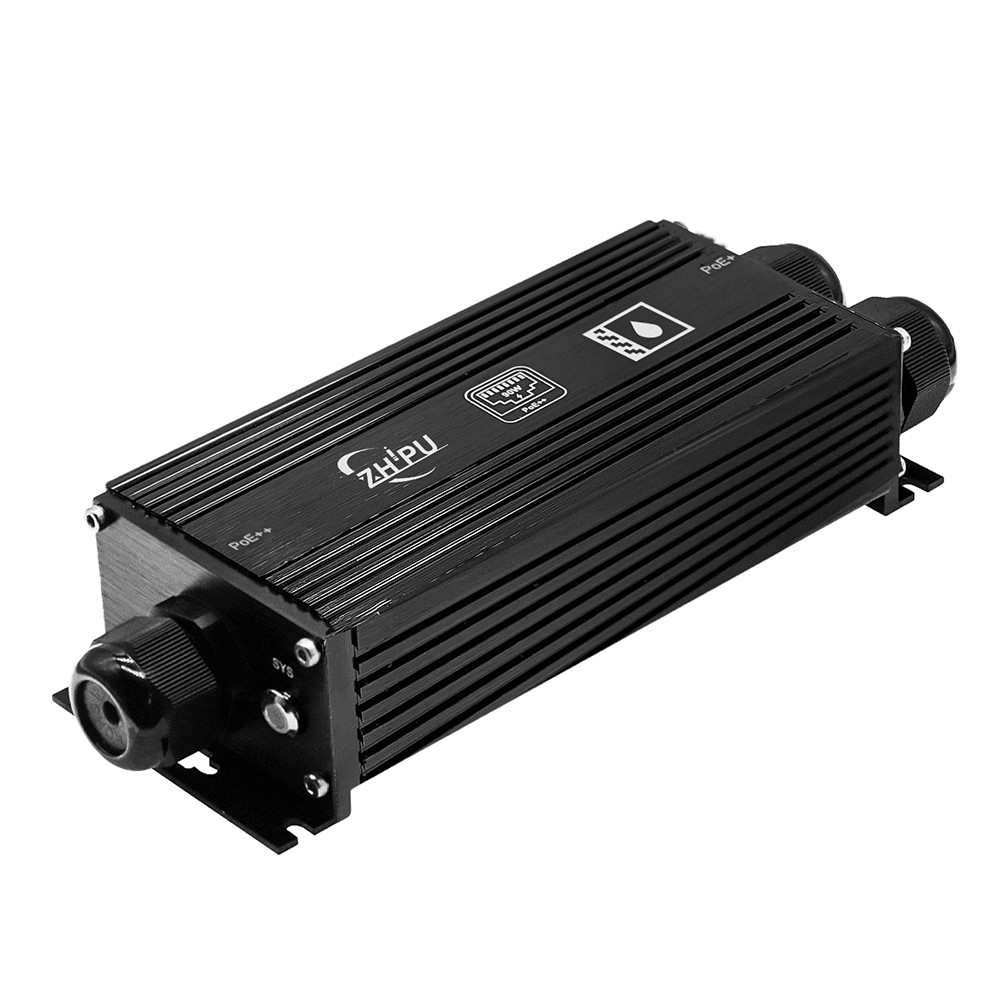

Waterproof Gigabit PoE Extender 90W IP67 IEEE802.3bt IN /1in & 2outWaterproof Gigabit PoE Extender E-lnk Industrial IP67-rated
LNK-WP-IPE102 is an industrial-gradeIP67-ratedGigabit Waterproof PoE Extender (1-in 2-out,90W) that utilizes Power over Ethernet technology. It extends1000MbpsEthernet signalsup to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of50-57Vto communication devices.
Industrial-Grade PoE Extension Solution
Featuring1-input to 2-output portconfiguration, This Waterproof PoE Extender enables reliable100-meternetwork extension while transmitting both data and PoE power without external cabling requirements.
Rugged Environmental Protection
Engineered for harsh conditions withIP67 waterproof ratingand-40°C to 80°Coperating range.
Application
- Outdoor Security Surveillance– Extends network connectivity to remote IP cameras and security devices in perimeter protection systems.
- Industrial Automation Networks– Provides extended PoE power and data transmission for sensors and controllers in manufacturing facilities.
- Intelligent Transportation Systems– Enables traffic monitoring device installation at extended distances from network infrastructure.
- Wireless Network Deployment– Powers and connects outdoor access points and wireless bridges in campus networks.
- Rail Transit Communications– Supports extended connectivity for passenger information systems and station security devices.
- Building Automation Systems– Extends network coverage for access control and environmental monitoring devices.
- Telecommunications Infrastructure– Provides extended connectivity for distributed antenna systems and network equipment.
Overview
The LNK-WP-IPE102 Series represents a breakthrough in industrial network extension technology, delivering robust Power over Ethernet capabilities in the most demanding environments. This industrial-grade IP67-rated Gigabit Waterproof PoE Extender features an advanced1-input, 2-outputconfiguration with90Whigh-power capacity, enabling reliable network expansion while maintaining both data integrity and power delivery across extended distances.
Engineered for superior performance, this industrial Waterproof PoE Extender utilizes cutting-edge Power over Ethernet technology to extend1000MbpsEthernet connectivityup to 100 meters, effectively doubling the standard network reach while providing stable50-57Vpower supply to connected communication devices. The rugged industrial Waterproof PoE Extender features completeIP67 protectionwith waterproof terminal design, ensuring uninterrupted operation in harsh conditions including extreme temperatures, moisture exposure, and dusty environments.
Operating flawlessly across an extensive temperature range from-40°C to 80°C, this hardened extender maintains reliable performance in challenging applications such asoutdoor security surveillance, industrial automation, and telecommunications infrastructure. The Waterproof PoE Extender supports multiple connected endpoints including IP cameras, wireless access points, and industrial sensors, making it an ideal solution for expanding network coverage in manufacturing facilities, transportation systems, and smart city deployments.
This versatile Waterproof PoE Extender provides network engineers with a comprehensive solution for extending both data and power connectivity in locations where conventional network infrastructure cannot reach. Its industrial-grade components and weather-resistant design ensure long-term reliability in outdoor installations, while theplug-and-playfunctionality enables quick deployment without requiring additional configuration or specialized technical expertise. The LNK-WP-IPE102 Series establishes itself as an essential component for modern industrial networks, bridging the gap between conventional Ethernet limitations and the growing demand for extended connectivity in challenging operational environments.
Why Choose Us
- Extended PoE Connectivity– Delivers full IEEE 802.3af/at/bt PoE power and data over 100-meter distances without signal degradation
- Certified Industrial Reliability– ISO9001 & FCC certified with 100% aging testing ensures 99.9% uptime in harsh environments
- Zero-Power Installation– No external power cables required with plug-and-play setup, reducing installation costs by 60%
- Advanced Network Capacity– 2K MAC address table and 10kB jumbo frame support enable seamless expansion of connected devices
- Extreme Environment Ready– IP67 waterproof rating with -40°C to 80°C operating range ensures reliability in outdoor applications
Technical Indexes
Ethernet Port
PoE Input Port
1x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port
2x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection
Support 3 grade
Power over Ethernet
PoE Standard
IEEE 802.3af/at/bt
PoE Power Supply Type
Mid-span and End-span
PoE Pin Assignment
1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage
IEEE802.3 bt 90W
PoE Output Power
Maximum 65W
Single Port PoE Output
Maximum 60W
Switch Property
Standards
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes
Store and Forward
Transmission Distance
Each extenderextends by 100m, max 3 grade Cascade, total 400m.
MAC Table
2K
Switching Capacity
6Gbps
Packet Forwarding Rate
4.46Mpps
Flow Control
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame
10K bytes
Environment
Surge Immunity
6KV, Standard: IEC
ESD Protection
6kV Contact Discharge; 8kV AirStandard: IEC 61000-4-2
Protection Level
IP 67
Explosion-Proof Rating
IK10
Operating Temperature
-40°C to 80°C (-40°F to 176°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Operating Humidity
0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)
195 x 75 x 46mm
Weight
0.6 kg
Casing
Aluminum Case
Mounting Options
Wall-mount
Certifications
Certifications
CE, FCC, RoHS
Ordering Information
Model
Description
LNK-WP-IPE102
IP67 WaterproofIndustrial Gigabit PoE Extender1 x Input 2 x Output
Mounting Options
