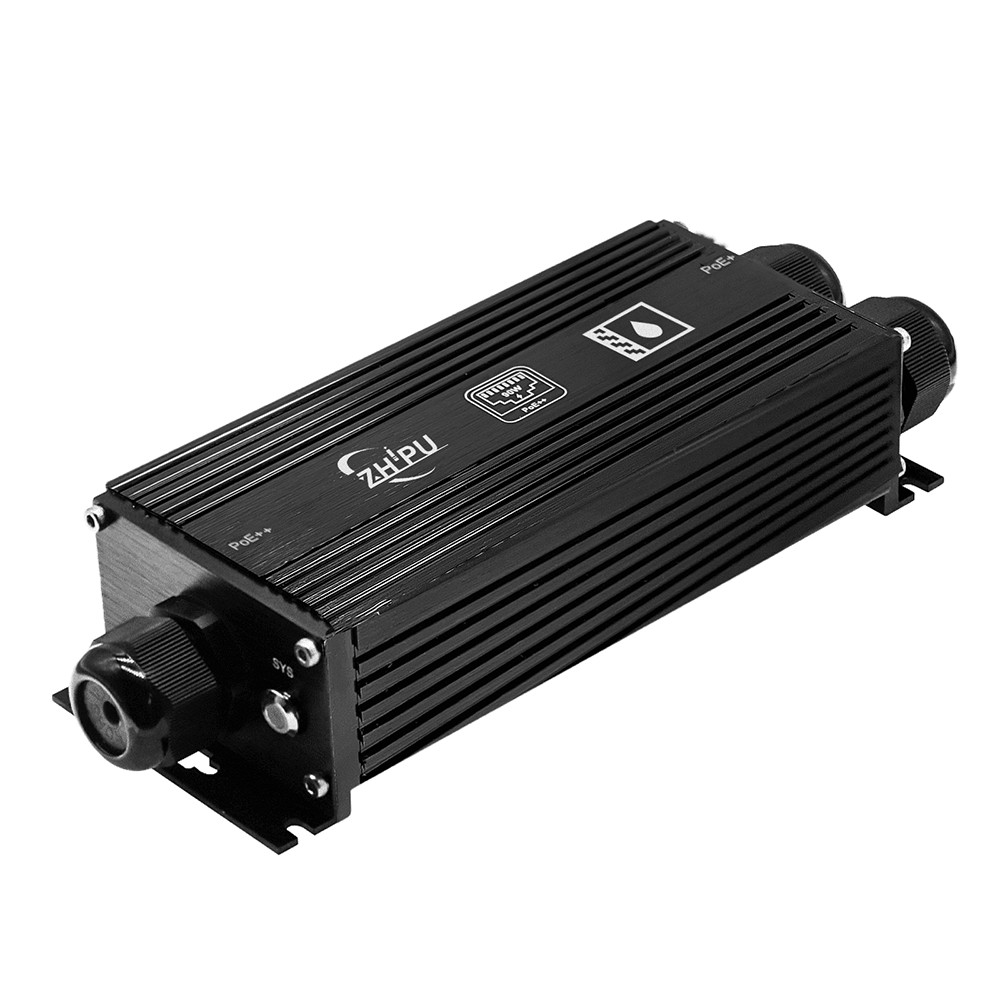

Waterproof Gigabit PoE Extender 90W IP67 IEEE802.3bt IN /1in & 2out Waterproof Gigabit PoE Extender E-lnk Industrial IP67-rated

LNK-WP-IPE102 is an industrial-gradeIP67-ratedGigabit Waterproof PoE Extender (1-in 2-out,90W) that utilizes Power over Ethernet technology. It extends1000MbpsEthernet signalsup to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of50-57Vto communication devices.

Industrial-Grade PoE Extension Solution

Featuring1-input to 2-output portconfiguration, This Waterproof PoE Extender enables reliable100-meternetwork extension while transmitting both data and PoE power without external cabling requirements.

Rugged Environmental Protection

Engineered for harsh conditions withIP67 waterproof ratingand-40°C to 80°Coperating range.

Application

• Outdoor Security Surveillance– Extends network connectivity to remote IP cameras and security devices in perimeter protection systems.
• Industrial Automation Networks– Provides extended PoE power and data transmission for sensors and controllers in manufacturing facilities.
• Intelligent Transportation Systems– Enables traffic monitoring device installation at extended distances from network infrastructure.
• Wireless Network Deployment– Powers and connects outdoor access points and wireless bridges in campus networks.
• Rail Transit Communications– Supports extended connectivity for passenger information systems and station security devices.
• Building Automation Systems– Extends network coverage for access control and environmental monitoring devices.
• Telecommunications Infrastructure– Provides extended connectivity for distributed antenna systems and network equipment.

Overview

The LNK-WP-IPE102 Series represents a breakthrough in industrial network extension technology, delivering robust Power over Ethernet capabilities in the most demanding environments. This industrial-grade IP67-rated Gigabit Waterproof PoE Extender features an advanced1-input, 2-outputconfiguration with90Whigh-power capacity, enabling reliable network expansion while maintaining both data integrity and power delivery across extended distances.

Engineered for superior performance, this industrial Waterproof PoE Extender utilizes cutting-edge Power over Ethernet technology to extend1000MbpsEthernet connectivityup to 100 meters, effectively doubling the standard network reach while providing stable50-57Vpower supply to connected communication devices. The rugged industrial Waterproof PoE Extender features completeIP67 protectionwith waterproof terminal design, ensuring uninterrupted operation in harsh conditions including extreme temperatures, moisture exposure, and dusty environments.

Operating flawlessly across an extensive temperature range from-40°C to 80°C, this hardened extender maintains reliable performance in challenging applications such asoutdoor security surveillance, industrial automation, and telecommunications infrastructure. The Waterproof PoE Extender supports multiple connected endpoints including IP cameras, wireless access points, and industrial sensors, making it an ideal solution for expanding network coverage in manufacturing facilities, transportation systems, and smart city deployments.

This versatile Waterproof PoE Extender provides network engineers with a comprehensive solution for extending both data and power connectivity in locations where conventional network infrastructure cannot reach. Its industrial-grade components and weather-resistant design ensure long-term reliability in outdoor installations, while theplug-and-playfunctionality enables quick deployment without requiring additional configuration or specialized technical expertise. The LNK-WP-IPE102 Series establishes itself as an essential component for modern industrial networks, bridging the gap between conventional Ethernet limitations and the growing demand for extended connectivity in challenging operational environments.

Why Choose Us

• Extended PoE Connectivity– Delivers full IEEE 802.3af/at/bt PoE power and data over 100-meter distances without signal degradation
• Certified Industrial Reliability– ISO9001 & FCC certified with 100% aging testing ensures 99.9% uptime in harsh environments
• Zero-Power Installation– No external power cables required with plug-and-play setup, reducing installation costs by 60%
• Advanced Network Capacity– 2K MAC address table and 10kB jumbo frame support enable seamless expansion of connected devices
• Extreme Environment Ready– IP67 waterproof rating with -40°C to 80°C operating range ensures reliability in outdoor applications

Technical Indexes

Ethernet Port

PoE Input Port

1x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Output Port

2x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

Cascade Connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-), 4/5 (+), 7/8 (-)

Input Voltage

IEEE802.3 bt 90W

PoE Output Power

Maximum 65W

Single Port PoE Output

Maximum 60W

Switch Property

Standards

IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet

Forwarding Modes

Store and Forward

Transmission Distance

Each extenderextends by 100m, max 3 grade Cascade, total 400m.

MAC Table

2K

Switching Capacity

6Gbps

Packet Forwarding Rate

4.46Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC

ESD Protection

6kV Contact Discharge; 8kV AirStandard: IEC 61000-4-2

Protection Level

IP 67

Explosion-Proof Rating

IK10

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

195 x 75 x 46mm

Weight

0.6 kg

Casing

Aluminum Case

Mounting Options

Wall-mount

Certifications

Certifications

CE, FCC, RoHS

Ordering Information

Model

Description

LNK-WP-IPE102

IP67 WaterproofIndustrial Gigabit PoE Extender1 x Input 2 x Output

Mounting Options

Wall Mount Bracket is usPaymentWe accept
