CAN FD Protocol Converter, CAN FD To RS232/RS485 offerirectional Data Communication, Supports 5 Data Conversion Modes And CAN 2.0A/2.0B Protocols, Rail-mount Support CAN FD Protocol Converter
CAN FD Protocol | 5 Data Conversion Modes | Industrial Performance
Features at a glance

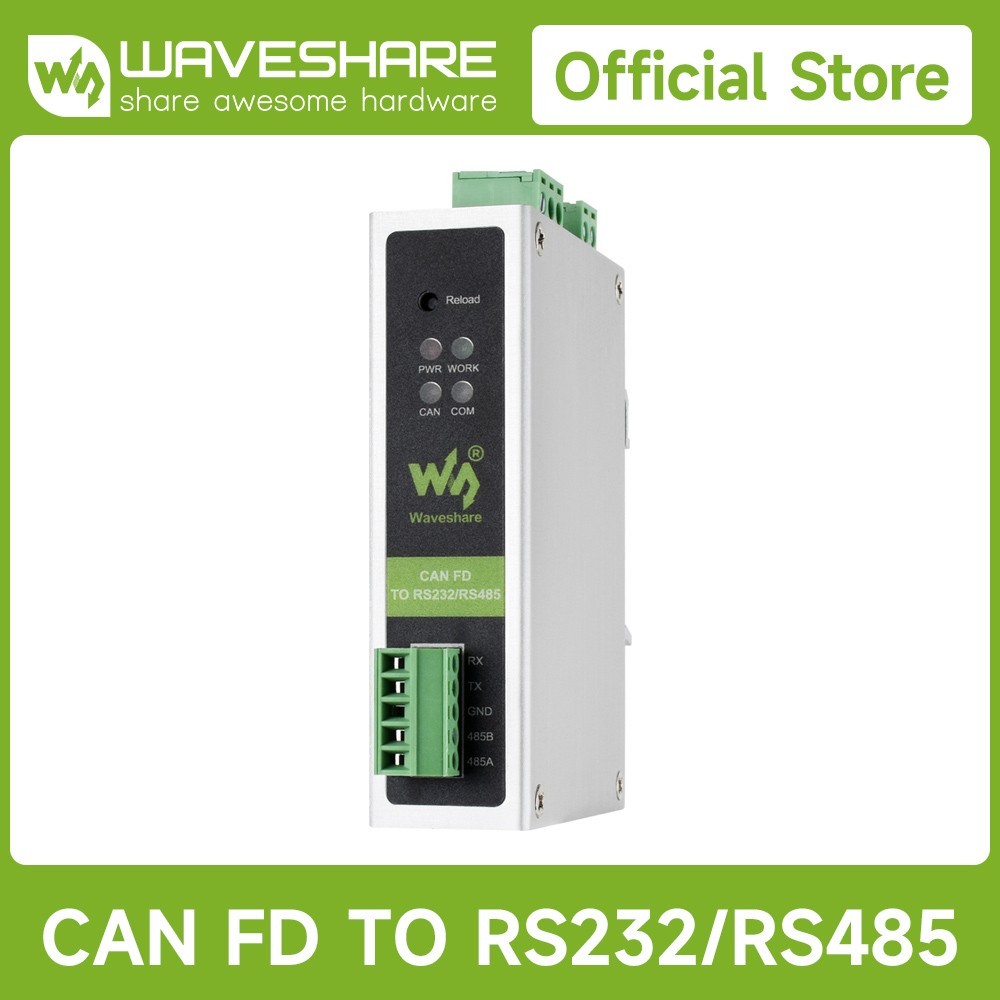

TheCAN FD TO RS232/RS485is a DIN-rail CAN FD to RS232/RS485 offerirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and serial devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.
Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.
Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.
Specifications Classify Parameter Describe Parameter Working voltage DC 9V ~ 36V, recommended use 12V 1A Size 110 × 27 × 85.6 (mm) Way to install DIN-rail installation Reload button Long press to restore factory settings Indicator light POWER, WORK, COM and CAN Interface Parameters CAN port specification 1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B CAN port baud rate Arbitration domain baud rate: 5Kbps ~ 1Mbps
Data domain baud rate: 100Kbps ~ 5Mbps Terminal resistor Built-in 2 × 120Ω terminal resistors,
Switching either DIP switch to ON connects one 120 Ω resistor in parallel.
Switching both to ON connects two 120Ω resistors in parallel Serial port specification Supports 1-ch RS485 or RS232 Work Environment Working temperature -40℃ ～ 85℃ Storage temperature -40℃ ～ 105℃ Working humidity 5% ～ 95% RH (no condensation) Storage humidity 5% ～ 95% RH (no condensation) Software Function Modbus gateway CAN FD to Modbus RTU (Master/Slave) Send the message Supports 64 transmission messages Receive messages Supports 64 receiving messages Protocol conversion Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion CAN ID Supports standard frame and extended frame Frame ID filtering Supports only standard frames, only remote frames, and custom input frame ID (up to 32 groups) Change direction Supports offerirectional conversion, only serial port to CAN, and only CAN to serial port; Firmware upgrade Supports the host computer for firmware upgrade Parameter configuration AT instruction and host computer software configuration Protection Parameters ESD Protection Air discharge: 8 KV, Contact discharge: 6 KV Eft/Burst Power circuit: 2KV; RS485/RS232 circuit: 1KV; CAN circuit: 1KV Surge Immunity Test Power circuit: 1KV differential mode, 2KV common mode;
CAN circuit: 2KV common mode
Basic Function
supports CAN FD To RS232/RS485 offerirectional Data Communication
arbitration domain baud rate
CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps
data domain baud rate
CAN FD data domain baud rate：100Kbps ~ 5Mbps
Industrial-grade design Supports multiple conversion modes
Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion
Transparent conversion
Achieve original conversion between CAN FD frames and serial frames
Transparent Conversion with ID
Transfer the ID information in serial frames to CAN FD frames
Standard Conversion
Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format
Modbus Protocol Conversion
Realize Modbus data transmission over CAN bus through packet segmentation and reassembly
Custom protocol conversion
Users can customize frame headers and trailers to enable offerirectional data conversion
3 Frame Filtering Methods, 32 Sets of Configurable Filters
Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference
Configuration parameters via host computer
Application Scenarios
BMS Battery Monitoring
Industrial Automation
EV Charging
Traffic Monitoring
Interface introduction
Outline dimensions Resources & Services
Package Content
Weight:0.134 kg
- CAN FD TO RS232/RS485 x1
- Power plug adapter x1
- Screwdriver x1
1 2 3
