DESCRIPTION

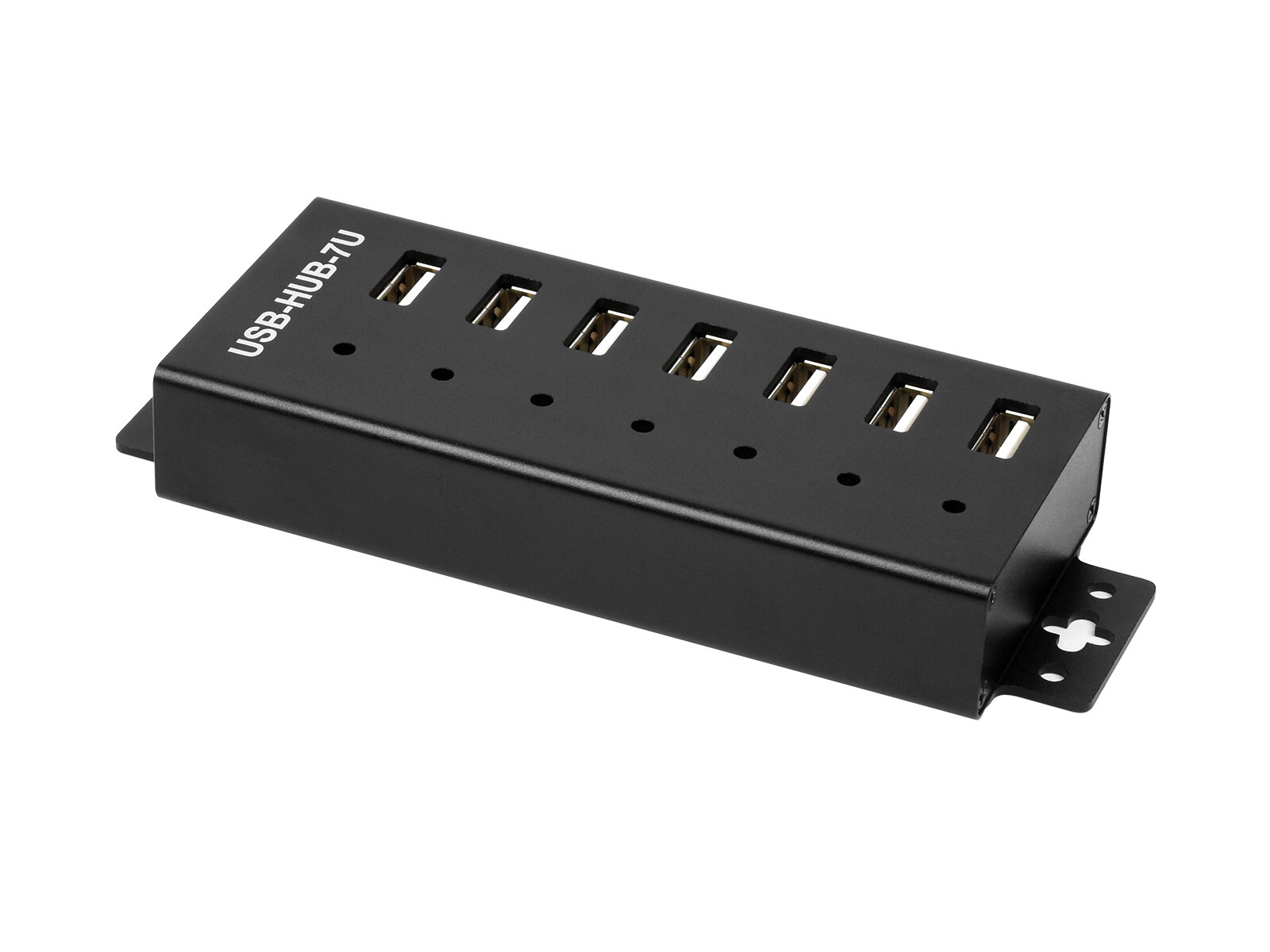

Industrial Grade USB HUB, Extending 7x USB 2.0 PortsIndustrial 7U USB HUB

Industrial-Grade Materials, Stable And Reliable Performance,
Rugged & Durable, With A Variety Of Protective Functions
Suitable For Industrial/Office With Higher Level Device Requirements

Features At A Glance

• 7x extended USB ports, compatible with USB 2.0 / 1.1
• Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 7x concurrent USB connections
• ESD protection for each USB port, preventing electric surge damage and data loss
• Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
• Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
• LED indicators for monitoring operating statuses of power supply and USB ports
• Industrial grade metal case, rugged & durable, with mounting holes for easy installation

SpecificationsUSB PORTUSB 2.0BAUD RATETheoretically up to 480MbpsUSB HUB INPUToperating voltage:5V
connector:USB-BUSB OUTPUToperating voltage:5V@Imax:1.2A①
connector:USB-AEXTERNAL POWERpower supply voltage:DC 5V②
connector:DC jackOPERATING ENVIRONMENT-40℃ ~ 85℃OS SUPPORTMac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP① up to 1.2A Max output current for each USB ports, when there's enough power input
② comes with 5V 4A power supply, for higher USB loads, it is recommended to replace a power supply with higher power
7x Extended USB Ports
Allows Concurrent Use Of Multiple Devices

Extended 7x USB2.0 Ports For Raspberry Pi Or PC At The Same Time
Avoid Repeated Unplugging, More Convenient To Use

Industrial Grade USB HUB Chip

MTT Technology, 7x Concurrent USB Connections, More Stable And Smooth

Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

Multiple OS Support, Plug & PlayApplication Environments

Suitable For Industrial/Office Environments With Higher Level Device Requirements

7x USB
Industrial chip, allows 7x USB connections, stable & smooth

Small and compact, easy to install
Flexible installation, USB port extension for sorts of devices

Reserved screw holes
Easy to mount, industrial metal case, rugged & durable

Detachable bracket
Suitable for industrial applications in different scenarios

Common Device SupportInterface IntroductionOutline Dimensions
PACKAGE CONTENT

Weight:0.343 kg

1. USB-HUB-7U x1
2. USB cable ~1.2m x1
3. OPTIONS5V 4A power adapter x1

123
