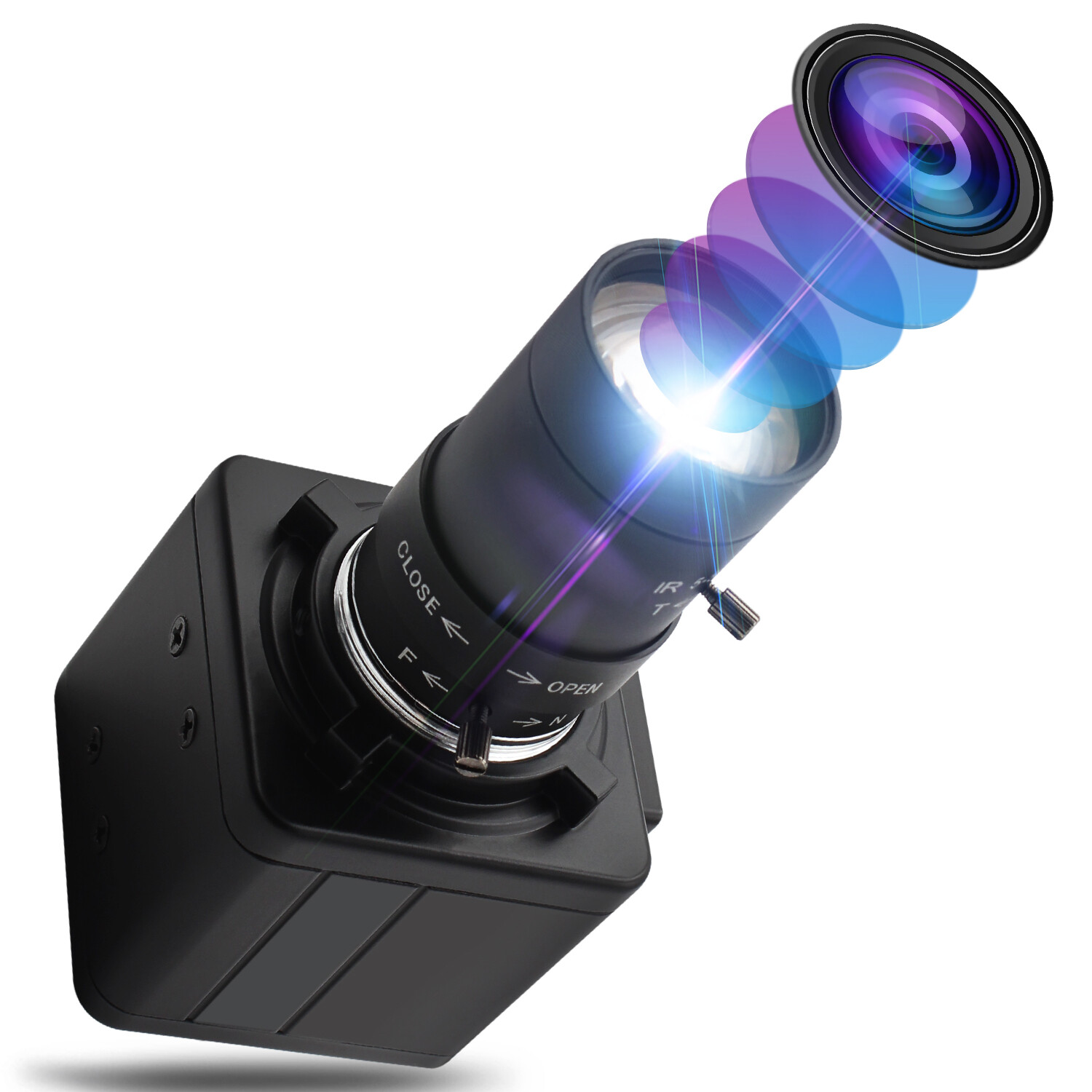

8MP USB Camera SONY (1/3.2'' ) IMX179 CMOS Sensor Webcam USB with 2.8-12mm Varifocal lensFeatures:
1) 8MP 3264X2448 4K high resolution , suitable for document capture
2) With Advanced Sony (1/3.2'' ) IMX179 sensor for sharp image
3) High quality 5-50mm varifocal lens, support zoom 10x , help get clear image from far distance .
4) Support OS: Win XP\Win7\Win8\Android\Linux , support raspberry pi
Specification: Model ELP-USB8MP02G-MFV(2.8-12mm varifocal Lens)SensorWith 1/3.2 inches Sony IMX179 Color SensorLens 2.8-12mm Varifocal LensPixel Size1.4μmimage area 6.18X5.85 mmMax. Resolution 3264(H) X 2448(V) 8.0MegapixelCompression format MJPEG / YUV2（YUYV）Resolution & frame 3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 20fps YUY2 3fps2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps640X480 MJPEG 30fps YUY2 30fp S/N Ratio34dBDynamic Range75.5 dBSensitivity0.65 V/lux-sec@550nmMini illumination0. 5luxShutter TypeElectronic rolling shutter / Frame exposureConnecting Port typeUSB2.0 High SpeedFree Drive ProtocolUSB Video Class（UVC）Support OTG ProtocolUSB2.0 parametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, ExposureLens Parameter
5-50 MM Varifocal lens,
optional 2.8-12mm varifocal lens/ 75degree no distortion lens,4/5/8mm manual focus lensOTG Protocal Support OTG Function ,can connect your mobile via OTG CableLED board power connectorSupport 2P-2.0mm socketPower supplyUSB BUS POWER 4P-2.0mm socketPower supplyDC5VOperating Voltage140mA~190mAWorking current -10～70℃Working temperature -20～85℃Board size /Weight 41*41mm, 0.4kgCableStandard 3M / 1m,2M,3M,5M optional Operating system requestWin7 Win8 Win10 Win11
Linux 2.6 or above
Android 4.0 or aboveApplication:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
