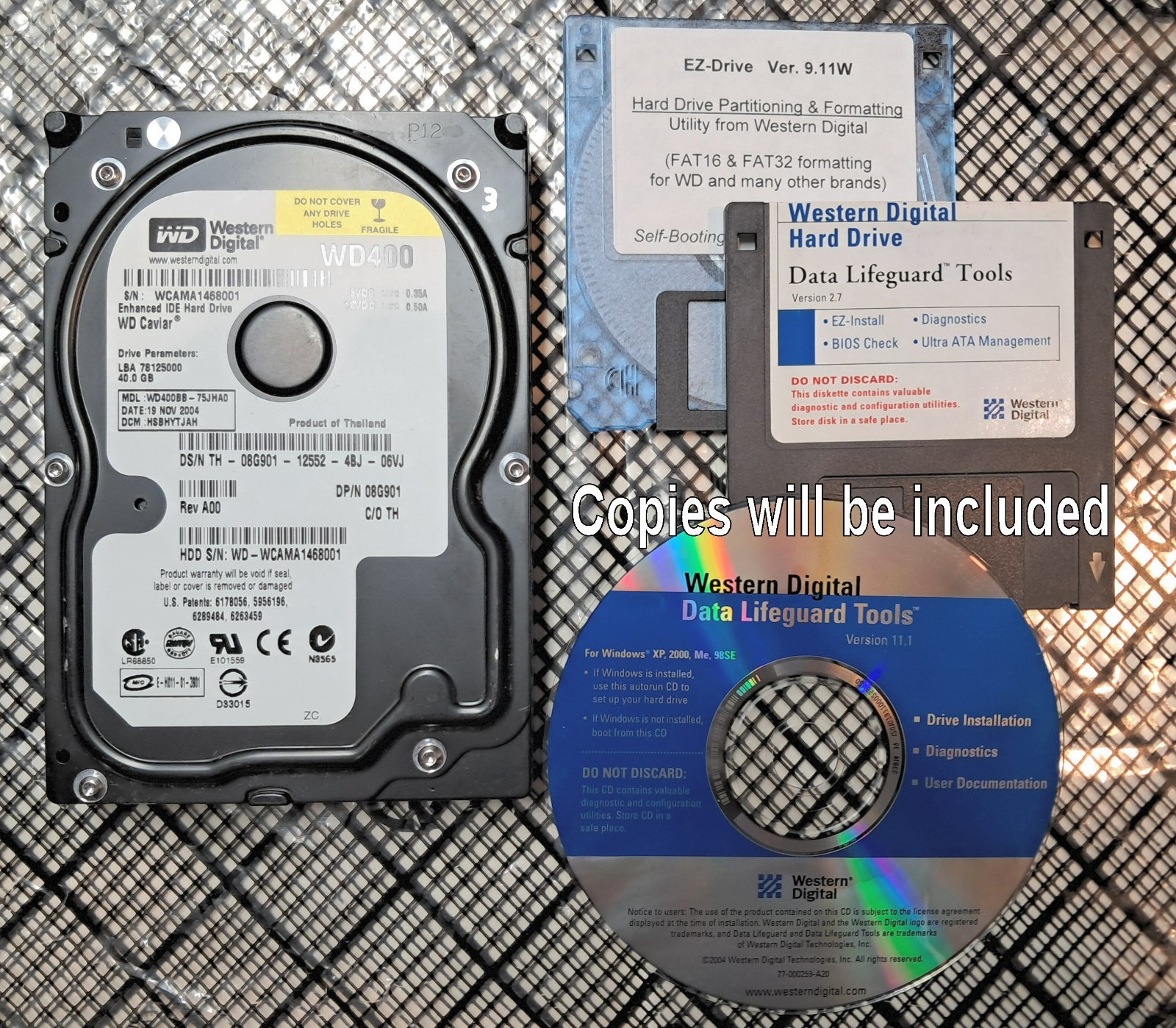

Recently removed from office PCs, these 7,200RPM drives were thoroughly tested & verified using Western Digital’sown Enhanced disk fitness test (see photo).
Then, they were Partitionedas asingle 40Gb drive, and Formatted to FAT32 (Windows 98se) to eliminate anydata or malware that might have been present.
But if you want to use the drive in a differentWindows format, copies ofWD’s self-booting utilities are included:
They are perfect for Vintage / Retro systems that don't need, or can't handle, larger, more expensive drives.
Note- WD’s Fluid Dynamic Bearings in the motor make them quieter than competing drives.
Ofcourse, today’s huge, expensive hard drives have superior performance, but intheir day these were Highly Regarded drives. Storage Review said this about them:
“The[WD Caviar] 40 BB’s WinMark scores shatter previous records…they stand in aclass of their own.”
“Infact, the WD’s Business score brings it within two percent of the currentleader, Quantum’s SCSI Atlas 40k II.Many manufacturers (Quantum included) believer the WB99 continues topaint the most reliable picture when it comes to workstation disk performance”
“Packingjust two platters, the WD400BB is indeed a quiet and cool design.”
(More specs are pasted below)
·For systems using the ATA / PATA EIDE/ IDE Interface (NOT SATA);
·3.5” width Form Factor (the one typical of internal drives in Desktopsystems, NOT the 2.5” Laptop format)
Please review my responseand buy with confidence. Feel free to contact meif you have any questions. Also-if you have a different price in mind compared to what I am asking, justmake an offer. I won’t be offended.
General Information
Category
Hard drives
Description
WD Caviar WD400BB - Hard drive - 40 GB - internal - 3.5" - ATA-100 - 7200 rpm - buffer: 2 MB
Manufacturer
Western Digital
UNSPSC
43201803
Main Specifications
Dimensions & Weight / Depth
14.7 cm
Dimensions & Weight / Height
2.6 cm
Dimensions & Weight / Weight
0.6 kg
Dimensions & Weight / Width
10.2 cm
Hard Drive / Capacity
40 GB
Hard Drive / Form Factor
3.5" x 1/3H
Hard Drive / Hard Drive Type
Internal hard drive
Hard Drive / Interface
ATA-100
Hard Drive / Interface
ATA-100
Header / Brand
WD
Packaged Quantity
1
Humidity Range Operating
5 - 85%
Max Altitude Operating
3 km
Max Operating Temperature
55 °C
Min Operating Temperature
5 °C
Shock Tolerance
65 g @ 2ms half-sine pulse (operating) / 350 g @ 2ms half-sine pulse (non-operating)
Vibration Tolerance
0.25 g @ 5-500 Hz (operating) / 4 g @ 20-500 Hz (non-operating)
Expansion & Connectivity
Compatible Bay
3.5" x 1/3H
Interfaces
1 x ATA-100 - 40 pin IDC
General
Buffer Size
2 MB
Capacity
40 GB
Depth
14.7 cm
Device Type
Hard drive - internal
Features
Fluid Dynamic Bearing (FDB) motor, Data Lifeguard, Shock Guard
Form Factor
3.5" x 1/3H
Height
2.6 cm
Interface
ATA-100
Weight
0.6 kg
Width
10.2 cm
Manufacturer Warranty
Performance
Average Latency
4.2 ms
Drive Transfer Rate
100 MBps (external)
Seek Time
8.9 ms (average) / 21 ms (max)
Spindle Speed
7200 rpm
Track-to-Track Seek Time
2 ms
Reliability
MTBF
500,000 hours
Non-Recoverable Errors
1 per 10^14
Start / Stop Cycles
40,000
