Wavlink Upgraded Wi-Fi 6E AX5400 Tri-band Wi-Fi Module with Bluetooth 5.3--Ascending to Greater Heights!

Product Overview

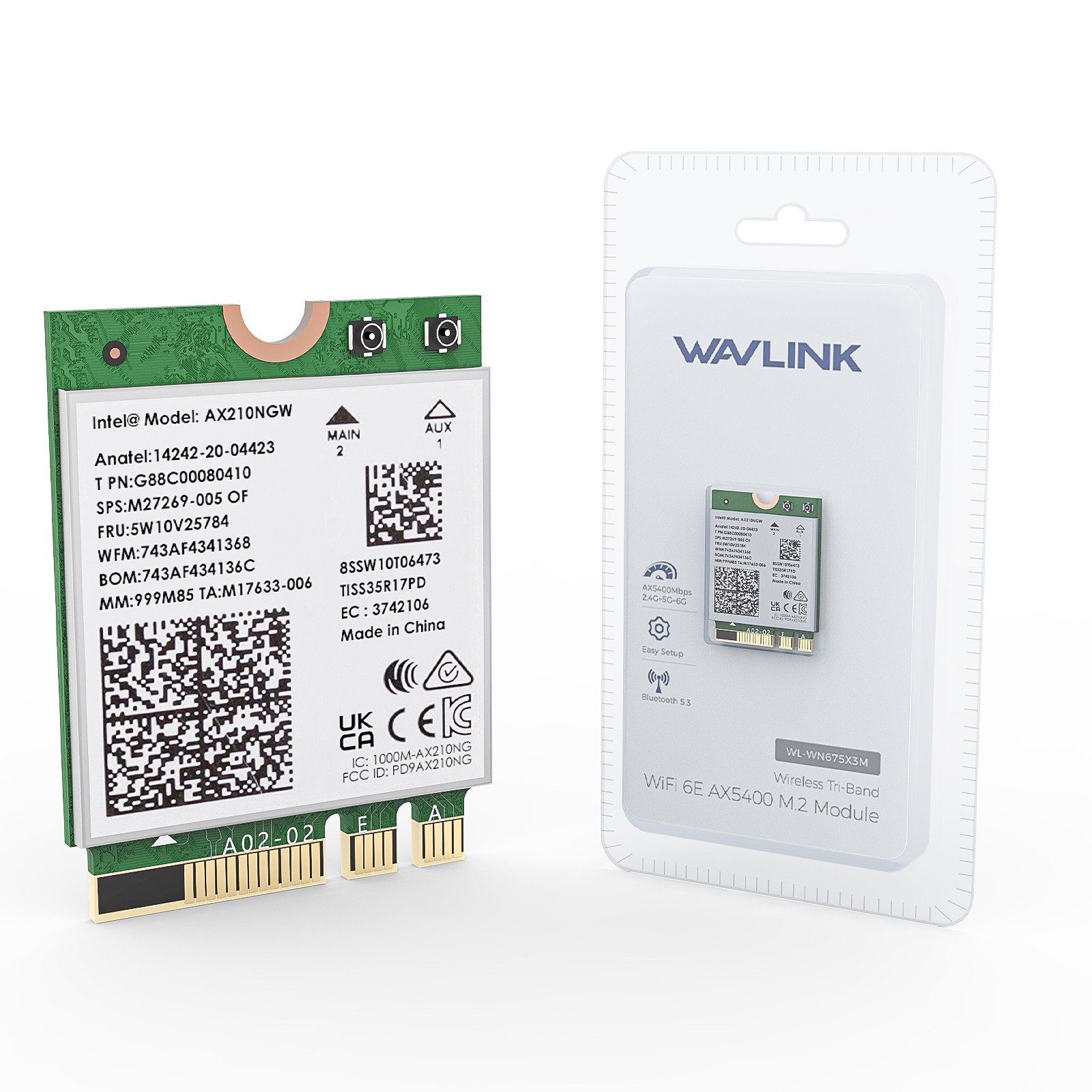

Wavlink Wi-Fi 6E Tri-band M.2 module(WL-WN675X3M) is an AX5400 wireless adapter for
laptops that has the NGFF/M.2 connector. The wireless adapter supports MU-MIMO, 1024-QAM,
OFDMA, helps you to get a stable and high-speed wireless signal by cooperating with a wifi6/wifi 6e router.
Compliant with 802.11 ax specification, the module supports 2.4GHz, 5GHz and 6GHz bands. In addition,
combined with WPA3 security and Bluetooth 5.3, the Wi-Fi 6E network card equips your PC with all the latest,
future-proof technology.

Compatible OS
Support Windows 10/11 64-bit, Linux 5.10+
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

MU-MIMO Supported
MU-MIMO technology effectively improves signal gain when multiple users are sending
and receiving at the same time and then minimized lag for your PC.

WPA3 Security
With the introduction of WPA3, cyber security is boosted with new capabilities.
Ensuring that your home network is fortified with superior level of Model: WN675X3M
Chipset: Intel AX210NGW
Transmission Rate: 2.4GHz: 574Mbps 5GHz: 2400Mbps 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Bus Interface: M.2/NGFF Key-A or Key-E
Package Size: 22mm x 30mm (0.9in x 1.2in )
Support System: Win 11/10 (64 bit), Linux 5.10+
Bluetooth Version: Bluetooth 5.3
Wireless Security: WPA/ WPA2/ WPA3, WPA-PSK/ WPA2-PSK Encryption

Package Contents:
-1x WiFi 6E AX5400 M.2 Module
-1x Screwdriver+Screw
-1x User Manual

Knowing the following will give you a better product experience:
1. This laptop wifi card is available for laptops with an M.2 slot (key A or E).
2. Download the driver from the Intel/WAVLINK website.(It is recommended to download
the driver first and then install the network card.)
3. Requires a WiFi 6E router and the PC must be on Windows 11 version to enable the 6GHz band.
4. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance.
5. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to
receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
6. It has nothing to do with the quality of this adapter when you can't get the maximum speed.
The network environment, router, barriers, laptop and PC 's internal memory…
he interference of many factors may affect the speed.

Intel AX210 WiFi 6E AX5400 PCIe Card with Magnetized Base

Wavlink Wi-Fi 6E AX5400 PCIe Tri-band WiFi Adapter with Magnetic Antenna Base--Soaring to New Height!

Product Overview
Wavlink Tri-Band PCI-E is an AX5400 wireless adapter for desktops that supports the latest Bluetooth 5.3.
The wireless adapter features stable signal, high speed rate and superior performance.
Compliant with 802.11 ax specification,the wireless adapter supports 2.4G, 5G and 6G bands.
With 1024-QAM and MU-MIMO technology, WL-WN675X3 delivers wireless signal faster
and more effectively by cooperating with an MU-MIMO compatible router.

Latest Bluetooth 5.3
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage
than BT4.2. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Compatible OS
Support Windows 10/11 64-bit, Linux
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security.
More secure encryption in WiFi password safety and enhanced protection against brute-force
attacks combine to safeguard your home network.

Robust Connection with Dual High-Gain Antennas
Two 5dBi high-performance antennas with a magnetized base extend your existing WiFi reception
capabilities by allowing you to stream throughout your home. Place the antenna base anywhere
on your desktop to find the optimal location for signal reception.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped.
Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN675X3(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA/ WPA2/ WPA3, WPA-PSK/ WPA2-PSK Encryption

Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna
-1x Low Profile Bracket
-2x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the
motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and
better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer
to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed.
The network environment, router, barriers, laptop and PC 's internal memory…
the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

Intel AX210 WiFi 6E AX5400 PCIe Card

WAVLINK Wi-Fi 6E AX5400 PCIe Tri-band WiFi Adapter--Soaring to New Height!
The WAVLINK Tri-Band PCI-E card is an AX5400 wireless adapter designed for desktops,
offering the latest Bluetooth 5.3 support. This wireless adapter provides a stable signal,
high-speed rates, and superior performance for your desktop system. It complies with the 802.11ax
specification, allowing it to support the 2.4GHz, 5GHz, and 6GHz bands. Equipped with 1024-QAM
and MU-MIMO technology, the WN675X3-C delivers wireless signals faster and more effectively
when used in conjunction with an MU-MIMO compatible router. Experience enhanced connectivity
and optimized wireless performance with this advanced wireless adapter.

Latest Bluetooth 5.3
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than
BT4.2. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Compatible OS
Support Windows 10/11 64-bit, Linux
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security.
More secure encryption in WiFi password safety and enhanced protection against brute-force
attacks combine to safeguard your home network.

Robust Connection with Dual High-Gain Antennas
Two 5dBi high-performance antennas extend your existing WiFi reception capabilities
by allowing you to stream throughout your home.

Advanced Heat Sink for Better Stability
The networking card is equipped with an advanced heat sink that effectively dissipates
the heat generated by the adapter. This feature not only enhances performance and stability
but also contributes to extending the lifespan of the adapter.

Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped.
Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN675X3-C(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA2/WPA3, WPA2-PSK encryption

Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard
9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and
better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer
to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed.
The network environment, router, barriers, laptop and PC 's internal memory…
the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
