TESTED & PRINTING OK

PARALLEL + SERIAL PORTS

EXCLUDING CABLES, MANUALS, LABELS, CD'S

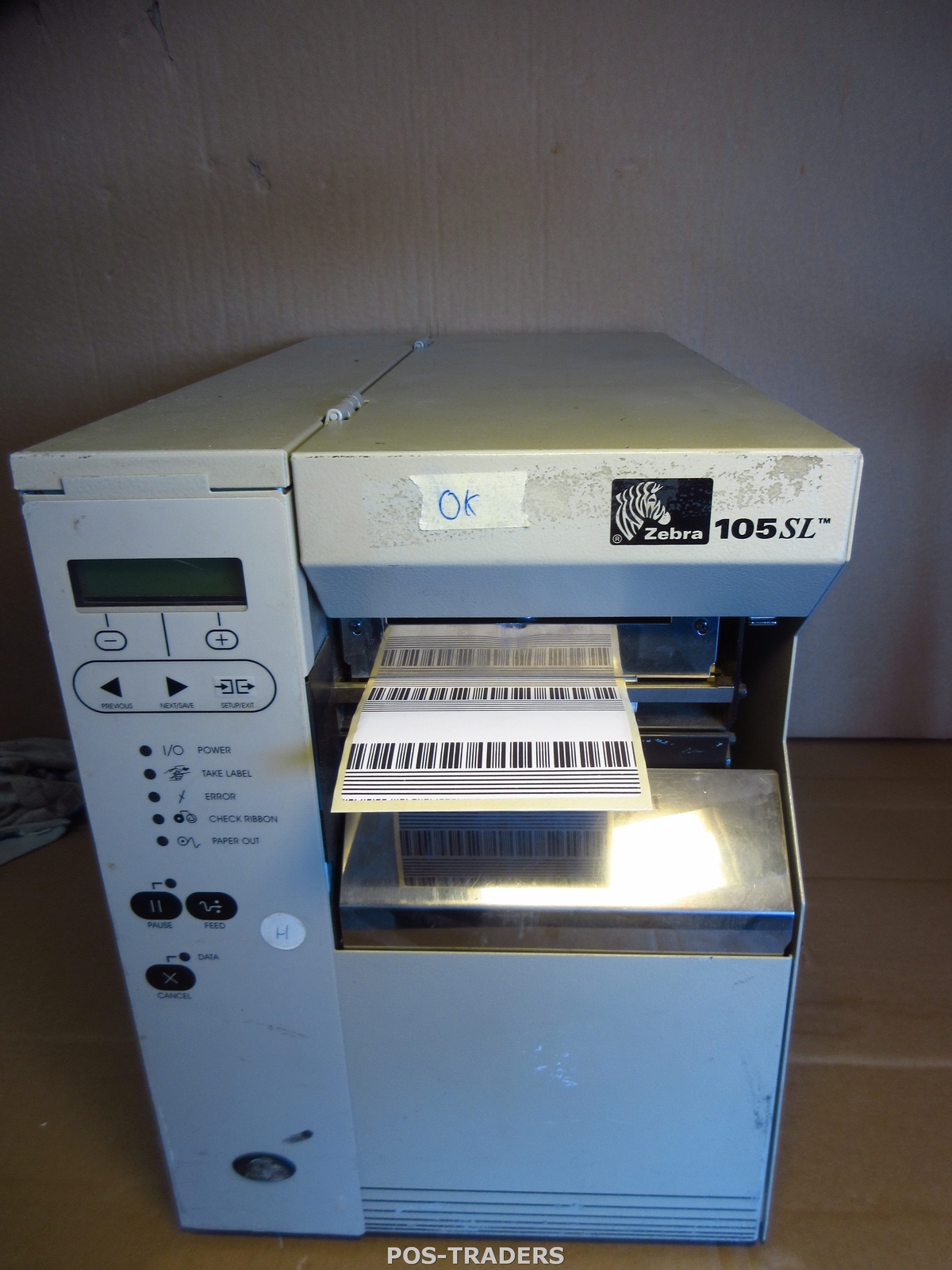

See photos for actual item!

Price is for 1 item.

Media Characteristics

Maximum label and liner width:

4.5" (114 mm) - tear & cutter, 4.25" (108mm) - peel & rewind, ,

Minimum label and liner width:

1.0" (25.4mm)

Maximum label and liner length:

39" (991mm)

Maximum roll diameter:

8" (203 mm)

Core diameter:

3" (76 mm)

Media thickness:

0.0023" (.058 mm) to 0.010" (0.25 mm)

Media types:

black mark, continuous, die-cut, fanfold, notched, perforated, tag stock

Operating Characteristics

Operating temperature TT:

40° F (5° C) to 104° F (40° C)

Operating temperature DT:

32° F (0° C) to 104° F (40° C)

Storage temperatures:

-40° F (-40° C) to 140° F (60° C)

Operating humidity:

20-85% non-condensing R.H.

Storage humidity:

5-85% non-condensing R.H.

Physical Characteristics

Width:

10.9" (278 mm)

Height:

13.3" (338 mm)

Depth:

18.7" (475 mm)

Weight:

32.4 lbs (15 kg)

Print speed:

203 dpi, 10" (254 mm)/sec

Media sensors:

Reflective, Transmissive

Printer Specifications

Resolution:

203 dpi (8 dots/mm)

Memory:

16 MB DRAM, 8 MB Flash, 64 MB Factory-Installed On-Board Optional Flash (optiona

Print width:

4.09" (104 mm)

Print length:

Length with 203 dpi 157" (3,988 mm)

Print speed:

203 dpi, 10" (254 mm)/sec

Media sensors:

Reflective, Transmissive

Ribbon Characteristics

Outside diameter:

3.2" (81.3 mm)

Standard length:

1476' (450 m) or 984' (300 m)

Ratio:

3:1 media roll to ribbon ratio

Ribbon width:

2" (51 mm) to 4.33" (110 mm)

ID Core:

1.0" (25.4 mm)

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
