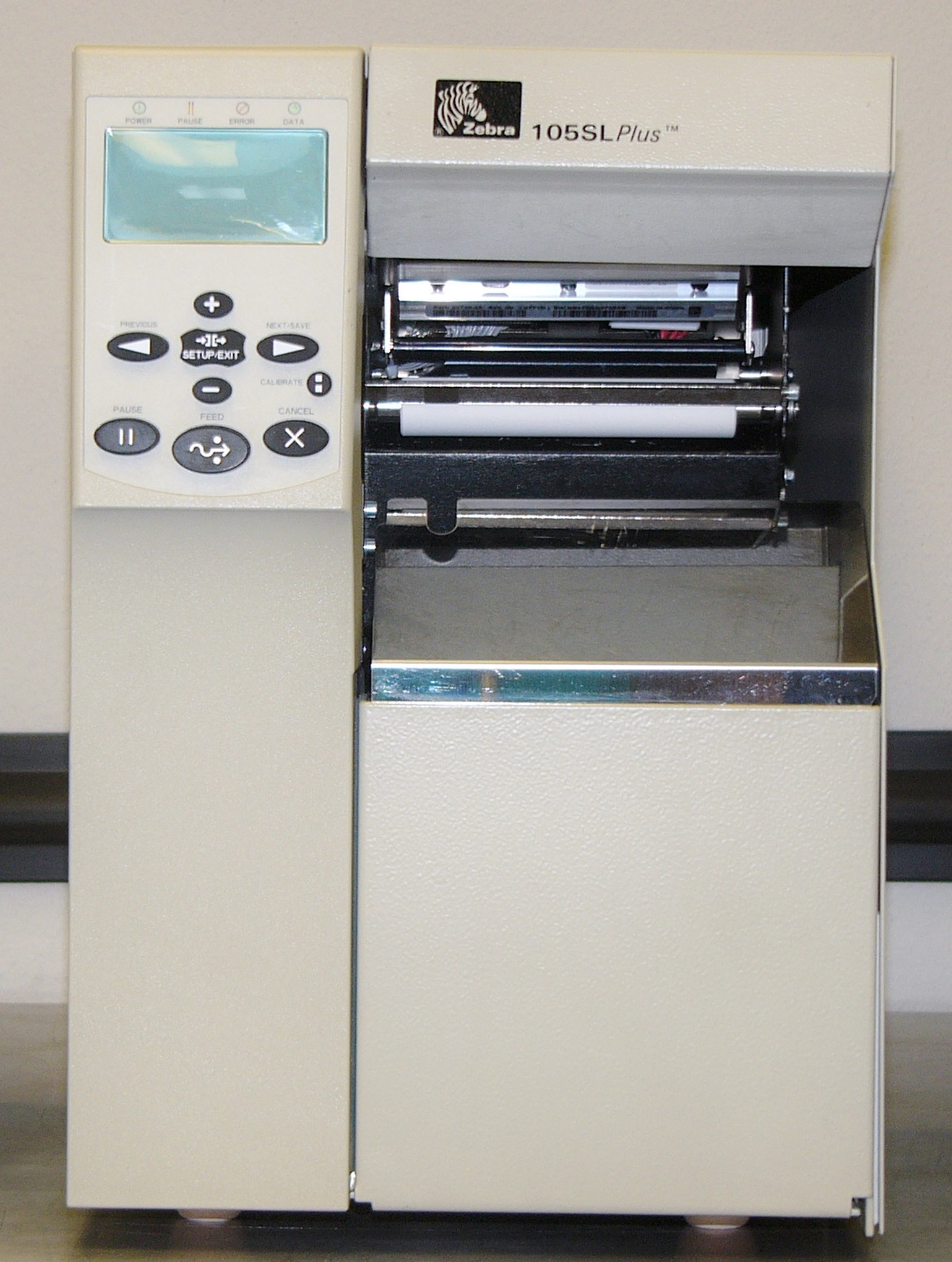

Zebra 105SLplus Thermal Printer In manufacturing and warehousing environments, things can get pretty busy, and equipment needs to be sturdy and reliable.

• Printers are no exception ? and that?s why the 105SLPlus printer from Zebra is built to slot straight in to these tough working conditions.It has a durable all-metal construction, and a robust print mechanism that?s designed to cope with demanding tasks.

• The 105SLPlus printer is fast, it?s economical, and it makes the most of Zebra?s highly regarded electronics platform to offer increase speed for high-volume applications.

• Its multilingual LCD user interface makes it easy to learn how to use, and the simple ribbon-loading mechanism makes it easy to maintain, too. And that?s not all. With a broad range of connectivity options, the 105SLPlus printer is easily integrated into just about any existing infrastructure.

• The 105SLPlus printer from Zebra: economical, dependable and high-performance printing for your business.

Zebra 105SLplus 203 dpi Specifications:

Printing Specifications

• 203 dpi resolution (8 dots/mm)

• Dot size (W x L):

• 0.0049 in. x 0.0049 in. (0.125mmx0.125mm)

• First dot location measured from inside media edge:

• 0.14 in. +-0.05 in. (3.5mm +-1.25mm)

• Maximum print width: 4.09 in. (104mm)

• Maximum non-continuous media print length (with 16 MB memory):
  39 in. (991mm)

• Maximum continuous media print length (with 16 MB memory):
  150 in. (3810mm)

• Media registration tolerance: *

• Vertical:

+- 0.030 in. (+- 0.75mm)
at print speeds at or below 4 ips on non-continuous media

+- 0.060 in. (+- 1.5mm)
at print speeds higher than 4 ips

• Horizontal:

+- 0.060 in. (+- 1.5mm)

• Programmable print speeds
  (inches per second):
  2.4, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,13, 14

• Bar code modulus "X" dimension:

• Picket fence (non-rotated) orientation: 4.9 mil to 49 mil

• Ladder (rotated) orientation:
  4.9 mil to 49 mil

General Specifications

• Power consumption:

• Idle = 20 W

• Printing = 121 W (printing pause test label at lowest speed)

• Standby = 25 W

• Height: 15.5 in. (393.7mm)

• Width: 10.31 in. (261.9mm)

• Depth: 20.38 in. (517.5mm)

• Weight: 50 lbs. (22.7 kg)
