reDIP CIA MOS 8520 Modern FPGA Replacement for Amiga Computers and 1581 FD
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

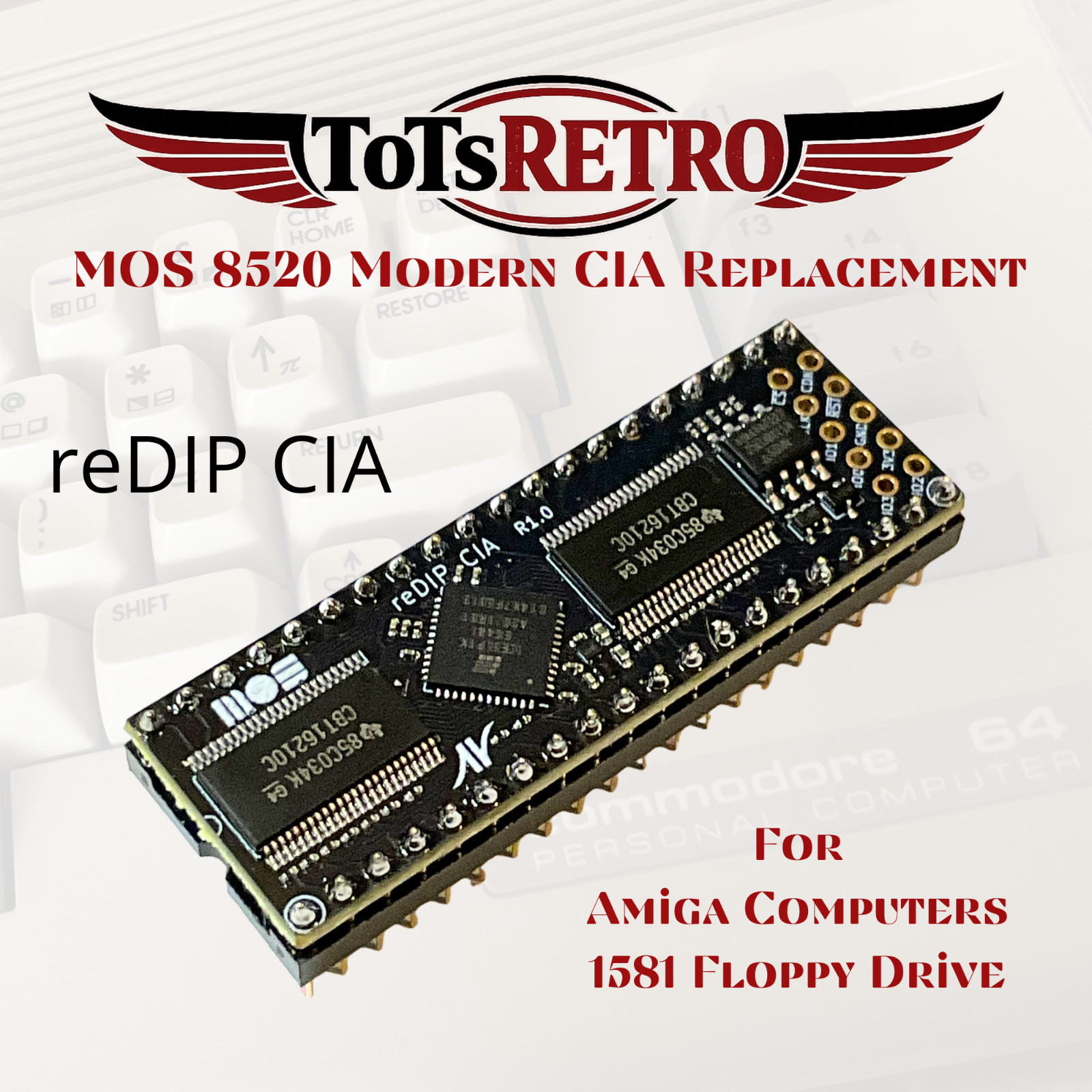

reDIP CIA MOS 8520 Modern FPGA Replacement for Amiga Computers and 1581 FD
Price: US $45.99


reDIP CIA MOS 8520 Modern FPGA CIA Replacement Chips


Available Now at : ToTsRETRO

reDIP CIA MOS 8520 Modern FPGA CIA Replacement Chips

For Amiga 500, 600, 1000, 1200, 2000, 3000, 4000, CDTV Computers and Commodore 1581 Floppy Disk Drive

Available Now at : ToTs RETRO

reDIP CIA MOS 8520 has been tested with a Amiga 500, Commodore 1581 Floppy Drive, BackBit Chip Tester Pro, Amiga Test Kit, VATest Program and has scored a perfect 100% passing mark.

The reDIP CIA is an open source FPGA board created by: Dag Lem, a prominent coder in the Retro Commodore Community who's work is also featured in VICE 64 emulator. This chip combines the following in a DIP-40 Package.

  • Lattice iCE5LP1K-FPGA
  • 1 Mbit FLASH
  • 5v tolerant I/O
  • Low Power Consumption

The reDIP CIA Provides an Open Source hardware platform for MOS 8520 CIA Replacements.

  • The board is fully pin compatible with the venerable MOS 8520
  • Cycle Accurate emulation of the MOS 8520 has been implemented with very accurate TOD
  • Gateware implementation made possible by Frank "androSID" Wolf and Dieter "ttlworks" Müller

The repository for this open source project can be found on Github product has been made available under:

CERN Open Hardware Licence Version 2
Copyright (C) 2025 - 2026 Dag Lem

Any Questions Please Do Not Hesitate to ask.
