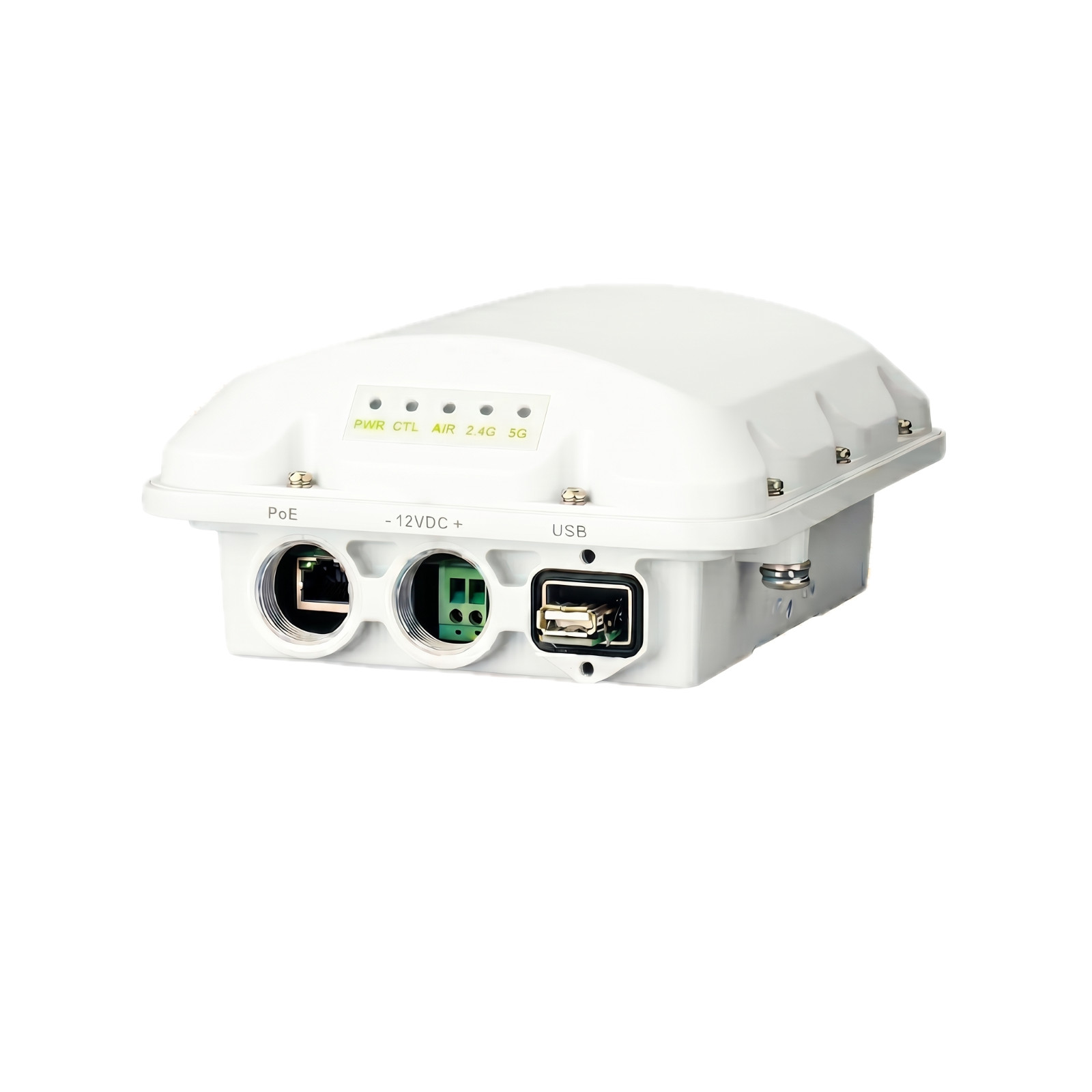

RUCKUS T350 Outdoor Access Point Datasheet

The RUCKUS T350 Series is an entry-level, high-efficiency Wi-Fi 6 (802.11ax) outdoor access point designed for high-density environments like smart cities, stadiums, public plazas, and universities.

Key Features & Proprietary Technologies

• BeamFlex+ Adaptive Antennas: RUCKUS's patented technology that dynamically alters antenna patterns in real-time (up to 64 patterns per band). This maximizes signal quality, extends coverage, and automatically mitigates RF interference.

• ChannelFly Predictive Throughput: Uses machine learning to continuously scan the environment and automatically switch the AP to the least congested Wi-Fi channel to preserve high throughput.

• SmartMesh™ Wireless Backhaul: Minimizes expensive cabling runs by allowing the APs to dynamically form self-healing, self-organizing mesh networks over the air.

• IoT Onboard: Includes integrated Bluetooth Low Energy (BLE) and Zigbee radios (available on specific sub-models like the T350d), eliminating the need for separate external IoT gateways.

Technical SpecificationsCategorySpecification DetailsWi-Fi StandardIEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)Concurrent StreamsDual-band concurrentPeak PHY Data RateCombined up to 1.774 Gbps (574 Mbps @ 2.4GHz + 1200 Mbps @ 5GHz)Client CapacityUp to 512 concurrent clients per Access PointSSIDs SupportedUp to 31 SSIDs per APPhysical Interfaces

1 x 1 GbE RJ-45 Ethernet port (PoE In)

1 x USB 2.0 Type-A port (on T350d/se models)

Power OptionsPoE Input (802.3af/at Class 4)Security SupportWPA3 (Personal & Enterprise), WPA2, OWE, Dynamic PSKPhysical & Environmental Durability

• Weatherproofing: IP67-rated dust and water resistance, fully sealed to survive harsh outdoor environments.

• Operating Temperature:

  • T350c: $-20^\circ\text{C}$ to $65^\circ\text{C}$ ($-4^\circ\text{F}$ to $149^\circ\text{F}$)

  • T350d / T350se: $-40^\circ\text{C}$ to $65^\circ\text{C}$ ($-40^\circ\text{F}$ to style="line-height: 1.15 !important; margin-top: 0px !important;">

    Wind Survivability: Up to $266\text{ km/h}$ ($165\text{ mph}$).

  • Form Factor: Ultra-lightweight and low-profile design (Base model weighs roughly $1.01\text{ kg} / 2.23\text{ lbs}$).

  Management Flexibilities

  The T350 series can be centrally deployed and managed using any architectural preference:

  • RUCKUS SmartZone (Physical or virtual controller appliances)

  • RUCKUS Cloud™ (Cloud-managed architecture)

  • RUCKUS Unleashed™ (Controller-less / Master-AP setup for smaller deployments)

  Series Variant Differences

  Depending on your installation site layout, the T350 comes in three models:

  1. T350c: Internal omnidirectional antennas, designed for basic outdoor setups.

  2. T350d: Internal omnidirectional antennas, adds USB, DC power terminal, and extended $-40^\circ\text{C}$ temperature capabilities.

  3. T350se: Internal $120^\circ$ sectorized antenna + External N-type antenna connectors for highly tailored directional coverage.
