VGA to RJ45 Extenders
DESCRIPTION
Extend your VGA signal up to 100ft away by using this pair of VGA Extender Adapters and one CAT5e/CAT6 cable (cable not included).
This VGA extension solution provides many benefits to the user. This solution is a cheaper alternative to purchasing a longer VGA cable or a more sophisticated VGA extender. Another great benefit this provides is the ease at which the CAT5e/6 cable can be run through walls. VGA cables have bulky connectors which make them difficult to run through walls or conduits. Also, if you are one of many people that has existing CAT5e/6 cables already in their wall, then this solution is definitely for you

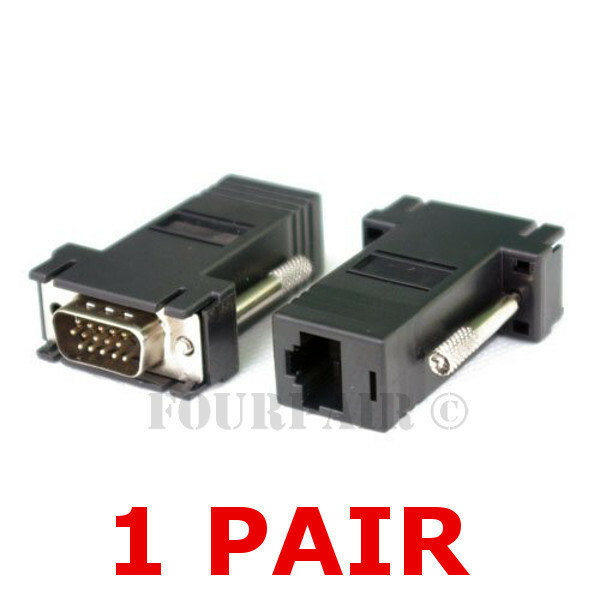

- One Pair of VGA to RJ45 Extenders
- End 1: SVGA (HD15) Male
- End 2: RJ45 Female Port
- Extend your VGA signal up to 100' or more (depending on the resolution)
Connection Advice
- For best results on longer runs use a straight through connection without any couplers/jacks in between. In other words, don't use a wall plate or coupler before connecting to your output source as this could weaken the signal.
- If you are getting no signal or a weak signal on longer runs, you may want to use a CAT5e/6 cable that has solid conductors instead of the stranded ones. Solid conductors will carry a stronger signal over longer distances than stranded cables.
- If you are running your cables through walls make sure to keep your cable away from electrical lines as much as possible. If you can't and you are receiving a weak or distorted signal then you may want to use shielded CAT5e/6 cables to prevent electromagnetic interference.
- If connecting to your TV/Monitor check your manual for maximum resolution of the TV/Monitor. Another way to test the limits is to lower the resolution to 800x600, then gradually increase it. Some TV/Monitor's require a fixed resolution of the video card in order to transmit a signal.
