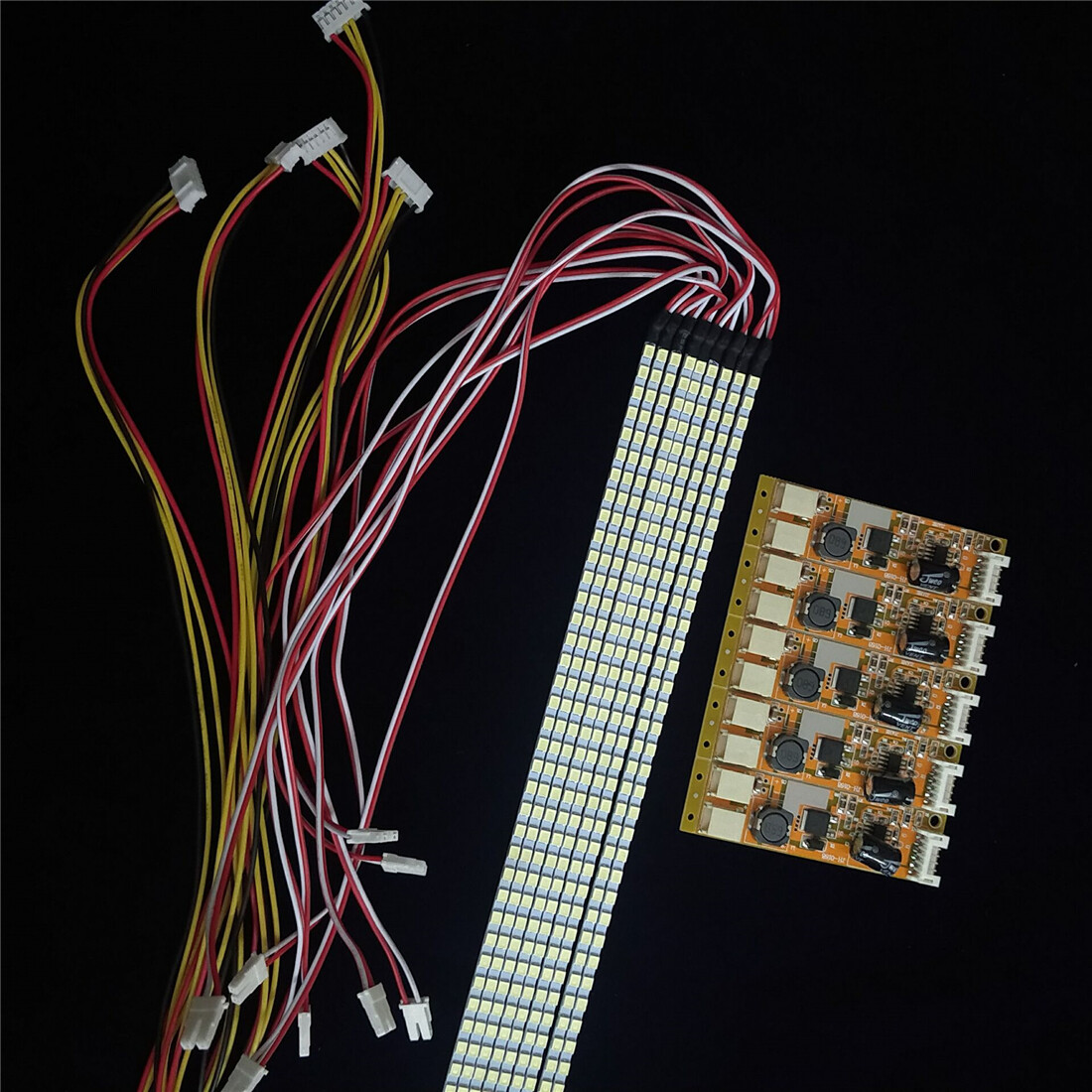

Package includes:
Size:7cm * 2cm (length * width)
LED inverterboard definition:
1-2 redcablepower supplyVCC
3 O/F yellow line switch signal
4 ADJ yellow line brightness control
5-6GND black line ground

Light strip specifications:
Size: 533mm * 4mm * 3mm (length * width * height)
Input voltage: 9V~24V wide voltage

Can be cut by every 3 lamps as a group
Support 15\'\' to 23.6\'\' 24\'\'

[Whythis isa universal type?]You can cut the ledstrip short to fit your CCFL LCD screen.(3 leds as a groupaccording toyour actual requirements.)For example, we usually use 420mm for 19 wide screens. Then we only need to follow the rules of 3leds asa group.Cutthe LED strip to the right length and install it.
