forRaspberry Pi 3B+(3B Plus), Jetson Nano, ASUS Tinker Development Board

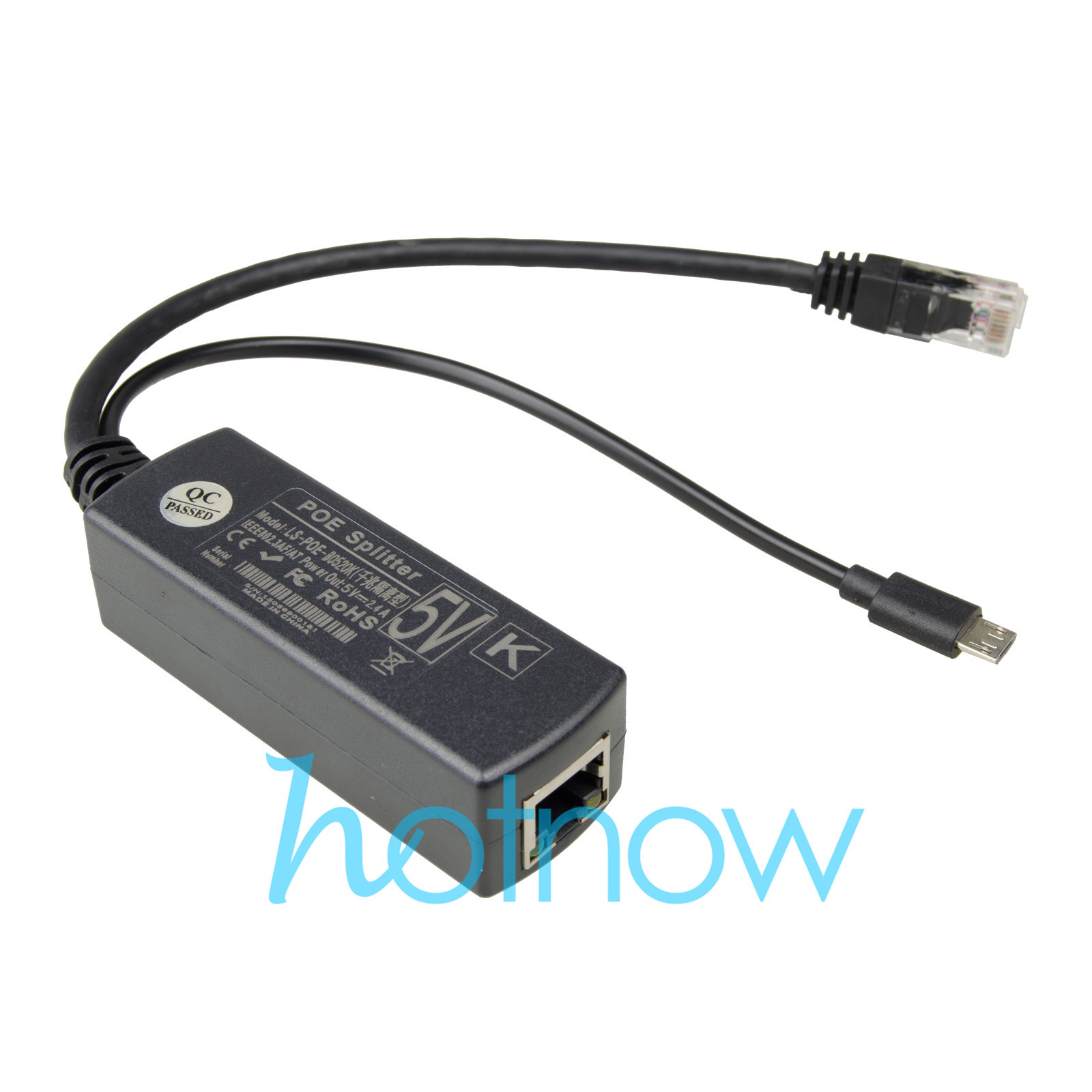

This POE splitter must be connected with POE Switch or 48V POE Injector so that it can supply power to a connected Raspberry Pi or other Micro USB Port IN DC 5V cameras:
CompatibleIEEE 802.3af/802.3at standard POE switches(safty power supply):
8 Ports Ethernet Gigabit 8 PoE Switch 120W
5 Ports Ethernet Gigabit PoE Switch 4 PoE align=\"center\"
this POE Splitter is also suitable for household IP camera and mobile router with Micro USB Plug 5V power Port.
Support the IEEE 802.3af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug
Data Transfer Rate: 10/100/1000Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length:165mm
RJ45 Modular Plug cable length:155mm
Weight : 55g
Storage Temperature:-30℃ ~ 70℃
1.This splitter allows data to input and output through its RJ45 port, but no indicator on this splitter indicates the status of the data transfer.
Only one power indicator shows the working status of the POE.
Item Included:
