2U(Front Access)(Micro-ATX/ITX)(2x3.5\"+2.5\"HDD)(Rackmount Chassis)(D14\" Case)NEW
Price: US $129.95

PLinkUSA / RackBuy

2U Front Access ( 2 x 3.5\" + 2.5\" ) or ( 5 x 2.5\") HDD Bay Rackmount Chassis

USB3.0 / 2,0 (14.17\" Deep) (Micro-ATX / Mini ITX) Server Case

Support Standard ATX PS2 / PS3 size PSU (This list does not include optional power supply)

IPC-2360FBrand NEW

IPC-2360F(PLinkUSA / RackBuy)

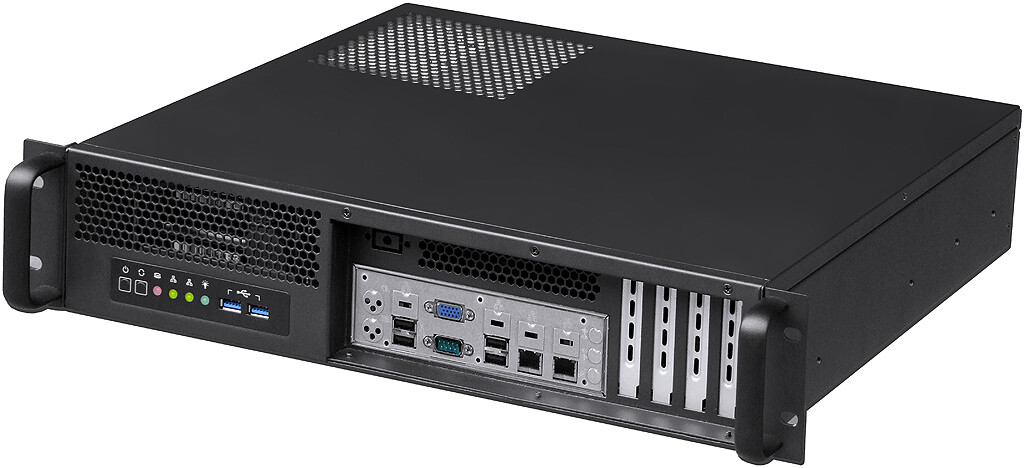

Note: Power Supply, Rail Set and CPU System on the pictures does not included

Multi-core processor era has been the main stream nowadays, the major features of this 2U IPC-2360F chassis are the I/O front-access and front low profile slots design, chassis depth is merely 360mm (14.17\"), and allow maximum five 2.5\" SSD or HDD at 7mm~12.5mm height, also it\'s compliant with the latest 12G SFF-8639 2.5\" SAS SSD interface. The motherboard form factors are compatible with Micro-ATX 9.6\"x9.6\" or Mini ITX 6.7\"x6.7\". Cooling solution for two 80mmx25mm exhaust silent fans at rear panel, the front bezel also equipped with two USB 3.0 ports as standard.

PRODUCT TECHNICAL SPECIFICATIONS

  • Drive capacity: two 3.5\" HDD & one 2.5\" SSD (7mm~9.5mm height compatible)

  • orfive 2.5\" SSD(one 15mm high, four 12.5mm high max., option 25-35-BK x2 required)

  • Drive bay equipped with anti-vibration function, extend storage appliance life

  • Durable strength aluminum alloy die-casting handles

  • TwoUSB 3.0ports at front bezel as standard (USB 2.0 also compatible)

  • Two 80mmx25mm exhaust silent fans at rear panel (fan part#D80SM-12C)

  • Room noise without fan activated is 40dBA, tested by 10cm distance to the running fan is 60dBA (including room noise)

  • Equipped with two channels 10/100base T RJ45 LAN ports at rear panel as standard

  • Compatible motherboard: MicroATX(9.6\"x9.6\"), Mini-ITX(6.7\"x6.7\")

  • Support standard8cm fan versionPS2 power supply (max. psu depth at 140mm) (Power Supply not included)

  • Support 4 slot low profile plugin cards (max. depth 270mm)

  • The main sheet metal constructed by 1.2mm ~ 2.0mm SGCC mechanism

  • Standard paint: scratch-resistant Black textured, no paint at rear panel

  • Chassis dimension: 19\" x 2U x 360mm (14.17\" deep)

  • Package: NW 5.6 KGM, GW 6.1 KGM, 1.65 CUFT (56x49x17cm, single box packed)

  • United States (48 States) Please check with \"Shipping and Payments\"

  • Canada (Buyer is responsibility to pay any duty and brokerage fee)

IPC-2360F(PLinkUSA / RackBuy)

Note: Power Supply, Rail Set and CPU System on the pictures does not included
