SuperLinxs Long Range 50dBm USB WIFI Antennafor 802.11b/g/n
SuperLinxs Long Range 50dBm USB WIFI Antenna 802.11b/g/n
- Our new generation of WIFI Signal Booster, one of the longest range units in the world.
- Extremely long range. Powered by ultra high gain 20dBi antenna and 1000mW WIFI adapter, boost extremely high 50dBm output. More than 20 times longer range than regular WIFI adapter(D-Link, Linksys etc). 5 times the range of Alfa & GSKY 1000mW unit. Connect to your neighbor, even your office blocks away!

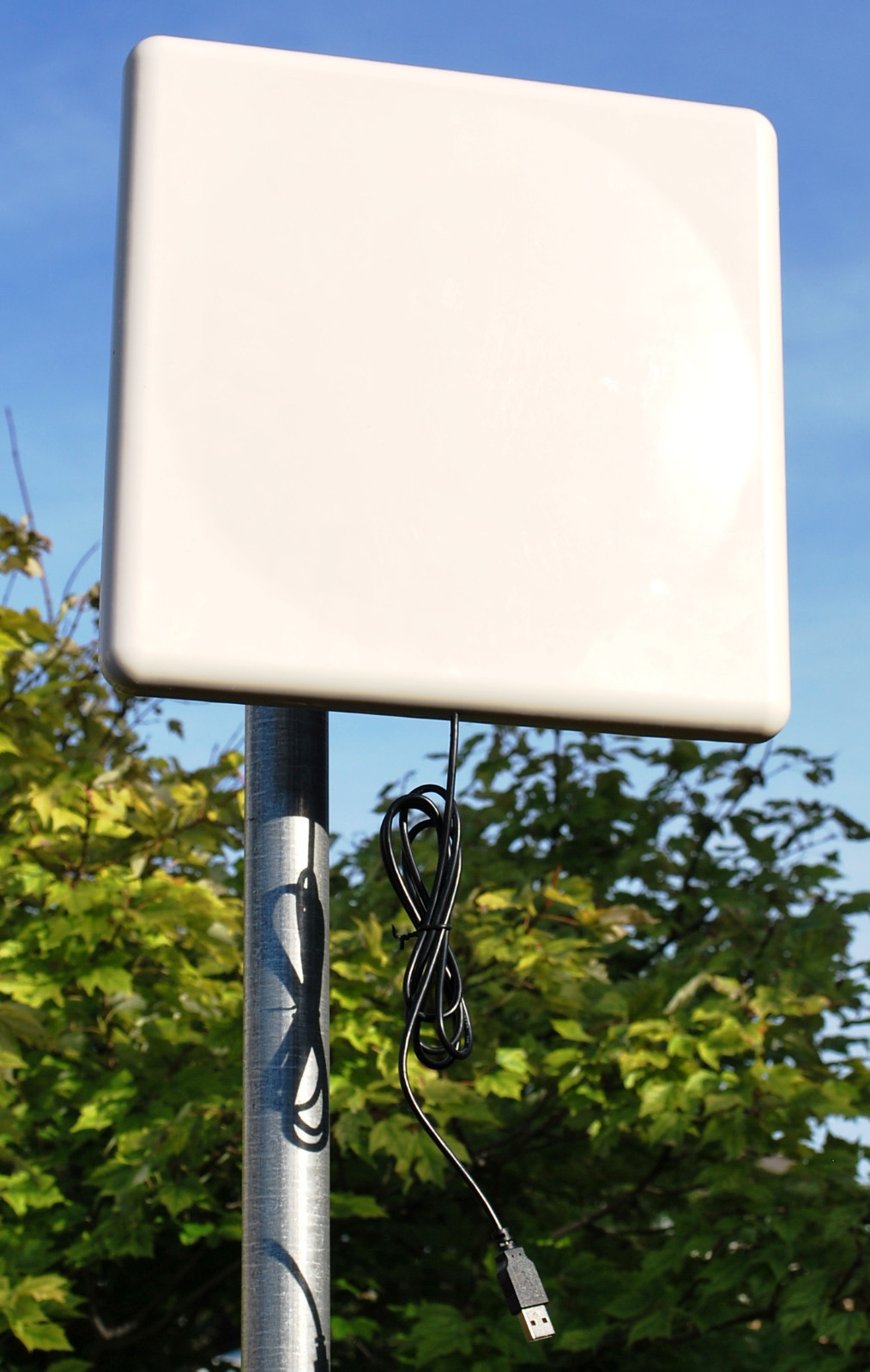

- Easy to mount panel antenna design, free swivel mounting brackets.
- High speed transfer Data rate up to 150Mbps(802.11n), or 54Mbps for 802.11b/g, both at 2.4GHz.
- Detect and connect to FREE Internet signal. Easy to use Wireless Utility software supplied.
- Plug and play. Good support on most of the OS. Drivers for Windows10, 7, 8, Vista, XP,
- Weather-proofed high gain Antenna! Line of sight is the key of WIFI connection, outdoor ability means maximum line of sight, which ensure possible longest range.
- Complete solution! You need nothing else, just plug in, load the driver and point, you are ready to go.
- For receiving end computer only. Function just like the WIFI adapter built-in in the laptop, butwith much longer range.
- Couple with this router , you can build a new WIFI network based on the signal received, then all the WIFI devices such as tablet and smart phone can be used.
- Made in Canada.
This adapter has more than 20 timestransmission range of regular USB adapter at Line of Sight . Inside is a very powerful 802.11b/g/n 1000mW WIFI adapter and a ultra high gain 20dBi 17° H-Beam 17° V-Beam panel antenna. Antenna gain 20dBi plus theWIFIcard TX power 30dBm, total TX power is 50dBm, no cable loss.
Antenna gain is the key for the transmission range. Theoretically every 6dBi gain increase will double the transmission range. Compare to other products in the market, this unit has the highest gain and more than 20 times longer range.
Plug and play, no hassle setup.
This unit is fully weather-proof, ideal for indoor and outdoor using. Outdoor use is very important to long range transmission of 2.4Ghz signal, we recommend you mount it outside to get clear line of sight(Ifuse an active USB extension cord, be sure to seal the USB cable connector with silicone when you use it outdoor).
SuperLinxs UN-DRP17V20-M WIFI USB adapter provides users to launch IEEE 802.11b/g/n wireless network at 150 Mbps in the 2.4GHz band, which is also compatible with IEEE 802.11b/g wireless devices at 54 Mbps. You can configure this adapter with ad-hoc mode to connect to other 2.4GHz wireless computers, or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet. It includes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.
Free swivel mounting hardware included, easily adjust direction.
USB cable comes with the unit is 5 feet. USB extension cable available.Make sure usea USB "active" extension cable (also known as a USB repeater cable). This cable contains active electronics which boost the USB signal for maximum reliability and performance over extended distances.
Plug in the antenna into this router , you can build up a new WIFI wireless network. All the WIFI device including the WIFI smart phone, iPad, TV, game console can get on online wireless. Please note, if use the antenna with the router, maximum cable length is one of the 16' USB repeater cable.
Manufacturer's model number: UN-DRP17V20-M.
Package Contents:
USB Wireless 802.11b/g/n adapter Antenna
CD with user's guide and drivers
Pole swivel mounting hardware
Transmission Range:
Normally when calculating WIFI range, it's based on same power equipment at each end, clear line of sight, no interference from other network. In these ideal situations, this item can reach miles. Unfortunately, environment is always complicated in the real world.
Please remember, line of sight is the key for long range WIFI connection. Couple trees on the way may not affect much, but can't be buildings or woods. Also in the city area, lots of interference from other 2.4 GHz devices, which will greatly decrease the range.
In a typical suburb, this unit can reach around 1/8 ~ 1/4 mile, based on good line of sight to the source WIFI network building(of course source router can't be in the basement etc.), or around 1/2 mile in the countryside. These estimate are based on home router at the other side, if you can use higher power radio or external outdoor antenna, range can be further.
To measure the range ability of a setup, please check the total dBm. It's combines the radio power, antenna gain and cable loss etc together. This combo has 50dBm.
Disclaimer: Range result are based on estimate, you may or may not get it in your application, in some circumstances may beyond it. of the antenna inside
ITEM
Impedance50 Ohm
PolarizationVertical, Linear3dB Horizontal Beamwidth17Degree
3dB Vertical Beamwidth17 Degree
Max. Power Input50 WattsSize12 x12 x 0.5InchRadome MaterialABSCase DesignWater ResistanceTemperature Range-45 to +75 ° C
Radiation Pattern (H-Plane)
Radiation Pattern (E-Plane)
Important facts you should know before offer:
This unit is directional, that means it only cover an narrow angle. When use it, you have to point it to the source with the white plastic side, not the metal side. With the USB cable point to the ground, it is a vertical polarized setup. Turn it 90 degrees, it will become horizontal polarized setup.To avoid possible network setting problem, plug it into the laptop, disable the built-in wireless card of the laptop, install the driver, use it very close to the signal source. Make sure it works, then bring it tothe distance location, try again. Turn the unit to different direction, try to get the best effect. While scan the network, don't more the unit.
Ifyou need aUSB extensioncable, make sure usea USB "active" extension cable (also known as a USB repeater cable). This cable contains active electronics which boost the USB signal for maximum reliability and performance over extended distances. Those passive cable won't work on long length. USB extension cable available in our store.
Range test result is based onsame unit on each end, in clear line of sight. Because every application is different, we can' guarantee the result. For long range link(>1Km, or 0.6 mile), we recommend you install external antenna for the router side.
***See specs sheet below for details*** UNIT 802.11n
IEEE 802.11b/g
USB v1.0/1.1/2.0 Date Transmission RateIEEE 802.11n 150Mbps
IEEE 802.11b/g 54Mbps
IEEE 802.11b 11MbpsInterfaceUSB2.0 compliant with USB 1.1Advanced security features 64/128 bit WEP, WPA and WPA2, TKIP, AESFrequency Range
US, Canada 2.412GHz~2.462 GHz (CH1~CH11)
EU 2.412GHz~2.472GHz (CH1~CH13)
Japan 2.412GHz~2.484GHz (CH1~CH14)AntennasEmbeded 20dBi17 degree H-beamwidth Panel AntennaChipset
Ralink RT3070L
Receiver-Sensitivity
IEEE 802.11g/n
-74dBm @ 54Mbps
-71dBm @ MCS7, HT20
-66dBm @ MCS7, HT40
IEEE 802.11b
-91dBm @ 11Mbps
Transmission Power30dBm+20dBi=50 dBmOS Compatible
Windows XP/2000/Vista/7/8, Linux, Mac
USB Cable Length
5 feet or 1.5 meter
Dimensions12x12x1 (inch) or 31x31x3 cm
Weight2 LB or 0.91kg(no mounts)
2.5 LB or 1.14kg(with mounts)
TemperatureOperating: 0°C ~ +50°C
Storage : -10°C ~ +65°C
Question & Answer
Q: "Do I need a wireless card in the computer to use this antenna?"
A: No, this is a completed solution. This unit is a high gain antenna and the 1000mW wireless card combo. So all your need is a spare USB port on the computer.
Q: " My laptop has a built-in WIFI adapter, can this antenna boost it?"
A: No, this unit has it's own WIFI adapter. Please disable the built-in card to use this unit.
Q: "I have three computers, iPad and smart phone in my house, how can I use this antenna for all of them?"
A: You only need to buy this router . After setup, you may setup a new WIFI network backboned from the antenna.
Q: "Can Iconnect this antennato the router?"
A: No,it's for the computer only, you can't connect it directly on the conventional router. Only this specially designed router can be plugged directly in.We can supply directional antenna, sector antenna or Omni antenna and the coax cabletothe router.
Q: "What's the chipset of the wireless card and who is the manufacturer?"A:The chipset is RT3070L from Ralink, we can provide the driver for most of the popular OS.Q: "Which active USB cable should I choose, the USB 1.1 or USB 2.0?"A: The USB cable with the unit is about5 feet. If you need longer cable, you may purchase USB active repeater cable .Each cable is 16 or 32 feet.We do offer shipping discount if you buy it with the unit, pay only $3.5 shipping charge for the cable on top of the antenna shipping cost.Make sure usea USB "active" extension cable (also known as a USB repeater cable). This cable contains active electronics which boost the USB signal for maximum reliability and performance over extended distances.You may use up to2 of the USB2.0 32' cables(64 feet), or2 of the USB2.0 16' cables(32 feet), or 3 of the USB1.1 cables(48 feet). That's based on our test.Please note, if use the antenna with the repeater router , maximum cable length is one of the 16' USB repeater cable.
If using these cables outdoor, please seal the USB connectors with electric tape and outdoor silicone to prevent moisture going in.The WIFIantenna is USB 2.0, soyou should use a USB2.0 cable, it provides higher data speed. On the other hand, USB1.1 cable is fast enough if only use for Internet, the top speed of USB1.1 is 12Mbps is faster than most DSL or cable Internet service.We recommend our cables. According our test, lots of other brand cables doesn't work well with our unit. Q: "Can I installthis antenna for my desktop computer?"A: Yes, it'sfor any computer, as long as it has a spare USB port.© 2000-2022 SuperLinxs Inc.
