This is a Premium Capacitor rE-Cap Kit for the Amiga 1080 Monitor - Revised Kit

I offer these kits to simplify the process of obtaining the necessary components to do a DIY capacitor replacement

If you are looking at this sale, you likely realize that Electrolytic capacitors have a finite life, most Consumer Grade electrolytics including modern units have engineered lives of 1000-5000 hours at which point they begin to fail, which includes changing values, increased electrical leakage, increased ESR or outright failure such as opening up or shorts, many times these failures are cummulativeand result in the gradual loss of performance.This upgrade will improve the function and reliability of your equipment andextend the usefull Life. Faulty capacitors are the cause of a significant amount of problems with electronic equipment and I have repaired hundreds of units in which the only fault was one or 2 defective Electrolytic capacitors. Replacing all out of spec capacitors is recommended and often restores the equipment to like new performance. Failure to replace them can result in failure/stress to other components such as transformers, transistors and diodes, many of which are hard to replace due to lack of suitable components. Recapping is a good investment andanimmensely satisfying project. Work slow, have fun and prepare to be impressed with your work.

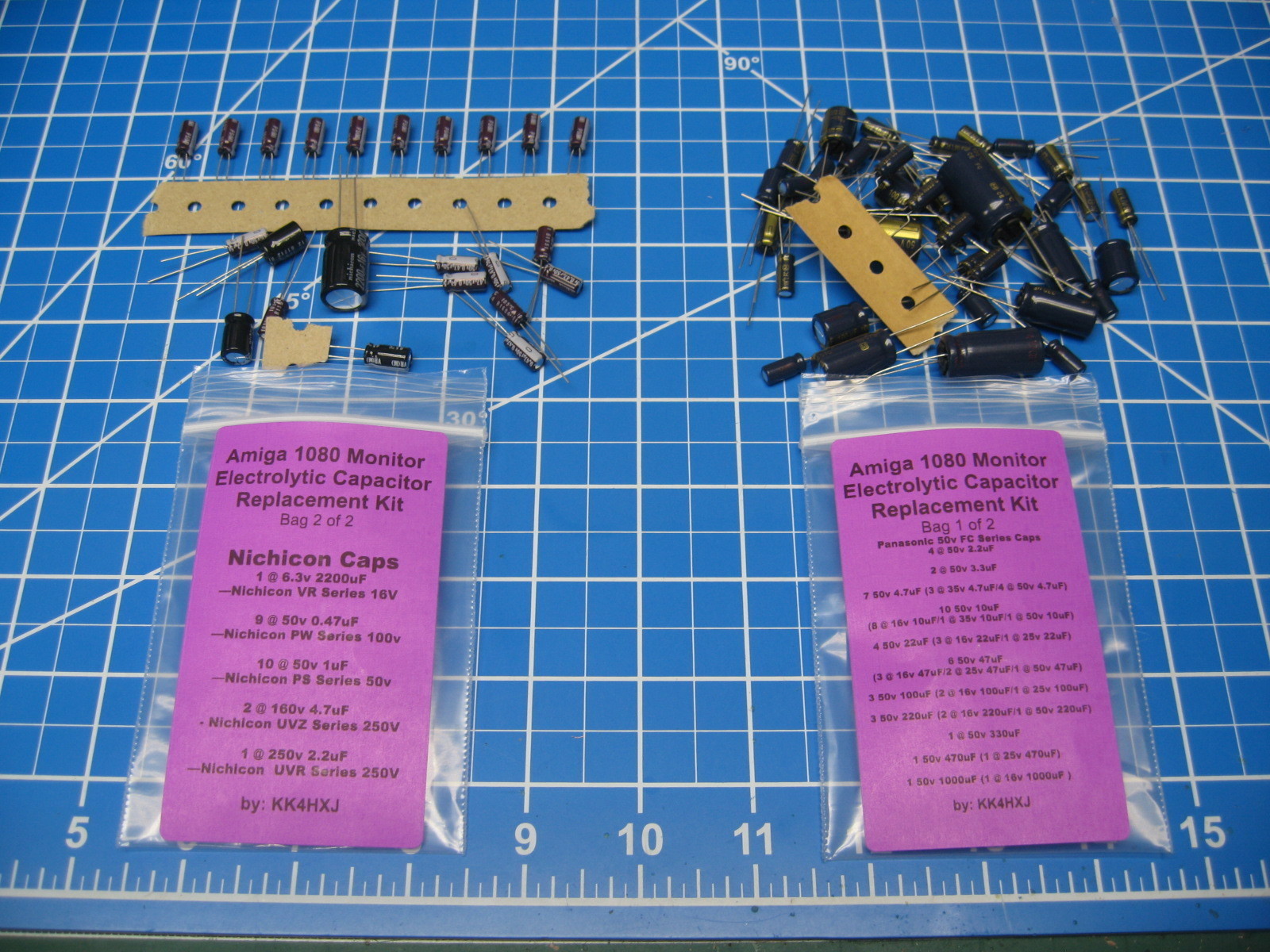

Kit includes the following values of capacitors:

Panasonic FC Series Caps 25 & 50Volts
(replacing all lower voltage rated caps)4 @ 50v 2.2uF2 @ 50v 3.3uF7 50v 4.7uF (3 @ 35v 4.7uF/4 @ 50v 4.7uF)10 50v 10uF (8 @ 16v 10uF/1 @ 35v 10uF/1 @ 50v 10uF)4 50v 22uF (3 @ 16v 22uF/1 @ 25v 22uF)6 50v 47uF (3 @ 16v 47uF/2 @ 25v 47uF/1 @ 50v 47uF)3 50v 100uF (2 @ 16v 100uF/1 @ 25v 100uF)2 25v 220uF (2 @ 16v 220uF)1 50v 220uF (1 @ 50v 220uF)1 @ 50v 330uF1 25v 470uF (1 @ 25v 470uF)1 25v 1000uF (1 @ 16v 1000uF )Misc Caps
(Original voltage on left - supplied voltage on right)1 @ 6.3v 2200uF—Nichicon or Panasonic 25V 9 @ 50v 0.47uF—Wurth ATG5 Series 50v10 @ 50v 1uF—Nichicon VY, LD or PS Series 50v2 @ 160v 4.7uF - SC or Nichicon 160/250V2 @ 160v 33uF- SC 160V2 @ 160v 33uF- SC 160V1 @ 250v 2.2uF NP/BP Non-Polarized —SC Axial Cap to be installed vertically like a Radial1 @ 200v 470uF- 470uF SC 200V Snap-In Style Cap

(70 total capacitors) Click on the store categories on the left side of the screen for all of my Capacitor and Capacitor Kit Inventory!I Ship First Class with tracking tomeet Guidelines

U.S. Shipper - Ships immediately

I Combine shipping on all sales - Please add all items to shopping cart before checkout - usually charges the correct shipping - if you order more than 1 item and does not calculate combined shipping correctly, you can either wait for an invoice with the total, or go ahead and pay for all items with calculated shipping and I will refund you any overages, based upon the actual cost of shipping! - In no case will shipping ever exceed $7.20

Thanks for looking and 73\'s from Kentcraft, LLC & KK4HXJ store

.
