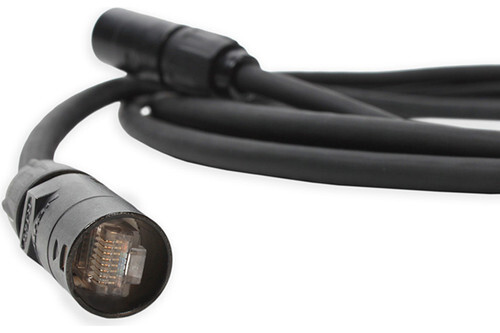

Blue Cable Long with ethercom 2-RJ45 "Attached" Terminated on the end of Cable.
Product Overview
Suitable Applications
HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE
Construction DetailsCONDUCTORSizeStrandingMaterial23 AWGSolidBC - Bare CopperINSULATIONMaterialNom. ThicknessColor CodeFEP - Fluorinated Ethylene Propylene0.010 in (0.25 mm)Western Electric (Modified)OUTER SHIELDShield TypeMaterialCoverageDrainwire TypeNotesTapeBi-Laminate (Alum+Poly)100%26 AWG (Solid) TCTwo drain wires applied helically for added flexibilityOUTER JACKETMaterialNom. ThicknessNom. DiameterRipcordPVC - Polyvinyl Chloride0.018 in (0.46 mm)0.270 inYes
Overall Cable Diameter (Nominal)
0.270 in
Electrical CharacteristicsELECTRICALSNom. Conductor DCRNom. Velocity of Prop.Max. Current22.7 Ohm/1000ft72%3.1 Amps per Conductor at 25ºCVOLTAGEUL Voltage Rating300 VMechanical CharacteristicsTEMPERATUREUL to +90°C0°C To +75°C-20°C to +75°CBEND RADIUSStationary Min.Installation Min.2.7 in (69 mm)2.7 in
Max. Pull Tension
45 lbs (20 kg)
Bulk Cable Weight
36 lbs/1000ft
Standards and Compliance
Environmental Suitability
Indoor - Plenum, Indoor, Outdoor
Flammability / Reaction to Fire
NFPA 262 (UL 910), FT6
CPR Compliance
CPR Euroclass: Eca
NEC / UL Compliance
Article 800, CMP-LP (0.6A), CL3P
CEC / C(UL) Compliance
CMP
IEEE Compliance
POE per 802.3af & POE+ 802.3at-2009
ISO/IEC Compliance
11801 ed 2.2 (2011) Class D
European Directive Compliance
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
UK Regulation Compliance
UKCA Mark
APAC Compliance
China RoHS II (GB/T 26572-2011)
Non-Plenum Number
2183R
Product Notes
Notes
Values Above 100 MHz are for Engineering Information Only. Print Includes Descending Footage Markings.
History
Update and Revision
Revision Number: 0.411 Revision Date: 04-14-2023
