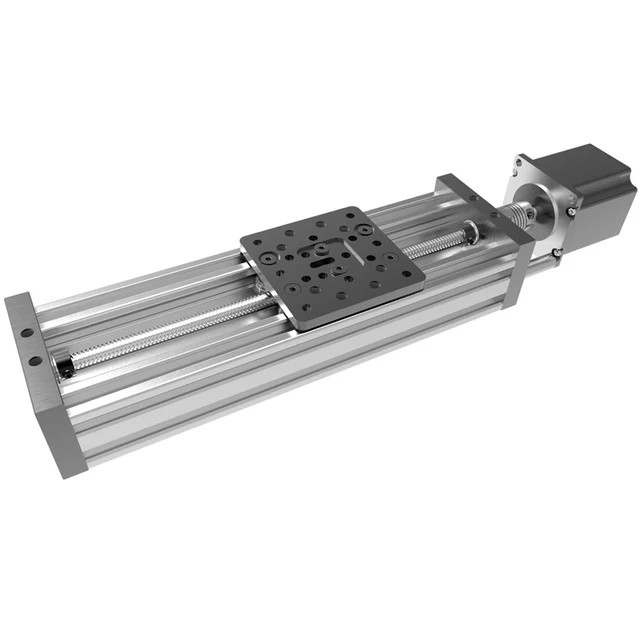

Specifications:Leads Screw DrivenTravel distance:250mm is ~6″ (150mm)500mm is ~16″ (400mm)1000mm is ~35″ (900mm)Accuracy: 0.001″ ~0.003″ (0.05mm ~0.10mm)Accuracy Positioning: 0.091mmMax Force: 26lb (115N)Max Speed: 8000 mm/minIf you need customized length please contact us to get a quote.Bundle Includes:Mechanical Parts with a 1.26N.m or 2.45N.m nema 23 stepper motor-high torque series.C-Beam Linear Actuator Bundle Kit T8 Lead Screw Kit with 1.26Nm or 2.45Nm Motor❤️+ Welcome to This Seller, Enjoy Your Happy Shopping!250mm/500mm/1000mm C-Beam Linear Actuator with 1.26N.m or 2.45N.m Nema23 Stepper Motor

TheC-Beam Actuator Kitis an actuator driven by our ACME lead screw.

The kit is an easy way to get all the pieces needed for the build. Sizes available are250mm, 500mm, 1000mm.

This C-Beam Linear Actuator will provide you with access to utilize the power of beams in your Builds!

Specifications:

• Leads Screw Driven

• Travel distance:

• 250mm is ~6″ (150mm)

• 500mm is ~16″ (400mm)

• 1000mm is ~35″ (900mm)

• Accuracy: 0.001″ ~0.003″ (0.05mm ~0.10mm)

• Accuracy Positioning: 0.091mm

• Max Force: 26lb (115N)

• Max Speed: 8000 mm/min

If you need customized length please contact us to get a quote.

Bundle Includes:

• Mechanical Parts with a 1.26N.m or 2.45N.m nema 23 stepper motor-high torque series.

or Linear Rail-250mm/500mm/1000mm (Optional)Note:

• Extrusion is new with tapped

• This is the unassembled kit, you need to do assembly by yourself.

This kit combines the unique C-Beam linear rail with the C-Beam end mounts and gantry plate, plus other v-slot components, to make a simple linear actuator.

This linear actuator can be used on a CNC machine, 3D printer, or even as a compact camera slider.

C-Beam has added strength through a C-Shape profile, and utilise the V-Slot system on all sides. This allows you to use V-Slotand C-Beam hand in hand on the same machine.

In this linear actuator kit, an ACME Lead screw system is used, driven by an optional NEMA23 stepper motor. This combination gives you a lot of power and precise movements.The linear actuator is available in standard lengths of 250/500/1000mm. If you need it to a precise size, other than the standard lengths, for an additional cost, our cutting service is available.The length of the linear actuator is not the travel distance. The travel distance is calculated by subtracting 100mm from the length.The standard lengths above will have travel distances of 150/400/900mm.
